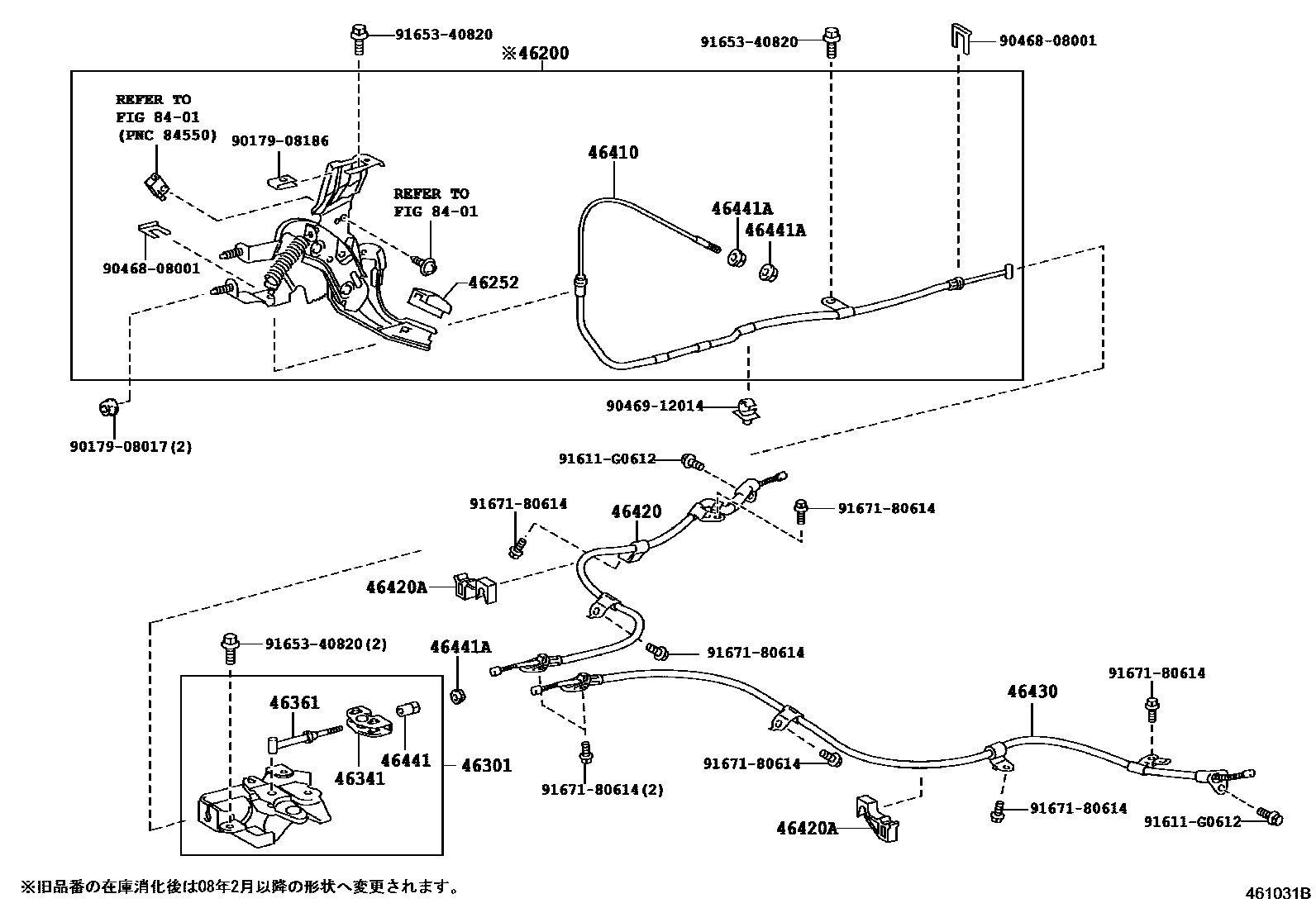

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-52020iNCP8#200309-200802

sub46210-52120

sub46410-52020

sub90179-06299

sub90179-08186

sub90468-08001

main46210-52120iNCP8#200802-201008

46252PAD, PARKING PEDAL

main46252-52010iNCP8#200309-201008

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-52010iNCP8#200309-201506

46341EQUALIZER, PARKING BRAKE

main46341-52010iNCP8#200309-201008

46361ROD, PARKING BRAKE PULL

main46361-52020iNCP8#200309-201008

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-52020iNCP8#200309-201008

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52120iNCP81200309-201506

main46420-52130iNCP85200309-201409

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46421-52010iNCP8#200309-201008

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52120iNCP81200309-201506

main46430-52130iNCP85200309-201409

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iNCP8#200309-201008

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iNCP8#200309-201008

8401

9017908017

main90179-08017

9017908186

main90179-08186

9046808001

main90468-08001

9046912014

main90469-12014

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

19 parts on this diagram · 4 diagrams in section
