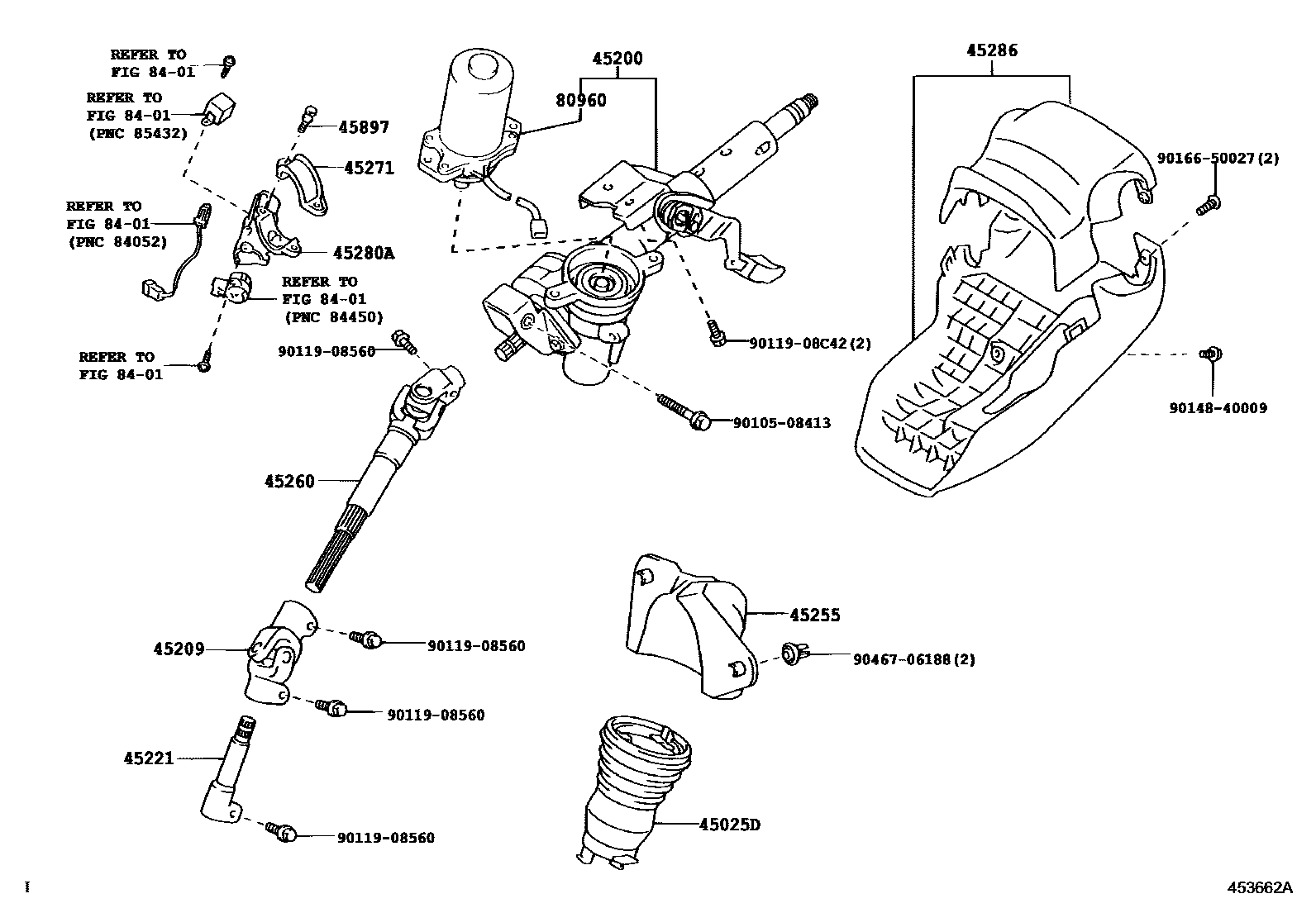

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52020iNCP81200309-201008

main45025-52100iNCP85200309-201409

45200POST ASSY, STEERING

main45200-52070iNCP8#200309-200409

sub45200-52071

main45200-52071iNCP8#200409-201008

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52020iNCP8#200309-201008

45221SHAFT, STEERING INTERMEDIATE

main45297-52020iNCP81200309-201005

sub45297-52070

main45297-52030iNCP85200309-201005

sub45297-52090

main45297-52070iNCP81201006-201008

main45297-52090iNCP85201006-201409

45255PLATE, STEERING COLUMN HOLE COVER

main45255-52010iNCP81200309-201008

main45255-52030iNCP85200309-201409

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52120iNCP81200309-200508

sub45260-52121

main45260-52121iNCP81200509-201008

main45260-52130iNCP85200309-200508

sub45260-52131

main45260-52131iNCP85200509-201409

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iNCP8#200309-201008

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-52060iNCP8#200309-201506

45286COVER, STEERING COLUMN

main45286-52922-A0iNCP8#..G,X200309-201506

IVORY,TRIM0#

sub45286-52933

main45286-52922-B0iNCP8#..DICE,DICEG,X201106-201506

DK.GRAY,TRIM1#

sub45286-52933

main45286-52922-B1iNCP8#..X200605-201008

GRAY,TRIM1#

sub45286-52933

main45286-52922-B1iNCP8#200309-200605

GRAY,TRIM9#

sub45286-52933

main45286-52933-A0iNCP8#200711-200712

IVORY,TRIM0#

sub45286-52922

main45286-52933-B1iNCP8#..X200711-200712

GRAY,TRIM1#

sub45286-52922

45897BOLT, STEERING LOCK SET

main45897-12020iNCP8#200309-201008

80960MOTOR ASSY, POWER STEERING

main80960-52020iNCP8#200309-200409

sub80960-52021

main80960-52021iNCP8#200409-201008

8401

9010508413

main90105-08413

9011908560

main90119-08560

9011908C42

main90119-08C42

9014840009

main90148-40009

9016650027

main90166-50027

9046706188

main90467-06188

18 parts on this diagram · 2 diagrams in section
