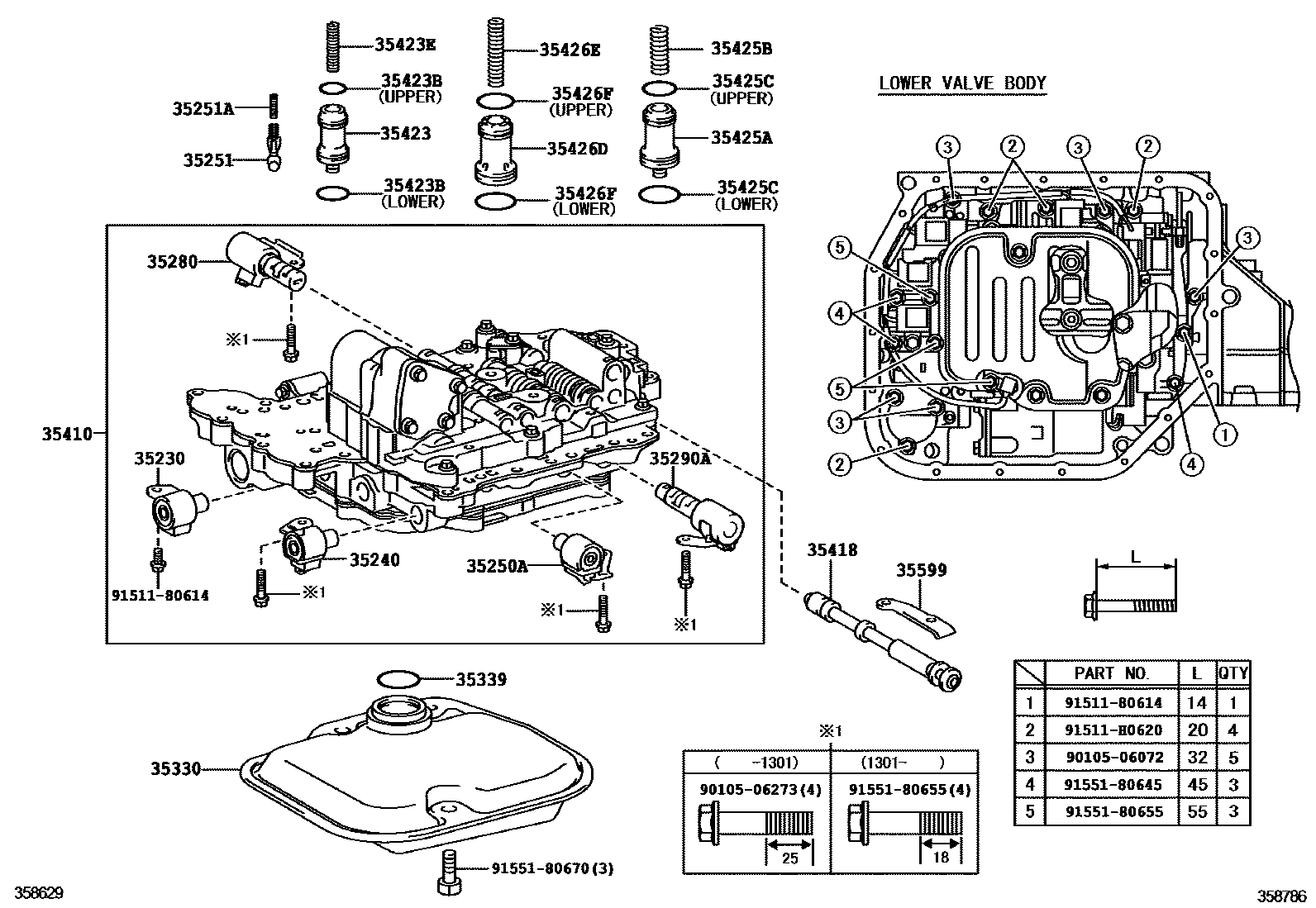

VALVE BODY & OIL STRAINER (ATM)
35250ASOLENOID ASSY, TRANSMISSION, NO.3
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35280SOLENOID ASSY, LOCK UP CONTROL
35290ASOLENOID ASSY, LINE PRESSURE CONTROL
35410BODY ASSY, TRANSMISSION VALVE
35418VALVE, MANUAL
35423PISTON, B-2 ACCUMULATOR
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
35423ESPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)
35425APISTON, C-2 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
35426DPISTON, C-3 ACCUMULATOR
35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
35426FRING, O (FOR C-3 ACCUMULATOR PISTON)
35599COVER, MANUAL DETENT SPRING
9010506072
main90105-06072
9010506273
main90105-06273
9151180614
main91511-80614
91511H0620
main91511-H0620
9155180645
main91551-80645
9155180655
main91551-80655
9155180670
main91551-80670
28 parts on this diagram · 2 diagrams in section
