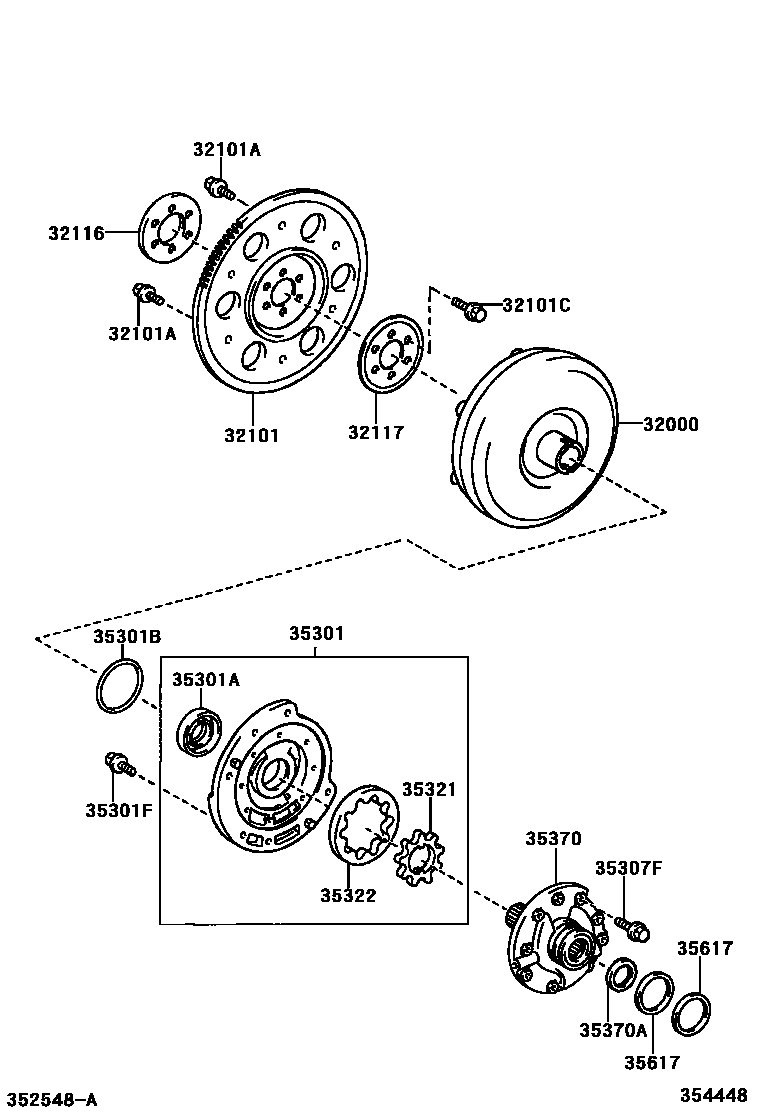

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-52040iNCP85200309-200612

sub32000-52041

main32000-52041iNCP85200612-201409

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52021iNCP85200309-201409

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iNCP85200309-200810

main90109-08113iNCP85200404-201008

main90109-08113iNCP85201106-201409

main90119-08269iNCP85200309-200810

main90119-08498iNCP85200404-201008

main90119-08498iNCP85201106-201409

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNCP85200309-201409

main90105-10048iNCP85200605-201003

main90105-A0022iNCP85200605-201003

32116SPACER, DRIVE PLATE, FRONT

main32116-52030iNCP85200309-201409

32117SPACER, DRIVE PLATE, REAR

main32117-52030iNCP85200309-201409

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-52040iNCP85200309-201409

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38064iNCP85200309-201409

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-52010iNCP85201401-201409

main90301-99124iNCP85200309-201312

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08301iNCP85200309-201409

35307FBOLT (FOR STATOR SHAFT)

main90148-60027iNCP85200309-201409

35321GEAR, FRONT OIL PUMP DRIVE

main35321-52060iNCP85200309-201409

main35321-52070iNCP85200309-201409

main35321-52080iNCP85200309-201409

main35321-52090iNCP85200309-201409

main35321-52100iNCP85200309-201409

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-52060iNCP85200309-201409

main35322-52070iNCP85200309-201409

main35322-52080iNCP85200309-201409

main35322-52090iNCP85200309-201409

main35322-52100iNCP85200309-201409

35370SHAFT ASSY, STATOR

main35370-52030iNCP85200309-200512

sub35370-52070

main35370-52070iNCP85200601-201409

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-26003iNCP85200309-201409

35617RING, CLUTCH DRUM OIL SEAL

main35613-52010iNCP85200309-200611

sub35613-52020

main35613-52020iNCP85200612-201409

16 parts on this diagram · 1 diagram in section
