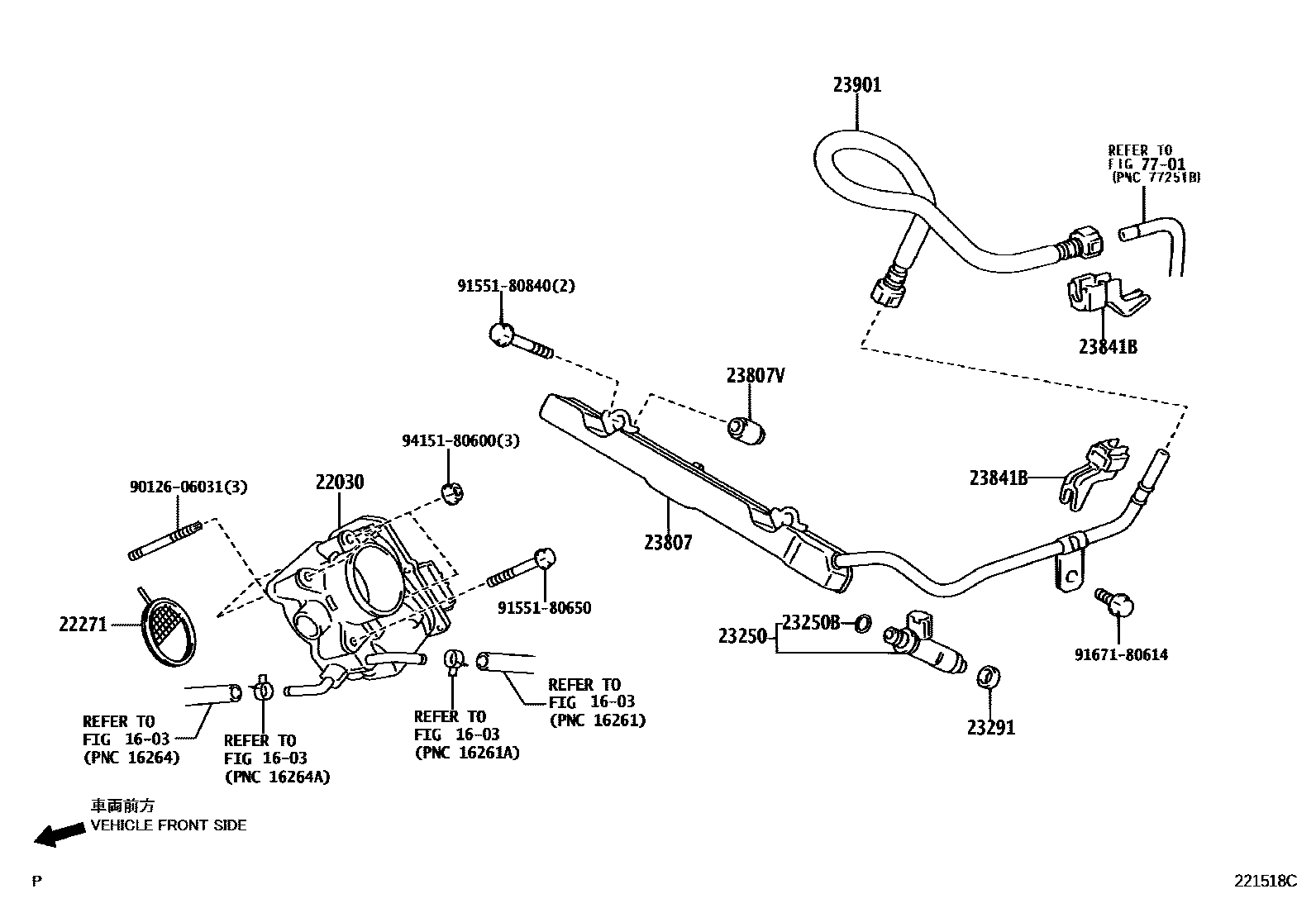

FUEL INJECTION SYSTEM

0001 1 0002 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i1NZFE..NCP81200309-201008

22271GASKET, THROTTLE BODY

main22271-21050i1NZFE..NCP85200309-201409

main22271-21060i1NZFE..NCP81200309-201008

23250INJECTOR ASSY, FUEL

main23209-21020i1NZFE..NCP85200309-201409

main23209-21040i1NZFE..NCP81200309-201008

sub23209-21120

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i1NZFE..NCP8#200309-200607

main90301-07037i1NZFE..NCP8#200607-201008

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i1NZFE..NCP8#201107

main23291-41010i1NZFE..NCP8#200309-201107

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21010i1NZFE..NCP85200309-200612

sub23807-21011

main23807-21021i1NZFE..NCP85200612-201409

main23807-21030i1NZFE..NCP81200309-201410

sub23807-21031

main23807-21031i1NZFE..NCP81201411

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010i1NZFE..NCP8#200309-201008

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NZFE..NCP85200607-201506

main23841-28010i1NZFE..NCP85200309-200606

23901TUBE SUB-ASSY, FUEL

main23901-21060i1NZFE..NCP85200309-201409

main23901-21070i1NZFE..NCP81200309-201506

7701

9012606031

main90126-06031

9155180650

main91551-80650

9155180840

main91551-80840

9167180614

main91671-80614

9415180600

main94151-80600

16 parts on this diagram · 2 diagrams in section
