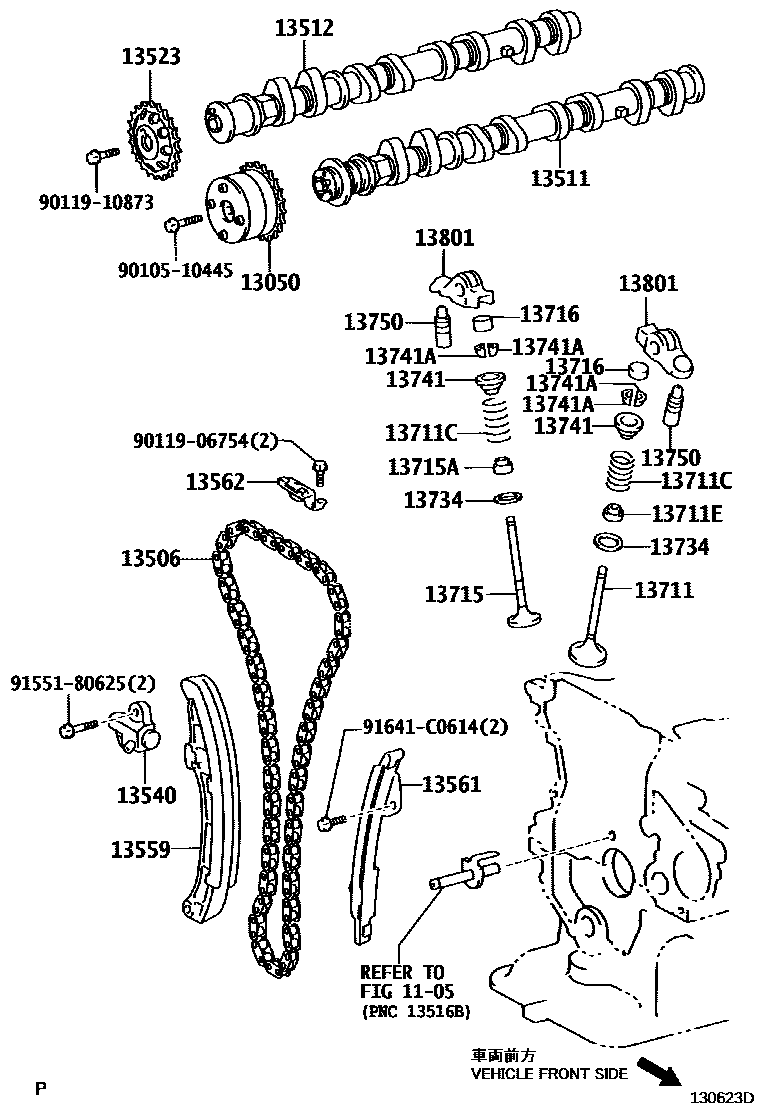

CAMSHAFT & VALVE

0001 1 0002 1

1105

13050GEAR ASSY, CAMSHAFT TIMING

main13050-21040i1NZFE..NCP85200309-200602

sub13050-21041

main13050-21041i1NZFE..NCP85200602-201409

main13050-21060i1NZFE..NCP81200309-201204

sub13050-21061

main13050-21061i1NZFE..NCP81201204

13506CHAIN SUB-ASSY

main13506-21020i1NZFE..NCP85200309-201110

sub13506-21050

sub13506-40010

main13506-21050i1NZFE..NCP85201110-201409

main13506-21060i1NZFE..NCP81200309-201202

sub13506-21061

main13506-21061i1NZFE..NCP81201202

13511CAMSHAFT

main13501-21030i1NZFE..NCP85200309-201409

main13501-21050i1NZFE..NCP81200309-200407

main13501-21051i1NZFE..NCP81200407-201111

sub13501-21052

main13501-21052i1NZFE..NCP81201111

13512CAMSHAFT, NO.2

main13502-21030i1NZFE..NCP85200309-200401

sub13502-21031

sub13523-22020

main13502-21031i1NZFE..NCP85200401-201409

main13502-21040i1NZFE..NCP81200309-200407

main13502-21041i1NZFE..NCP81200407-201111

sub13502-21042

main13502-21042i1NZFE..NCP81201111

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-21020i1NZFE..NCP85200309-200401

main13523-22020i1NZFE..NCP85200309-201008

13540TENSIONER ASSY, CHAIN, NO.1

main13540-21020i1NZFE..NCP8#200309-201008

13559SLIPPER, CHAIN TENSIONER

main13559-21010i1NZFE..NCP8#200309-201311

sub13559-21030

main13559-21030i1NZFE..NCP8#201311

sub13559-21031

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-21010i1NZFE..NCP85200309-201311

sub13561-21040

main13561-21020i1NZFE..NCP81200309-201008

main13561-21040i1NZFE..NCP85201311-201409

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-21010i1NZFE..NCP81200309-201008

13711VALVE, INTAKE

main13711-21010i1NZFE..NCP85200309-201409

main13711-21040i1NZFE..NCP81200309-201008

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-27040i1NZFE..NCP85201207-201409

main90501-32053i1NZFE..NCP81200309-201008

main90905-01049i1NZFE..NCP85200309-201207

sub90501-27040

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02093i1NZFE..NCP85200309-201409

main90913-02101i1NZFE..NCP81200309-201008

13715VALVE, EXHAUST

main13715-21010i1NZFE..NCP85200309-201409

main13715-21040i1NZFE..NCP81200309-201008

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02092i1NZFE..NCP85200309-201409

sub90913-02128

main90913-02112i1NZFE..NCP81200309-201506

13716CAP, VALVE STEM

main13716-75020i1NZFE..NCP81200309-201008

13734SEAT, VALVE SPRING

main13734-62020i1NZFE..NCP81200309-201008

main13734-74010i1NZFE..NCP85200309-201409

13741RETAINER, VALVE SPRING

main13741-20020i1NZFE..NCP81200309-200508

sub13741-20021

main13741-20021i1NZFE..NCP81200508-201008

main13741-22021i1NZFE..NCP85200309-201409

13741ALOCK, VALVE SPRING RETAINER

main90913-03028i1NZFE..NCP81200309-201008

main90913-03031i1NZFE..NCP85200309-201409

13750ADJUSTER ASSY, VALVE LASH

main13750-0W030i1NZFE..NCP81200309-201006

sub13750-21010

sub13750-31030

sub13750-75020

main13750-21010i1NZFE..NCP81201006-201008

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-23011i1NZFE..NCP81200309-201007

main13801-47010i1NZFE..NCP81201007-201008

sub13801-36020

9010510445

main90105-10445

9011906754

main90119-06754

9011910873

main90119-10873

9155180625

main91551-80625

91641C0614

main91641-C0614

26 parts on this diagram · 2 diagrams in section
