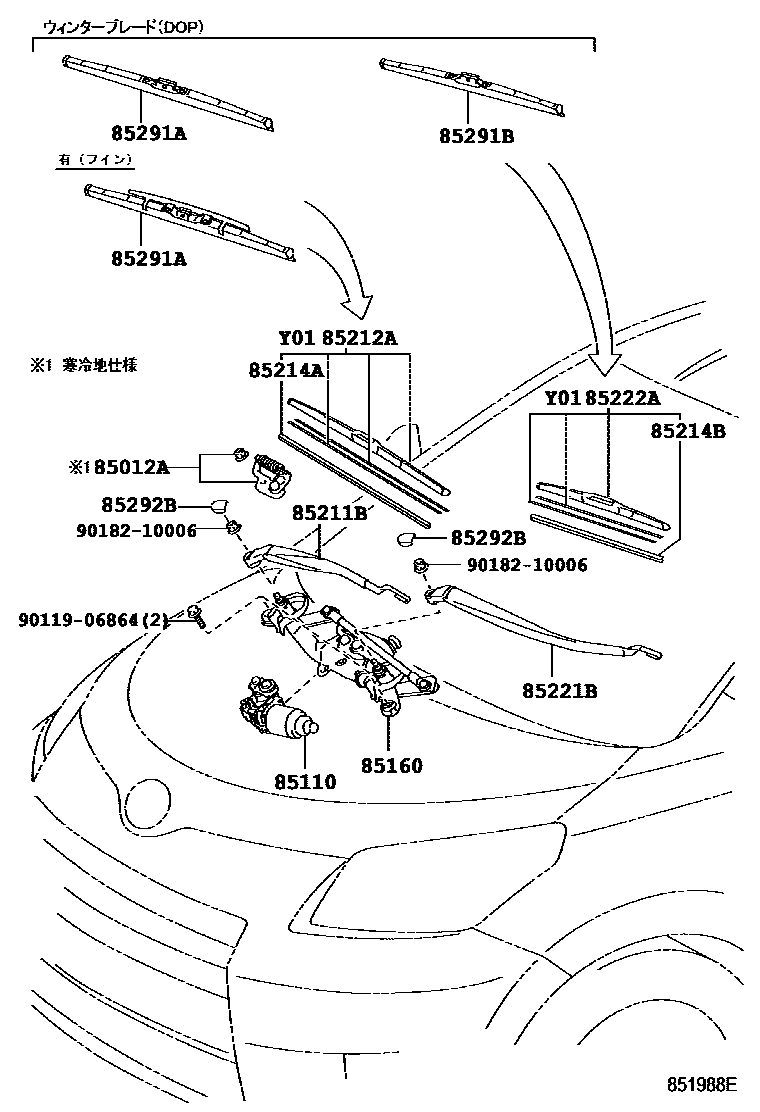

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52490iNCP11#,ZSP110..CBU200707

85160LINK ASSY, WINDSHIELD WIPER

main85150-52360iNCP11#,ZSP110..CBU200707

85211BARM, FRONT WIPER, RH

main85211-52320iNCP11#,ZSP110..CBU200707

85212ABLADE, FR WIPER, RH

main85212-52170iNCP11#,ZSP110..CBU200707

85214ARUBBER, WIPER, RH

main85214-30380iNCP11#,ZSP110..CBU200707

85214BRUBBER, WIPER, LH

main85214-68030iNCP11#,ZSP110..CBU200707

85221BARM, FRONT WIPER, LH

main85221-52320iNCP11#,ZSP110..CBU200707

85222ABLADE, FR WIPER, LH

main85222-52160iNCP11#,ZSP110..CBU200707

85291ABLADE, FRONT WIPER, WINTER, RH

85291BBLADE, FRONT WIPER, WINTER, LH

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iNCP11#,ZSP110..CBU200707

9011906864

main90119-06864

9018210006

main90182-10006

14 parts on this diagram · 1 diagram in section
