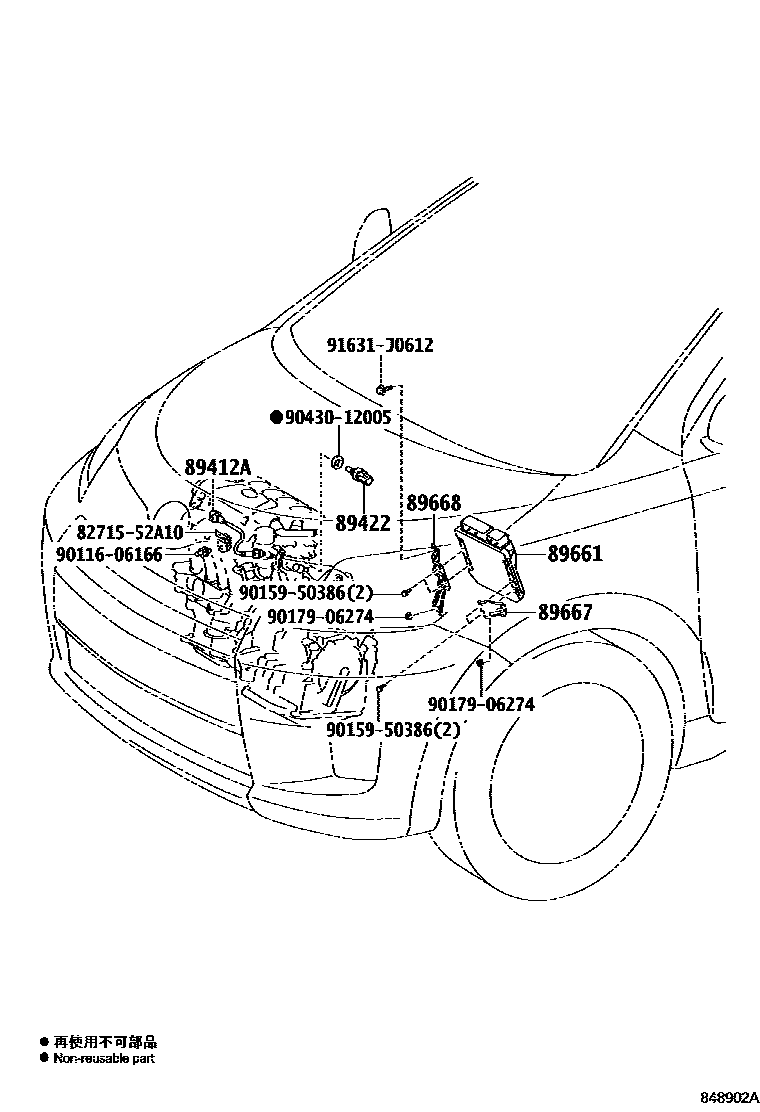

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-35020iNCP11#..CBU200707

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNCP11#,ZSP110..CBU200707

89661COMPUTER, ENGINE CONTROL

main89661-52F50iNCP110..CBU200707-200910

main89661-52F60iNCP115..CBU200707-201008

main89661-52F91iZSP110200707-201008

main89661-52P80iNCP110..CBU200910-201008

main89661-52T10iNCP110..CBU201008-201107

sub89661-52T11

main89661-52T11iNCP110..CBU201108-201206

main89661-52T20iNCP115..CBU201008-201107

sub89661-52T21

main89661-52T21iNCP115..CBU201108-201206

main89661-52Y00iNCP110..CBU201206

main89661-52Y10iNCP115..CBU201206

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52190iNCP11#,ZSP110..CBU200707

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52210iNCP11#,ZSP110..CBU200707

8271552A10BRACKET,WIRING HARNESS CLAMP

main82715-52A10

9011606166

main90116-06166

9015950386

main90159-50386

9017906274

main90179-06274

9043012005

main90430-12005

91631J0612

main91631-J0612

11 parts on this diagram · 2 diagrams in section
