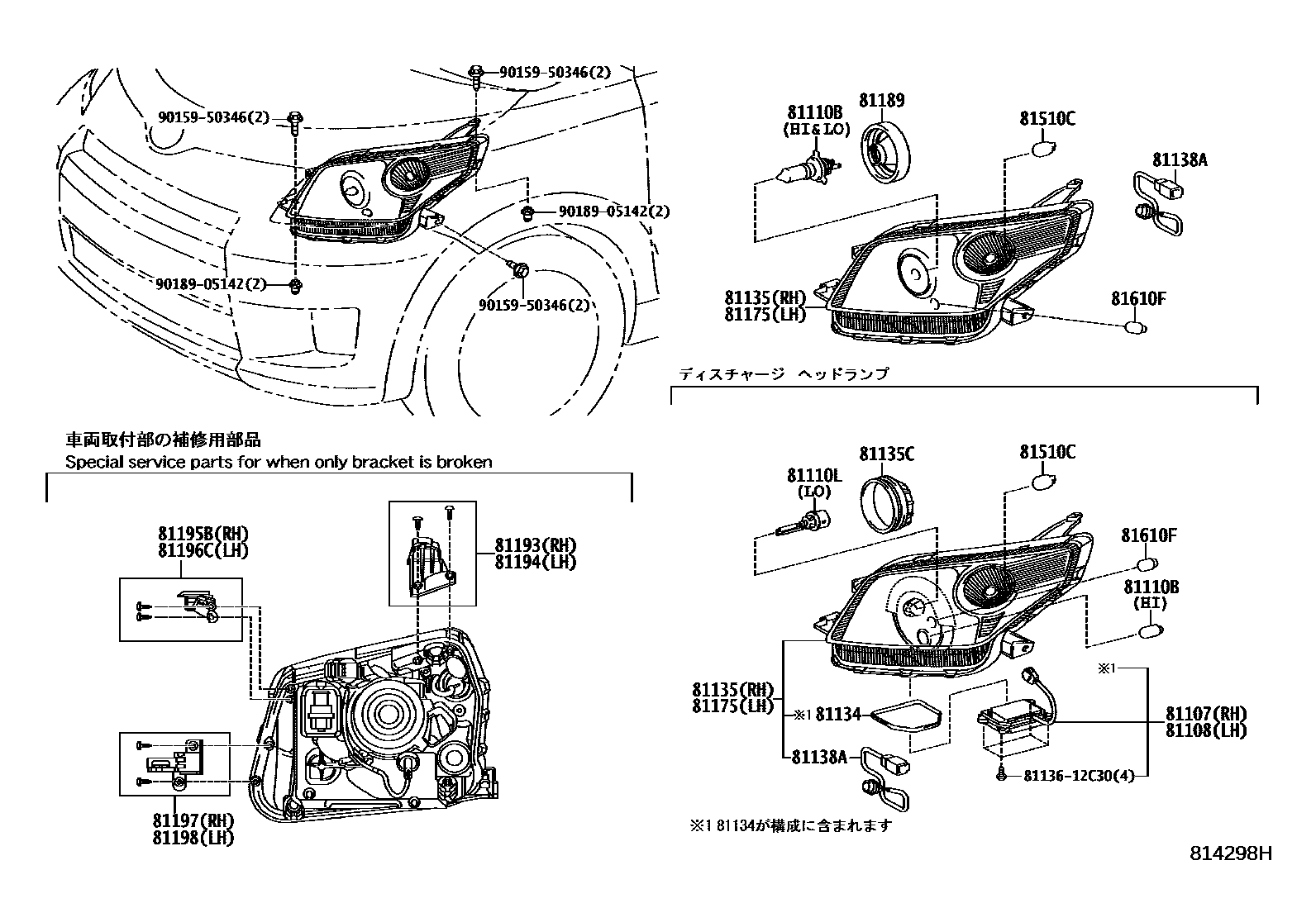

HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110BBULB(FOR HEADLAMP, NO.1)
81134GASKET, HEADLAMP
81135CCOVER, HEADLAMP BACK, NO.1
81138ASOCKET & WIRE, HEADLAMP
81189COVER, HEADLAMP
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH
81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH
81197BRACKET, HEADLAMP, LOWER RH
81198BRACKET, HEADLAMP, LWR LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81610FBULB(FOR CLEARANCE LAMP)
8113612C30PROTECTOR, HEADLAMP, NO.1 RH
main81136-12C30
9015950346
main90159-50346
9018905142
main90189-05142
21 parts on this diagram · 1 diagram in section
