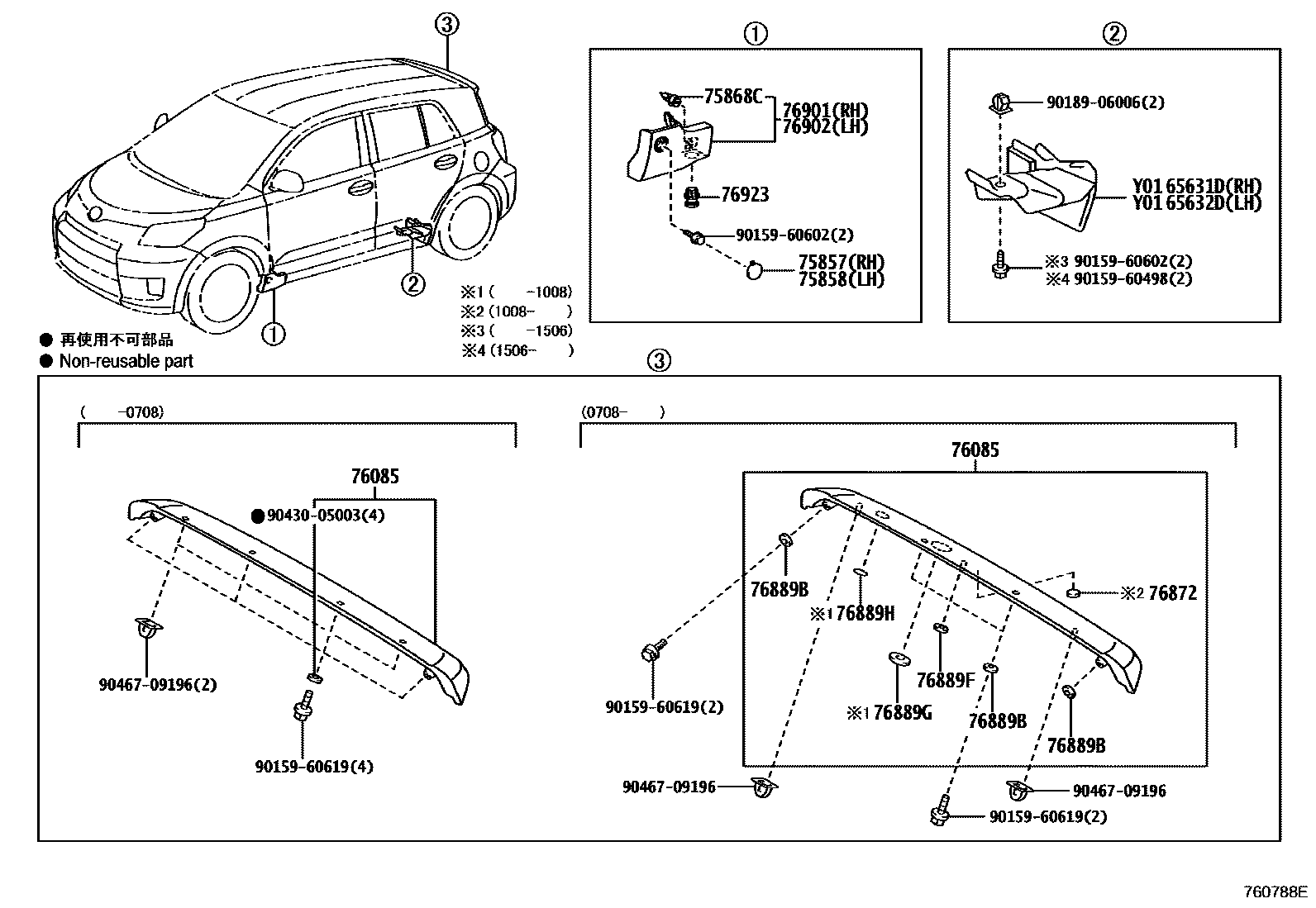

MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
75857COVER, ROCKER PANEL MOULDING, RH
75858COVER, ROCKER PANEL MOULDING, LH
75868CCLIP, REAR SPOILER, NO.2
76085SPOILER SUB-ASSY, REAR
76872PROTECTOR, REAR SPOILER, NO.1
76889BSEAL, REAR SPOILER, NO.1
76889FSEAL, REAR SPOILER, NO.1
76889GSEAL, REAR SPOILER, NO.1
76889HSEAL, REAR SPOILER, NO.1
76901MUDGUARD SUB-ASSY, SIDE, RH
76902MUDGUARD SUB-ASSY, SIDE, LH
76923RETAINER, SIDE MUDGUARD
9015960498
main90159-60498
9015960602
main90159-60602
9015960619
main90159-60619
9018906006
main90189-06006
9043005003
main90430-05003
9046709196
main90467-09196
20 parts on this diagram · 1 diagram in section
