REAR SEAT & SEAT TRACK

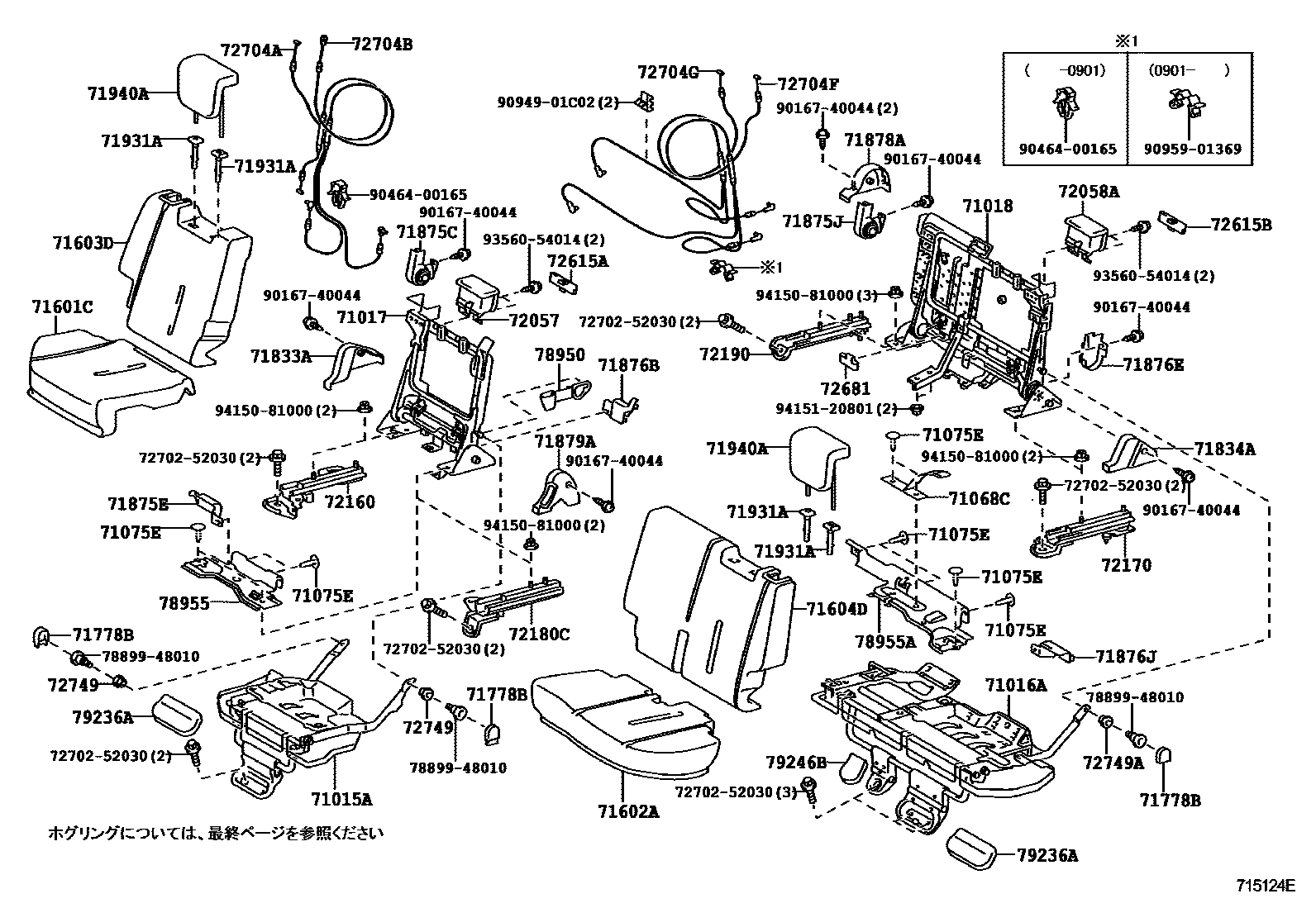

Parts diagram
71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH
main71015-52400i200707
main71015-52410i200707
71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH
main71016-52060i200707
main71016-52100i200707-201206
main71016-52140i201206
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-52550i200707
main71017-52560i200707
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-52360i201206
main71018-52400i200707-201206
main71018-52410i200707-201206
main71018-52420i201206
71068CPLATE SUB-ASSY, REAR SEAT LEG, LH
main71068-52010i200707
71075ECLIP(FOR REAR SEAT)
main90467-06085-B2i200707-201604
DK.GRAY,TRIM1#
sub90467-06085
main90467-08104-B2i200707-201604
DK.GRAY,TRIM1#
sub90467-08104
71601CPAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH
main71601-52F90-B0i200707-201008
DK.GRAY,TRIM10
sub71601-52F92
main71601-52F90-B1i200707-201008
GRAY,TRIM11
sub71601-52F92
main71601-52F91-B2i201008-201108
GRAY,TRIM1#
main71601-52G00-B0i200707-201008
DK.GRAY,TRIM10
sub71601-52G02
main71601-52G00-B1i200707-201008
GRAY,TRIM11
sub71601-52G02
main71601-52G01-B2i201008-201108
GRAY,TRIM1#
main71601-52L50-B0i200901-201007
main71601-52M10-B0i200901-201007
sub71601-52Q80
main71601-52Q20-B1i201108-201604
GRAY,TRIM1#
main71601-52Q30-B1i201108-201206
GRAY,TRIM1#
main71601-52Q40-B1i201206-201604
GRAY,TRIM1#
71602APAD SUB-ASSY, REAR SEAT CUSHION W/COVER, LH
main71602-52440-B0i200707-201008
DK.GRAY,TRIM10
sub71602-52442
main71602-52440-B1i200707-201008
GRAY,TRIM11
sub71602-52442
main71602-52441-B2i201008-201108
GRAY,TRIM1#
main71602-52450-B0i200707-201008
DK.GRAY,TRIM10
sub71602-52452
main71602-52450-B1i200707-201008
GRAY,TRIM11
sub71602-52452
main71602-52451-B2i201008-201108
GRAY,TRIM1#
main71602-52630-B0i200901-201007
main71602-52670-B0i200901-201007
sub71602-52890
main71602-52820-B1i201108-201604
GRAY,TRIM1#
main71602-52830-B1i201108-201206
GRAY,TRIM1#
main71602-52840-B1i201206-201604
GRAY,TRIM1#
71603DPAD SUB-ASSY, REAR SEATBACK W/COVER, RH
main71603-52J60-B4i200707-201008
DK.GRAY,TRIM10
sub71603-52J62
main71603-52J60-B5i200707-201008
GRAY,TRIM11
sub71603-52J62
main71603-52J61-B6i201008-201108
GRAY,TRIM1#
main71603-52J70-B4i200707-201008
DK.GRAY,TRIM10
sub71603-52J72
main71603-52J70-B5i200707-201008
GRAY,TRIM11
sub71603-52J72
main71603-52J71-B6i201008-201108
GRAY,TRIM1#
main71603-52R60-B0i200901-201007
sub71603-52U50
main71603-52R70-B0i200901-201007
sub71603-52W40
main71603-52V50-B1i201108-201206
GRAY,TRIM1#
main71603-52V60-B1i201108-201206
GRAY,TRIM1#
main71603-52W20-B0i201206-201604
GRAY,TRIM1#
main71603-52W30-B0i201206-201604
GRAY,TRIM1#
71604DPAD SUB-ASSY, REAR SEATBACK W/COVER, LH
main71604-52G20-B4i200707-201008
DK.GRAY,TRIM10
sub71604-52G22
main71604-52G20-B5i200707-201008
GRAY,TRIM11
sub71604-52G22
main71604-52G21-B6i201008-201108
GRAY,TRIM1#
main71604-52G30-B4i200707-201008
DK.GRAY,TRIM10
sub71604-52G32
main71604-52G30-B5i200707-201008
GRAY,TRIM11
sub71604-52G32
main71604-52G31-B6i201008-201108
GRAY,TRIM1#
main71604-52N10-B0i200901-201007
sub71604-52R70
main71604-52N20-B0i200901-201007
sub71604-52R80
main71604-52Q50-B1i201108-201206
GRAY,TRIM1#
main71604-52Q60-B1i201108-201206
GRAY,TRIM1#
main71604-52R20-B0i201206-201604
GRAY,TRIM1#
main71604-52R30-B0i201206-201604
GRAY,TRIM1#
71778BCOVER, REAR SEAT SIDE HINGE MALE, RH
main71778-52010-B0i200707-201604
DK.GRAY,TRIM1#
sub71778-52010
71833ACOVER, REAR SEAT RECLINING, NO.1 RH
main71833-52050-B1i200707-201604
DK.GRAY,TRIM1#
main71833-52060-B1i200707-201604
DK.GRAY,TRIM1#
71834ACOVER, REAR SEAT RECLINING, NO.1 LH
main71834-52050-B1i200707-201604
DK.GRAY,TRIM1#
main71834-52060-B1i200707-201604
DK.GRAY,TRIM1#
71875CCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-52121-B0i200707-201604
DK.GRAY,TRIM1#
sub71875-52121
71875ECOVER, RECLINING ADJUSTER INSIDE, RH
main71875-52130-B0i200707-201604
DK.GRAY,TRIM1#
sub71875-52130
main71875-52230-B0i200707-201604
DK.GRAY,TRIM1#
sub71875-52230
71875JCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-52141-B0i200707-201604
DK.GRAY,TRIM1#
sub71875-52141
71876BCOVER, RECLINING ADJUSTER INSIDE, LH
main71876-52140-B0i200707-201604
DK.GRAY,TRIM1#
sub71876-52140
main71876-52200-B0i200707-201604
DK.GRAY,TRIM1#
sub71876-52200
71876ECOVER, RECLINING ADJUSTER INSIDE, LH
main71876-52121-B0i200707-201604
DK.GRAY,TRIM1#
sub71876-52121
71876JCOVER, RECLINING ADJUSTER INSIDE, LH
main71876-52130-B0i200707-201604
DK.GRAY,TRIM1#
sub71876-52130
71878ACOVER, REAR SEAT RECLINING, INNER RH
main71878-52070-B2i200707-201604
DK.GRAY,TRIM1#
sub71878-52070
main71878-52140-B0i200707-201604
DK.GRAY,TRIM1#
71879ACOVER, REAR SEAT RECLINING, INNER LH
main71879-52090-B2i200707-201604
DK.GRAY,TRIM1#
sub71879-52090
main71879-52130-B0i200707-201604
DK.GRAY,TRIM1#
71931ASUPPORT, REAR SEAT HEADREST
main71930-52030-B0i200707-201008
sub71930-52030
main71930-52030-B0i201008-201604
sub71930-52030
main71930-52030-B1i200707-201008
sub71930-52030
main71931-42020-B4i201008-201604
sub71931-42020
main71931-42020-B4i200707-201008
sub71931-42020
main71931-42020-B7i200707-201008
sub71931-42020
71940AHEADREST ASSY, REAR SEAT
main71940-52490-B0i200707-201008
DK.GRAY,TRIM10
sub71940-52491
sub71940-52492
main71940-52490-B1i200707-201008
GRAY,TRIM11
sub71940-52491
sub71940-52492
main71940-52491-B0i201008-201604
DK.GRAY,TRIM1#
72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
main72057-52010-B0i200707-201604
DK.GRAY,TRIM1#
main72057-52020-B0i200707-201604
DK.GRAY,TRIM1#
sub72057-52020
72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH
main72057-52020-B0i200707-201604
DK.GRAY,TRIM1#
sub72057-52020
main72058-52010-B0i200707-201604
DK.GRAY,TRIM1#
72160TRACK ASSY, REAR SEAT, OUTER RH
main72160-52020i200707
72170TRACK ASSY, REAR SEAT, OUTER LH
main72170-52030i200707
72180CTRACK ASSY, REAR SEAT, INNER RH
main72160-52030i200707
72190TRACK ASSY, REAR SEAT INNER, LH
main72170-52020i200707-201305
main72170-52080i201306
72615ACOVER, REAR SEATBACK LOCK STRIKER, RH
main72615-52070-B0i200707-201604
DK.GRAY,TRIM1#
sub72615-52070
72615BCOVER, REAR SEAT LOCK STRIKER, RH
main72615-52070-B0i200707-201604
DK.GRAY,TRIM1#
sub72615-52070
72681HOOK, REAR SEATBACK LOCK, LOWER
main72681-52010i200707
72704ACABLE, REAR SEAT RECLINING CONTROL
main72704-52150i200707
72704BCABLE, REAR SEAT RECLINING CONTROL, NO.2
main72704-52170i200707
72704FCABLE, REAR SEAT RECLINING CONTROL, NO.3
main72704-52160i200707
72704GCABLE, REAR SEAT RECLINING CONTROL, NO.4
main72704-52180i200707
72749SPACER, REAR SEAT RECLINING
main72749-48010i200707
72749ASPACER, REAR SEAT RECLINING
main72749-48010i200707
78950BAND ASSY, FOLD SEAT STOPPER, NO.1
main78950-52030i200707
78955COVER, REAR SEAT UNDER TRAY RH
main78955-52010i200802
main78955-52010-B0i200707-200802
DK.GRAY,TRIM1#
sub78955-52010
78955ACOVER, REAR SEAT UNDER TRAY
main78955-52020i200802
main78955-52020-B0i200707-200802
DK.GRAY,TRIM1#
sub78955-52020
79236ACOVER, NO.2 SEAT LEG
main79236-52020-C0i200707-201604
BLACK,TRIM1#
79246BCOVER, NO.2 SEAT LEG, B
main79246-52020-C0i200707-201604
BLACK,TRIM1#
7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-52030
7889948010BOLT, FRONT SEAT
main78899-48010
9016740044
main90167-40044
9046400165
main90464-00165
9094901C02
main90949-01C02
9095901369
main90959-01369
9356054014
main93560-54014
9415081000
main94150-81000
9415120801
main94151-20801

52 parts on this diagram · 5 diagrams in section
