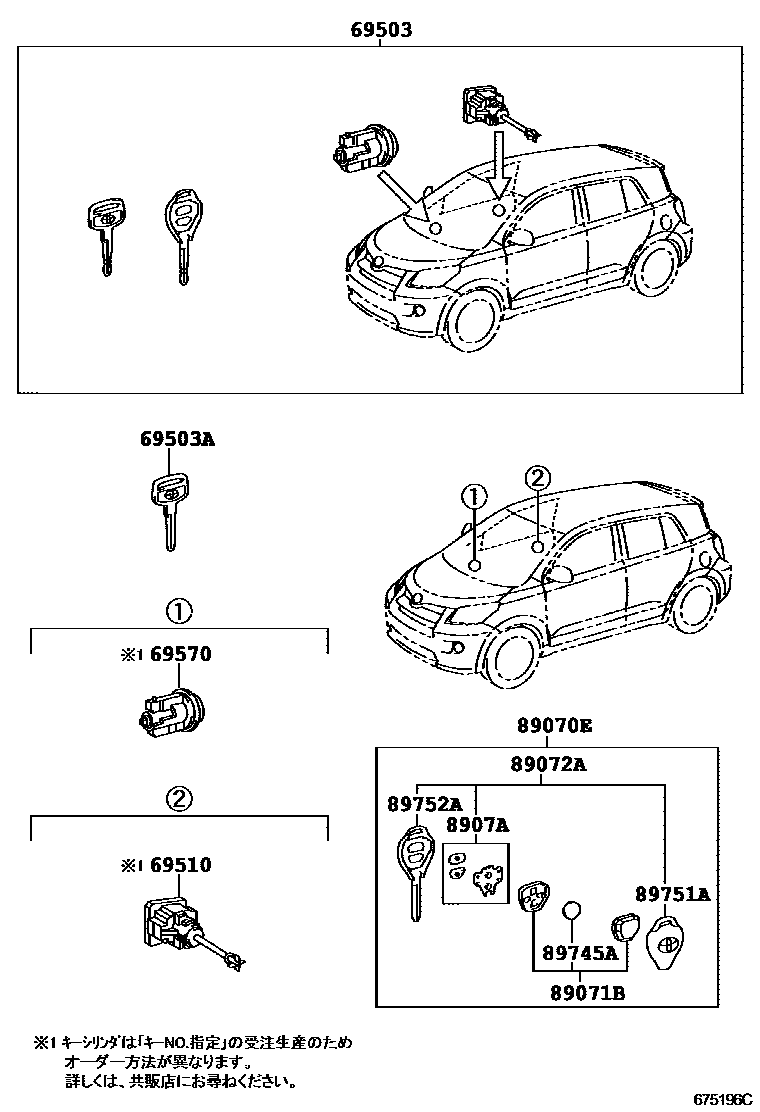

LOCK CYLINDER SET

0001 1��(��������) 0003 1��(��������) 0004 1��(��������)

69503CYLINDER SET, LOCK

main69005-52E70iNCP11#..CBU200707-201206

main69005-52P30iNCP11#..CBU201206

main69005-5C160iZSP110200707-201008

69503AKEY, BLANK

main69515-52120iZSP110200707-201008

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-52220iNCP11#..CBU200707

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-52080iNCP11#..CBU200707

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-68130iNCP11#..CBU201002-201206

main89070-68180iNCP11#..CBU201206

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-52240iNCP11#..CBU201206

main89071-68030iNCP11#..CBU201002-201206

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-52420iNCP11#..CBU200707-201206

main89072-68050iNCP11#..CBU201206

8907ASWITCH SET, TRANSMITTER

main8907A-52010iNCP11#..CBU201206

main8907A-71010iNCP11#..CBU200707-201206

89745ABATTERY, TRANSMITTER

main89745-52020iZSP110200707-201008

89751ACOVER, TRANSMITTER HOUSING

main89751-42090iNCP11#..CBU201206

main89751-52140iNCP11#..CBU200707-201206

89752ACASE, TRANSMITTER HOUSING

main89752-12080iNCP11#..CBU200707-201206

main89752-68080iNCP11#..CBU201206

11 parts on this diagram · 3 diagrams in section
