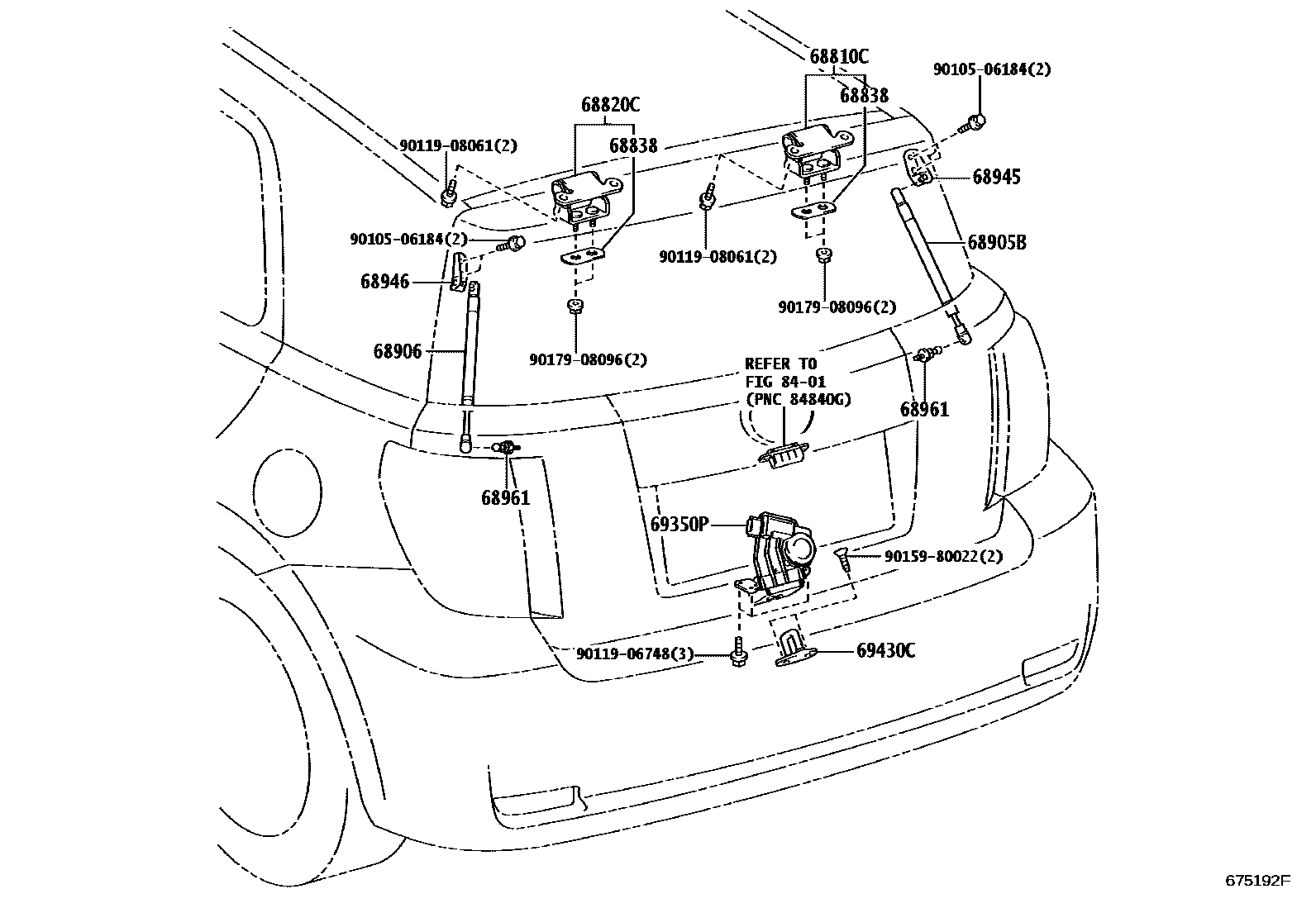

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iNCP11#,ZSP110..CBU200707-200708

main68810-52100iNCP11#,ZSP110..CBU200708-201604

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iNCP11#,ZSP110..CBU200707-200708

main68810-52100iNCP11#,ZSP110..CBU200708-201604

68838PAD, BACK DOOR HINGE, NO.1

main68838-44020iNCP11#,ZSP110..CBU200707-200708

main68838-52030iNCP11#,ZSP110..CBU200708

68905BSTAY SUB-ASSY, BACK DOOR, RH

main68905-52020iNCP11#,ZSP110..CBU200707-201112

sub68905-52021

main68905-52021iNCP11#..CBU201201

68906STAY SUB-ASSY, BACK DOOR, LH

main68906-52020iNCP11#,ZSP110..CBU200707-201112

sub68906-52021

main68906-52021iNCP11#..CBU201201

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52070iNCP11#,ZSP110..CBU200707-201307

sub68945-52071

main68945-52071iNCP11#..CBU201308

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-52030iNCP11#,ZSP110..CBU200707-201307

sub68946-52031

main68946-52031iNCP11#..CBU201308

68961BOLT, BACK DOOR STAY

main68961-30020iNCP11#,ZSP110..CBU200707

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28150iNCP11#,ZSP110..CBU200707-201511

sub69350-28151

main69350-28151iNCP11#..CBU201512-201604

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-20160iNCP11#,ZSP110..CBU200707

8401

9010506184

main90105-06184

9011906748

main90119-06748

9011908061

main90119-08061

9015980022

main90159-80022

9017908096

main90179-08096

16 parts on this diagram · 1 diagram in section
