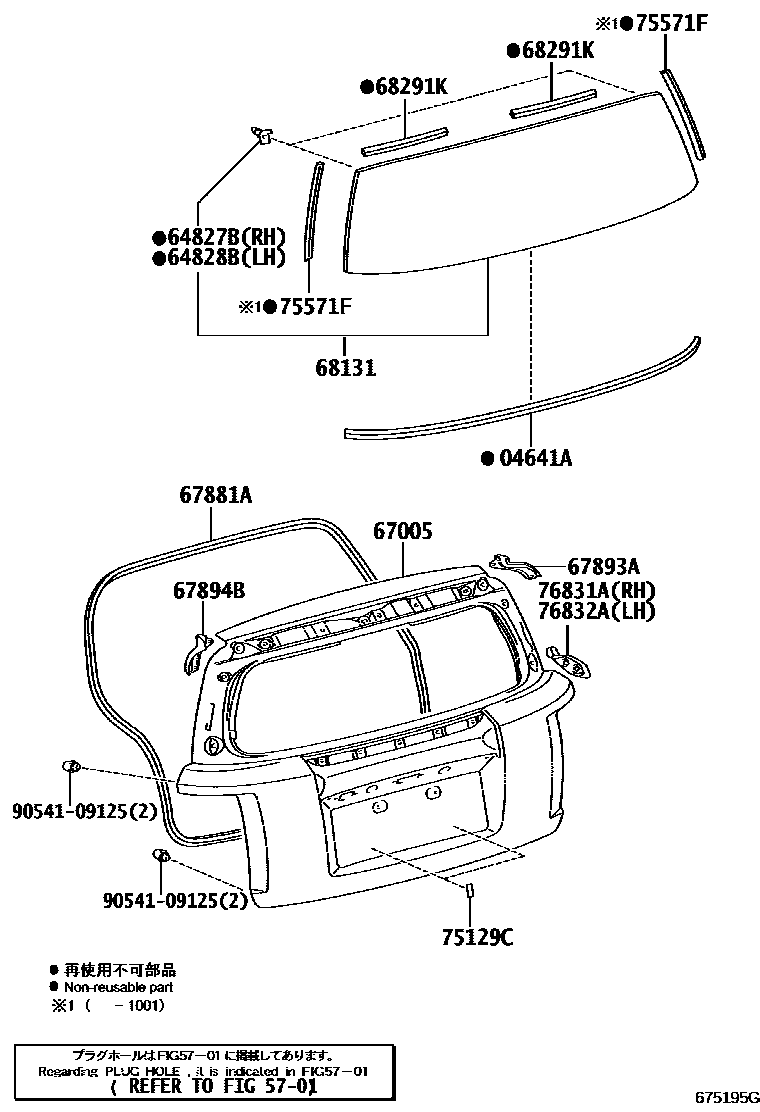

BACK DOOR PANEL & GLASS

0001 1 0002 1

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main64813-52100iZSP110200707-201008

sub56117-50140

5701

64827BCLIP, BACK WINDOW GLASS, RH

main64827-52080iZSP110200707-201008

64828BCLIP, BACK WINDOW GLASS, LH

main64828-52080iNCP11#..CBU200707-201008

67005PANEL SUB-ASSY, BACK DOOR

main67005-52B30iNCP11#,ZSP110..CBU200707-201604

67881AWEATHERSTRIP, BACK DOOR

main67881-52140iZSP110200707-201008

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-52060iZSP110200707-201008

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-52060iZSP110200707-201008

68131GLASS, BACK DOOR

main68105-52530iZSP110200707-201008

68291KDAM KIT, BACK WINDOW GLASS

main64814-52070iZSP110200707-201008

sub64813-68010

75129CCUSHION, REAR LICENCE PLATE

main75129-13020iZSP110200707-201011

main75129-30010iNCP11#..CBU201012

75571FMOULDIMG, BACK DOOR WINDOW

main75571-52080iNCP11#,ZSP110..CBU200707-201001

76831ACOVER, BACK DOOR FINISH PANEL, RH

main76831-52050iZSP110200707-201008

76832ACOVER, BACK DOOR FINISH PANEL, LH

main76832-52050iZSP110200707-201008

9054109125

main90541-09125

15 parts on this diagram · 2 diagrams in section
