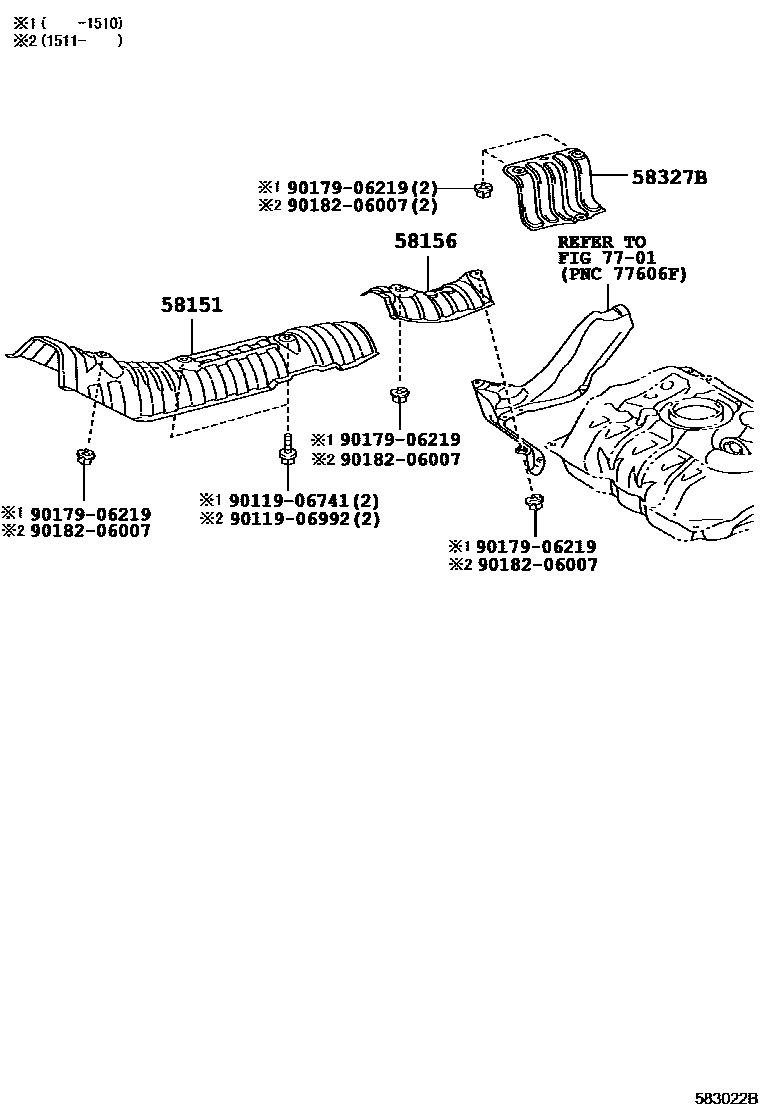

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-52061iNCP110,ZSP110..CBU200707-200910

sub58151-52062

main58151-52062iNCP110,ZSP110..CBU200911

main58151-52070iNCP115..CBU200707-200912

sub58151-52071

main58151-52071iNCP115..CBU201001

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-52010iNCP110,ZSP110..CBU200707

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52110iNCP110,ZSP110..CBU200707-200912

sub58327-52111

main58327-52111iNCP110,ZSP110..CBU201001

main58327-52130iNCP115..CBU200707-200712

sub58327-52150

main58327-52150iNCP115..CBU200801-200810

sub58327-52151

main58327-52151iNCP115..CBU200811

7701

9011906741

main90119-06741

9011906992

main90119-06992

9017906219

main90179-06219

9018206007

main90182-06007

8 parts on this diagram · 2 diagrams in section
