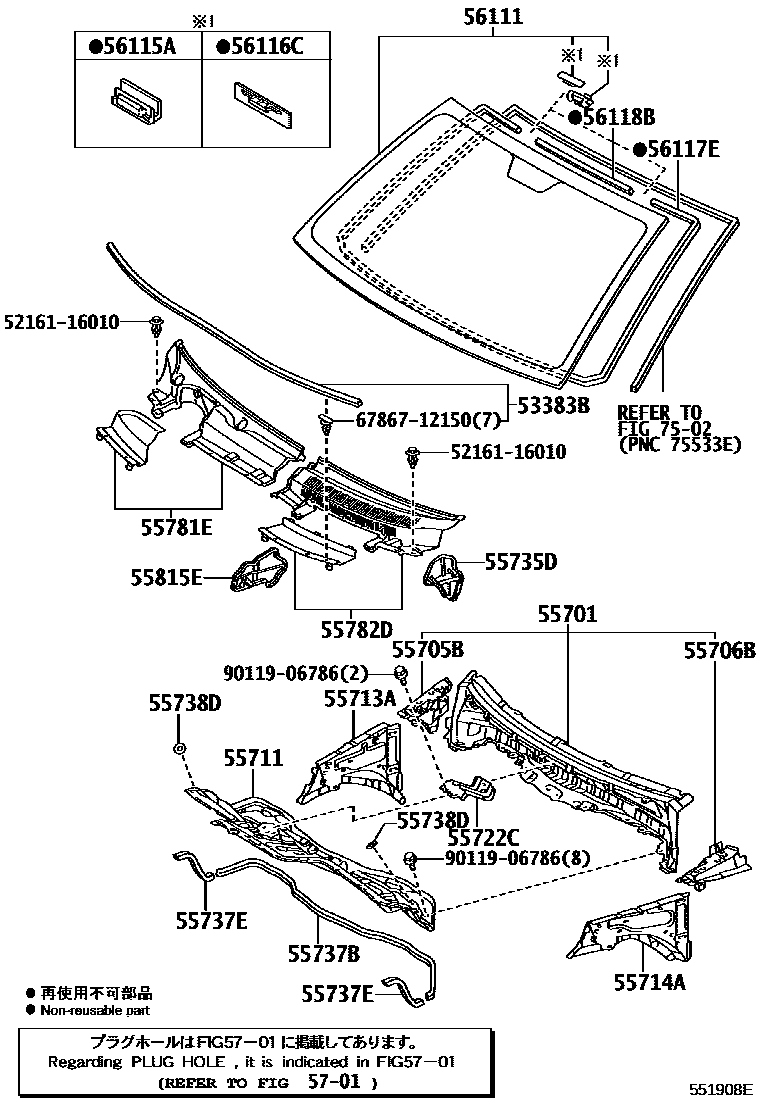

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55711PANEL, COWL TOP, OUTER
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55722CBRACE, COWL TOP TO COWL, INNER
55735DSEAL, FRONT AIR SHUTTER, RH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737ESEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55782DLOUVER, COWL TOP VENTILATOR, LH
55815ESEAL, FRONT VENTILATOR, NO.1
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
5701
7502
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
9011906786
main90119-06786
25 parts on this diagram · 1 diagram in section
