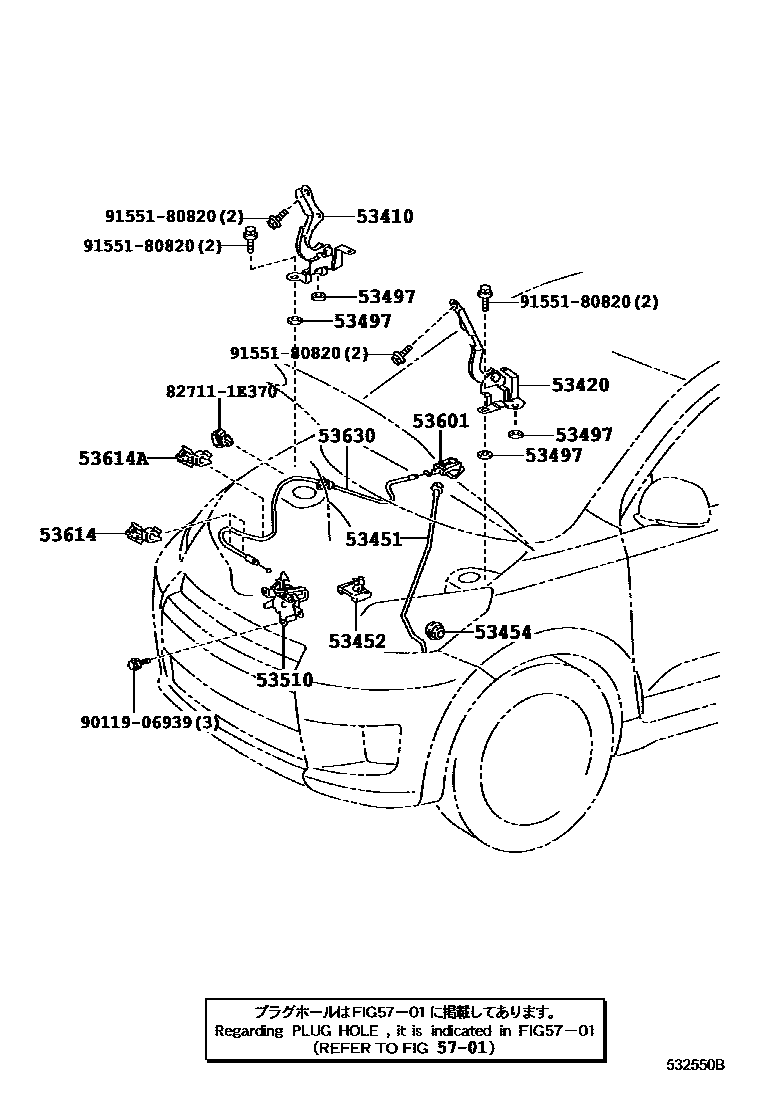

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52271iNCP11#,ZSP110..CBU200707-201604

53420HINGE ASSY, HOOD, LH

main53420-52271iNCP11#,ZSP110..CBU200707-201604

53451ROD, HOOD SUPPORT

main53440-52170iNCP11#,ZSP110..CBU200707

53452HOLDER, HOOD STAY

main53452-52010iNCP11#,ZSP110..CBU200707

53454CLIP, HOOD SUPPORT ROD

main53454-52020iNCP11#,ZSP110..CBU200707

53497PAD, HOOD HINGE, NO.1

main53497-42010×4iNCP11#,ZSP110..CBU200707

53510LOCK ASSY, HOOD

main53510-52420iNCP11#,ZSP110..CBU200707-201604

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iNCP11#,ZSP110..CBU200707-201111

DK.GRAY,TRIM1#

main53601-52010-C0iNCP11#..CBU201111-201604

BLACK,TRIM1#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-52010×2iNCP11#,ZSP110..CBU200707

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-52020iNCP11#,ZSP110..CBU200707

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52110iNCP11#,ZSP110..CBU200707

5701

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

9155180820

main91551-80820

15 parts on this diagram · 1 diagram in section
