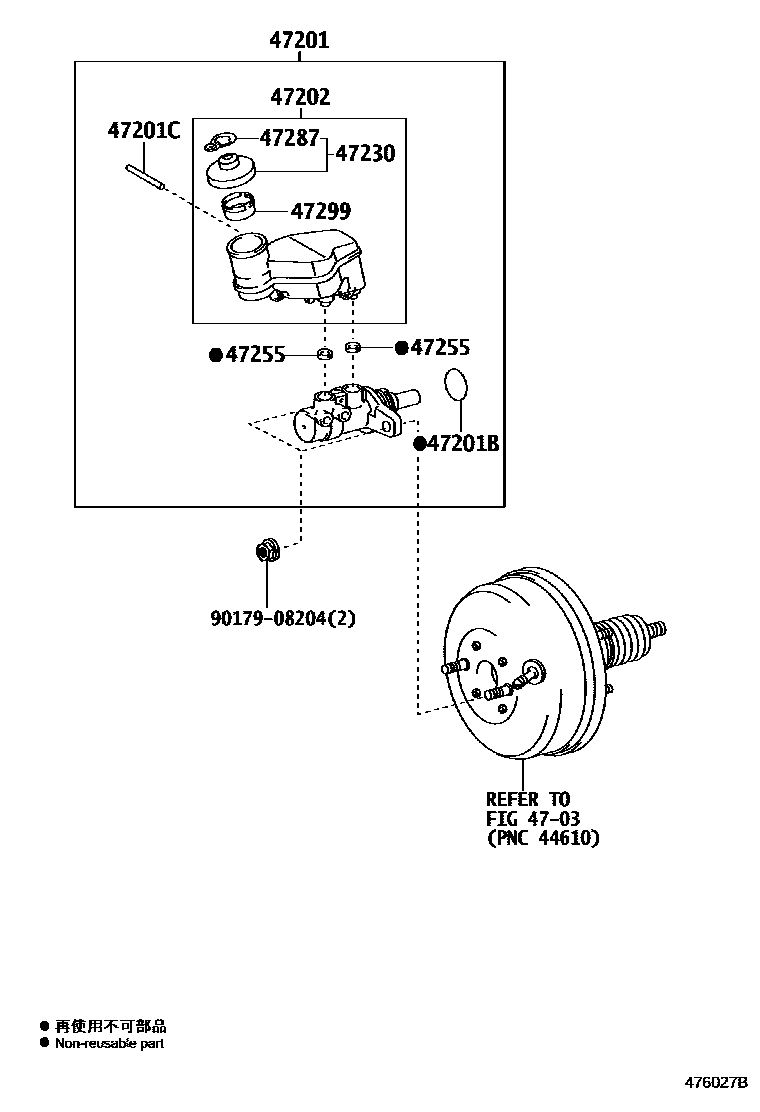

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52400iNCP11#..CBU200707-201008

sub47201-52401

main47201-52410iZSP110200707-201008

main47201-52710iNCP11#..CBU201008-201203

sub47201-52711

main47201-52711iNCP11#..CBU201203-201205

sub47201-52712

main47201-52712iNCP11#..CBU201205-201604

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iZSP110200707-201008

main90015-AH002iNCP11#..CBU200707

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNCP11#..CBU200707

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52110iZSP110200707-201008

main47220-52180iNCP11#..CBU200707-201604

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNCP11#..CBU200707-201203

main47230-20140iNCP11#..CBU201203-201206

main47230-33071iZSP110200707-201008

sub47230-33072

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001iZSP110200707-201008

main90029-48001iNCP11#..CBU200707

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNCP11#..CBU200707-201604

main47287-20010iNCP11#..CBU201203-201206

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iNCP11#..CBU200707-201203

main47299-20060iNCP11#..CBU201203-201206

main47299-52110iZSP110200707-201008

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
