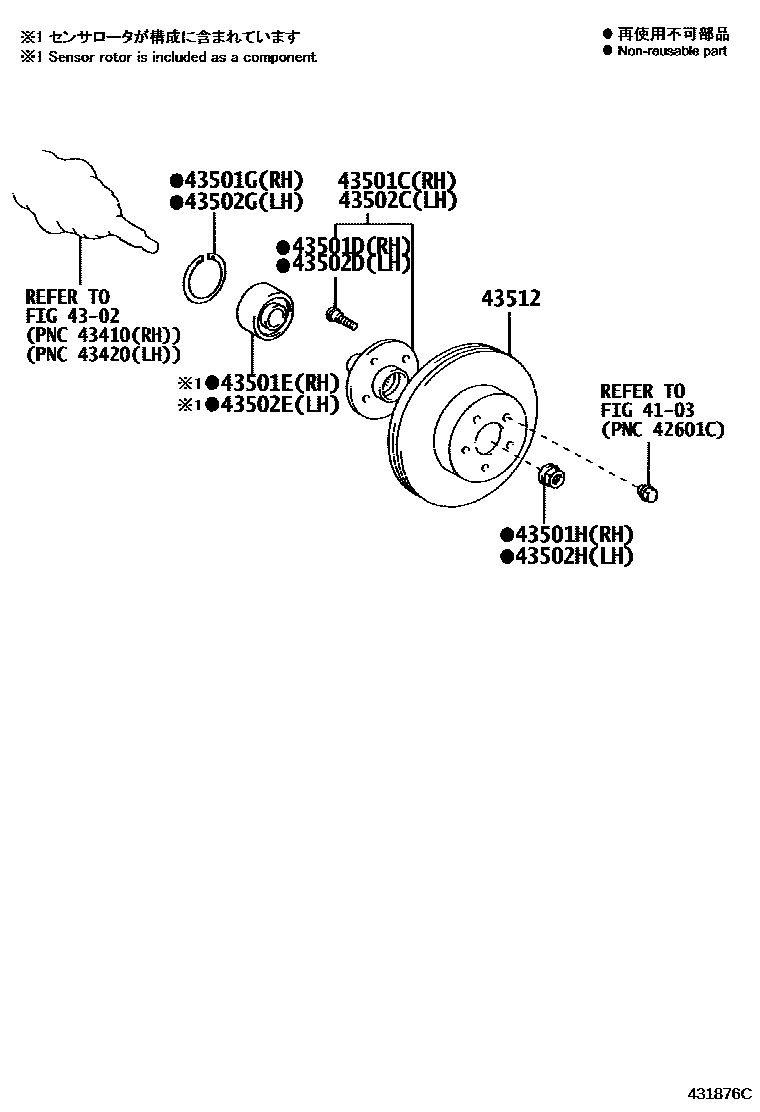

FRONT AXLE HUB

4103

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52040iNCP11#,ZSP110..CBU200707-201604

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iNCP11#,ZSP110..CBU200707

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40079iNCP11#,ZSP110..CBU200707-201604

sub90369-40009

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003iNCP11#,ZSP110..CBU200707

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNCP11#,ZSP110..CBU200707

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52040iNCP11#,ZSP110..CBU200707

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iNCP11#,ZSP110..CBU200707

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40079iNCP11#,ZSP110..CBU200707-201604

sub90369-40009

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003iNCP11#,ZSP110..CBU200707

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNCP11#,ZSP110..CBU200707

43512DISC, FRONT

main43512-12710iNCP11#,ZSP110..CBU200707-201604

13 parts on this diagram · 1 diagram in section
