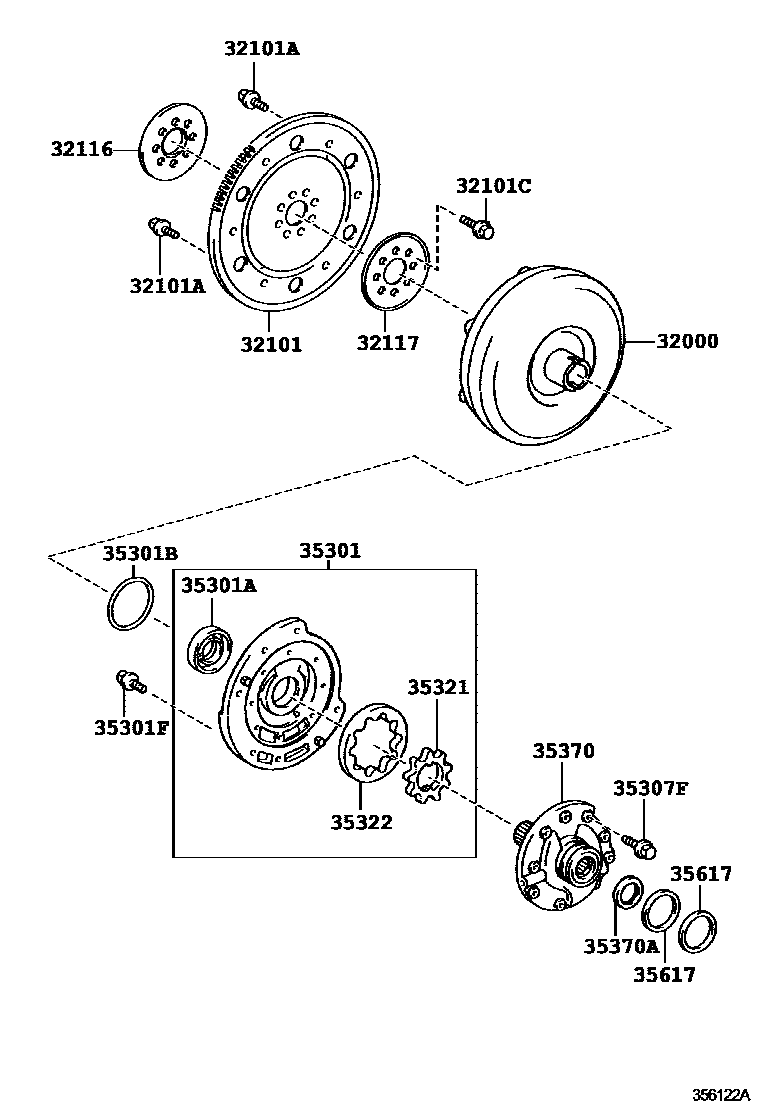

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-12420iZSP110200707-201008

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZSP110200707-201008

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZSP110200707-201008

main90119-08498iZSP110200707-201008

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZSP110200707-201008

main90105-A0022iZSP110200707-201003

32116SPACER, DRIVE PLATE, FRONT

main32116-12030iZSP110200707-201008

32117SPACER, DRIVE PLATE, REAR

main32117-12040iZSP110200707-201008

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-52040iZSP110200707-201008

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38064iZSP110200707-201008

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99124iZSP110200707-201008

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08301iZSP110200707-201008

35307FBOLT (FOR STATOR SHAFT)

main90148-60027iZSP110200707-201008

35321GEAR, FRONT OIL PUMP DRIVE

main35321-52060iZSP110200707-201008

main35321-52070iZSP110200707-201008

main35321-52080iZSP110200707-201008

main35321-52090iZSP110200707-201008

main35321-52100iZSP110200707-201008

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-52060iZSP110200707-201008

main35322-52070iZSP110200707-201008

main35322-52080iZSP110200707-201008

main35322-52090iZSP110200707-201008

main35322-52100iZSP110200707-201008

35370SHAFT ASSY, STATOR

main35370-52070iZSP110200707-201008

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-26003iZSP110200707-201008

35617RING, CLUTCH DRUM OIL SEAL

main35613-52020iZSP110200707-201008

16 parts on this diagram · 1 diagram in section
