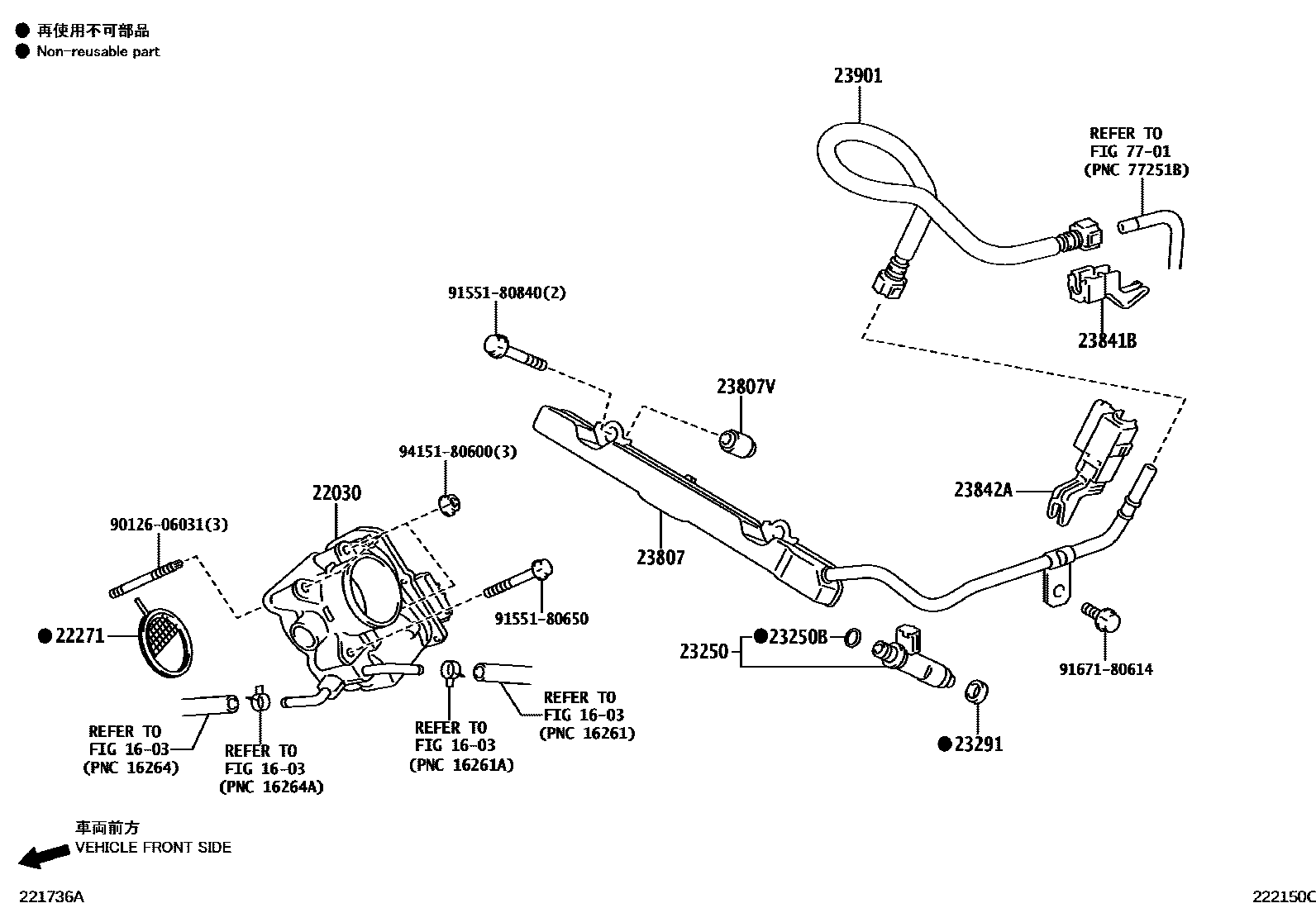

FUEL INJECTION SYSTEM

0001 1 0002 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i1NZFE..NCP11#..CBU200707

22271GASKET, THROTTLE BODY

main22271-21060i1NZFE..NCP11#..CBU200707

main22271-75031i2ZRFE..ZSP110200707-201008

23250INJECTOR ASSY, FUEL

main23209-21040×4i1NZFE..NCP11#..CBU200707

sub23209-21120

main23209-39145×4i2ZRFE..ZSP110200707-200902

main23209-39146×4i2ZRFE..ZSP110200902-201008

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2ZRFE..ZSP110200707-201008

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i1NZFE..NCP11#..CBU201107

main23291-28020×4i2ZRFE..ZSP110200902-201001

main23291-41010×4i1NZFE..NCP11#..CBU200707-201107

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21030i1NZFE..NCP11#..CBU200707-201410

main23807-21031i1NZFE..NCP11#..CBU201411

main23814-37050i2ZRFE..ZSP110200707-201008

sub23814-37051

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i1NZFE..NCP11#..CBU200707

main23891-37010×2i2ZRFE..ZSP110200707-201008

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NZFE..NCP11#..CBU200707

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-21040i1NZFE..NCP11#..CBU200906-201210

main23841-37090i1NZFE..NCP11#..CBU201211

main23842-21010i1NZFE..NCP11#..CBU200707-200906

main23842-22020i2ZRFE..ZSP110200707-201008

23901TUBE SUB-ASSY, FUEL

main23901-21110i1NZFE..NCP11#..CBU200707

main23901-37020i2ZRFE..ZSP110200707-201008

7701

9012606031

main90126-06031

9155180650

main91551-80650

9155180840

main91551-80840

9167180614

main91671-80614

9415180600

main94151-80600

17 parts on this diagram · 2 diagrams in section
