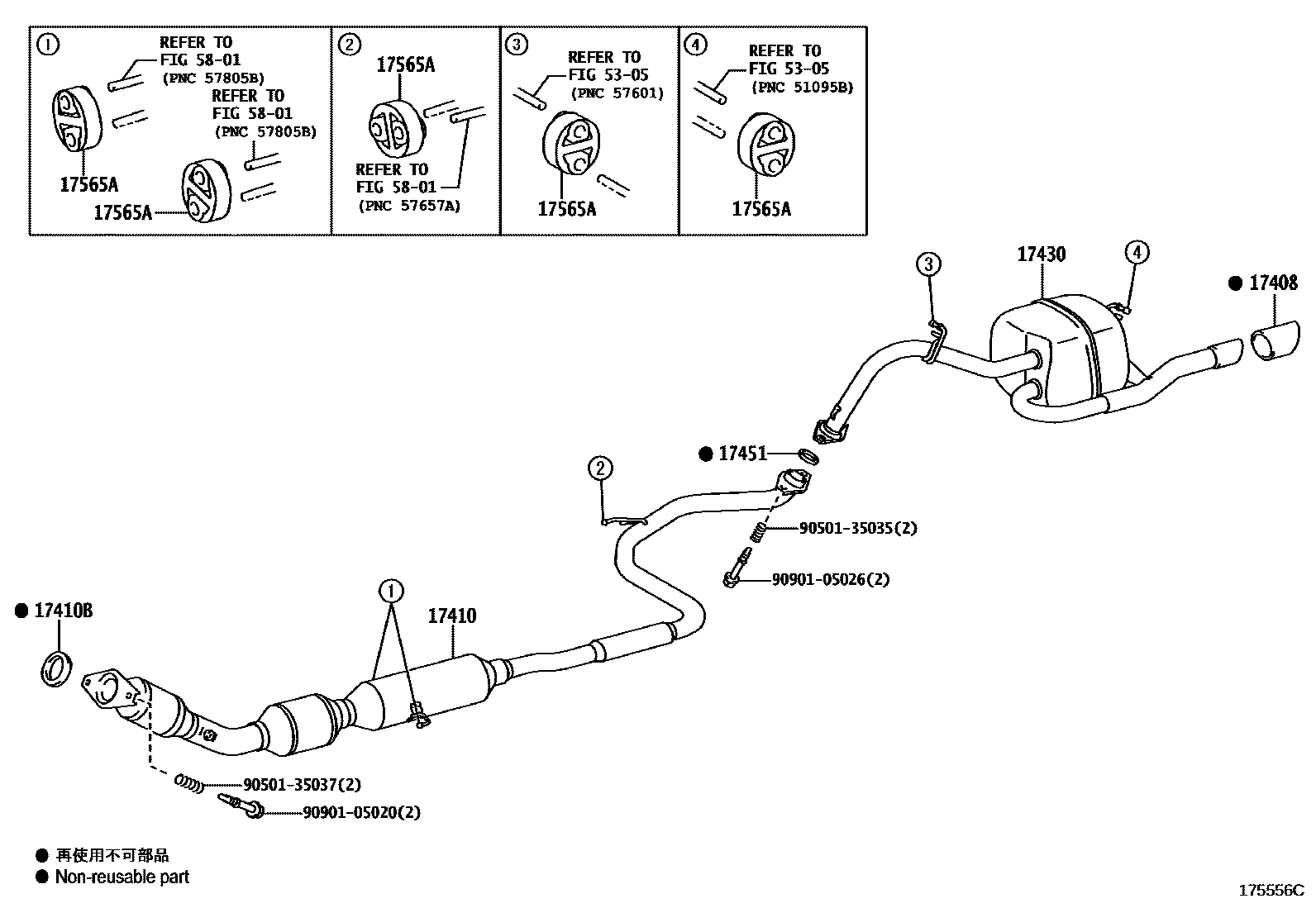

EXHAUST PIPE

0001 1 0003 1

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-21030i1NZFE..NCP11#..CBU200707

main17408-46020i2ZRFE..ZSP110200707-201008

17410PIPE ASSY, EXHAUST, FRONT

main17410-21830i1NZFE..NCP110..CBU200707-200912

sub17410-21831

main17410-21831i1NZFE..NCP110..CBU201001-201008

main17410-21840i1NZFE..NCP115..CBU200707

main17410-21B40i1NZFE..NCP110..CBU201008

main17410-37280i2ZRFE..ZSP110200707-201008

17410BGASKET, EXHAUST PIPE

main17451-21070i1NZFE..NCP11#..CBU200707

main17451-28040i2ZRFE..ZSP110200707-201008

sub17451-28041

17430PIPE ASSY, EXHAUST, TAIL

main17430-21750i1NZFE..NCP110..CBU200707-201105

sub17430-21751

main17430-21751i1NZFE..NCP110..CBU201106

main17430-21760i1NZFE..NCP115..CBU200707-200806

sub17430-21761

main17430-21761i1NZFE..NCP115..CBU200807

main17430-37290i2ZRFE..ZSP110200707-201008

sub17430-37291

17451GASKET, EXHAUST PIPE

main17451-23040i1NZFE,2ZRFE..NCP110,ZSP110..CBU200707-200708

sub17451-23041

main17451-23041i1NZFE,2ZRFE..NCP110,ZSP110..CBU200708-201009

sub17451-23042

main17451-23042i1NZFE..NCP110..CBU201010

sub17451-23043

main90917-06089i1NZFE..NCP115..CBU200707

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-40010i1NZFE..NCP115..CBU200707-201011

sub17565-47010

main17565-47010i1NZFE..NCP115..CBU201012

5305

5801

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

12 parts on this diagram · 2 diagrams in section
