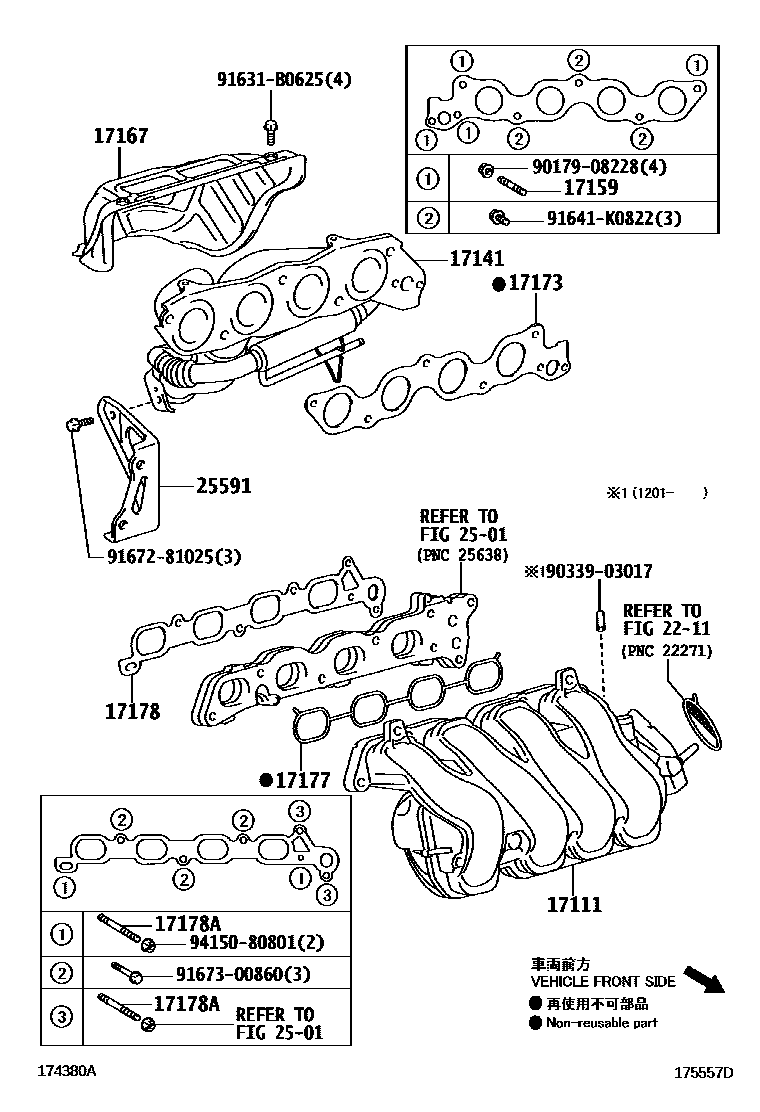

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17101-21070i1NZFE..NCP11#..CBU200707-201204

sub17101-21071

sub90339-03017

main17101-21071i1NZFE..NCP11#..CBU201204

main17120-37020i2ZRFE..ZSP110200707-200805

sub17120-37021

main17120-37021i2ZRFE..ZSP110200805-200909

main17120-37022i2ZRFE..ZSP110200909-201008

17141MANIFOLD, EXHAUST

main17104-21040i1NZFE..NCP110..CBU200707-200904

sub17104-21041

main17104-21041i1NZFE..NCP110..CBU200904

main17141-37051i2ZRFE..ZSP110200707-201008

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026i2ZRFE..ZSP110200707-201008

main90126-08037i1NZFE..NCP11#..CBU200707

main90126-08052i2ZRFE..ZSP110200707-201008

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21110i1NZFE..NCP110..CBU200707

main17167-21160i1NZFE..NCP115..CBU200707

main17167-37011i2ZRFE..ZSP110200707-201008

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21030i1NZFE..NCP11#..CBU200707

main17173-37010i2ZRFE..ZSP110200707-201008

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-21030i1NZFE..NCP11#..CBU200707

main17177-37030i2ZRFE..ZSP110200707-201008

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-21010i1NZFE..NCP11#..CBU200707

17178ASTUD, HEX LOBULAR(INTAKE MANIFOLD TO HEAD GASKET)

main90126-08049i1NZFE..NCP11#..CBU200707

2211

2501

25591BRACKET, MANIFOLD SUPPORT

main25591-21060i1NZFE..NCP110..CBU200707

9017908228

main90179-08228

9033903017

main90339-03017

91631B0625

main91631-B0625

91641K0822

main91641-K0822

9167281025

main91672-81025

9167300860

main91673-00860

9415080801

main94150-80801

18 parts on this diagram · 3 diagrams in section
