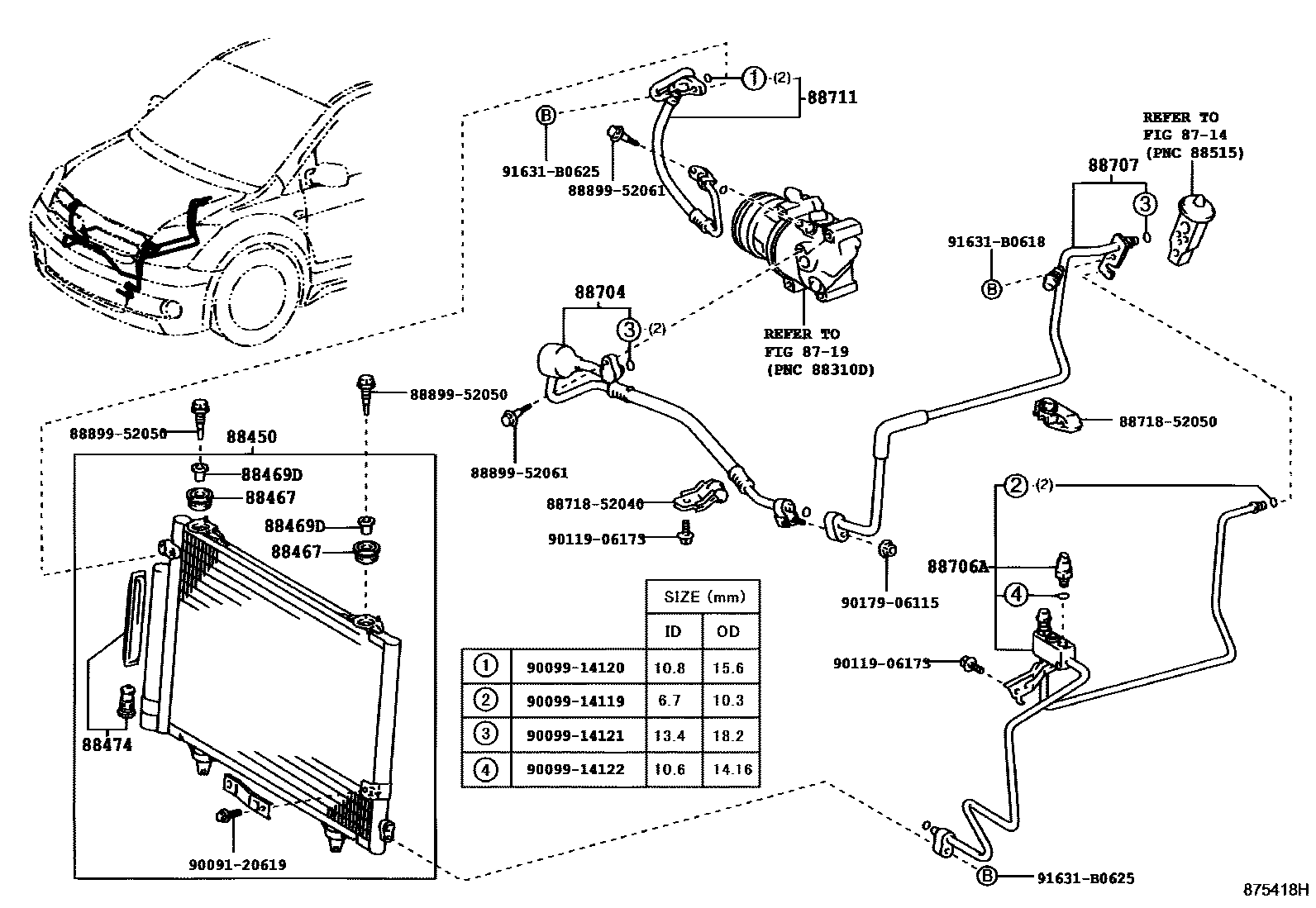

HEATING & AIR CONDITIONING - COOLER PIPING

8714

8719

88450CONDENSER ASSY, W/RECEIVER

main88450-52110iNCP6#200204-200303

sub88450-52111

main88450-52111iNCP6#200303-200505

sub88450-52112

sub88688-52370

sub91631-J0612

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iNCP6#200204-200505

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iNCP6#200204-200505

88474DRYER, COOLER

main88474-17010iNCP6#200204-200505

88704HOSE SUB-ASSY, SUCTION

main88704-52050iNCP6#200204-200505

sub88704-46040

88706ATUBE SUB-ASSY, LIQUID, A

main88706-52040iNCP6#200204-200505

main88706-52200iNCP61200304-200505

88707PIPE SUB-ASSY, SUCTION

main88707-46010iNCP61200304-200505

main88707-52030iNCP6#200204-200505

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-52090iNCP6#200204-200307

sub88711-52091

main88711-52091iNCP6#200307-200505

8871852040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52040

8871852050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52050

8889952050COVER, EVAPORATOR

main88899-52050

8889952061COVER, EVAPORATOR

main88899-52061

9009120619

main90091-20619

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9011906173

main90119-06173

9017906115

main90179-06115

91631B0618

main91631-B0618

91631B0625

main91631-B0625

23 parts on this diagram · 1 diagram in section
