WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-1A070iNCP6#200204-200505

sub85110-1A050

85160LINK ASSY, WINDSHIELD WIPER

main85150-52140iNCP6#200204-200505

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iNCP6#200204-200505

85211BARM, FRONT WIPER, RH

main85211-52140iNCP6#200204-200505

85212ABLADE, FR WIPER, RH

main85212-52050iNCP6#200204-200505

sub85212-46010

85214ARUBBER, WIPER, RH

main85214-48010iNCP6#200204-200505

85214BRUBBER, WIPER, LH

main85214-50060iNCP6#200312-200607

sub85214-50061

main85214-50061iNCP6#200608

main85214-50130iNCP6#..F,S200204-200312

sub85214-50060

85221BARM, FRONT WIPER, LH

main85221-52140iNCP6#200204-200505

85222ABLADE, FR WIPER, LH

main85222-52040iNCP6#..F,S200204-200312

sub85222-52150

main85222-52150iNCP6#200312-200607

sub85222-52151

main85222-52151iNCP6#200608

sub85222-13041

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22090iNCP6#200204-200505

main85291-22100iNCP6#200204-200505

85291BBLADE, FRONT WIPER, WINTER, LH

9011906941

main90119-06941

9017908113

main90179-08113

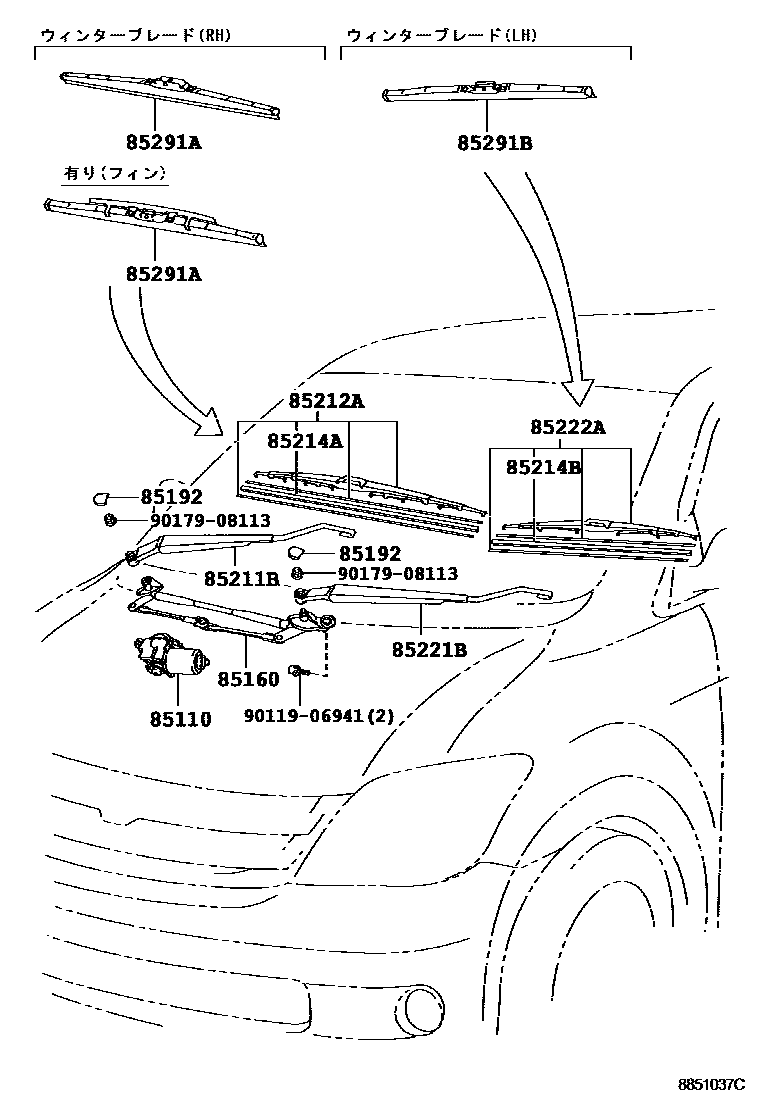

13 parts on this diagram · 1 diagram in section
