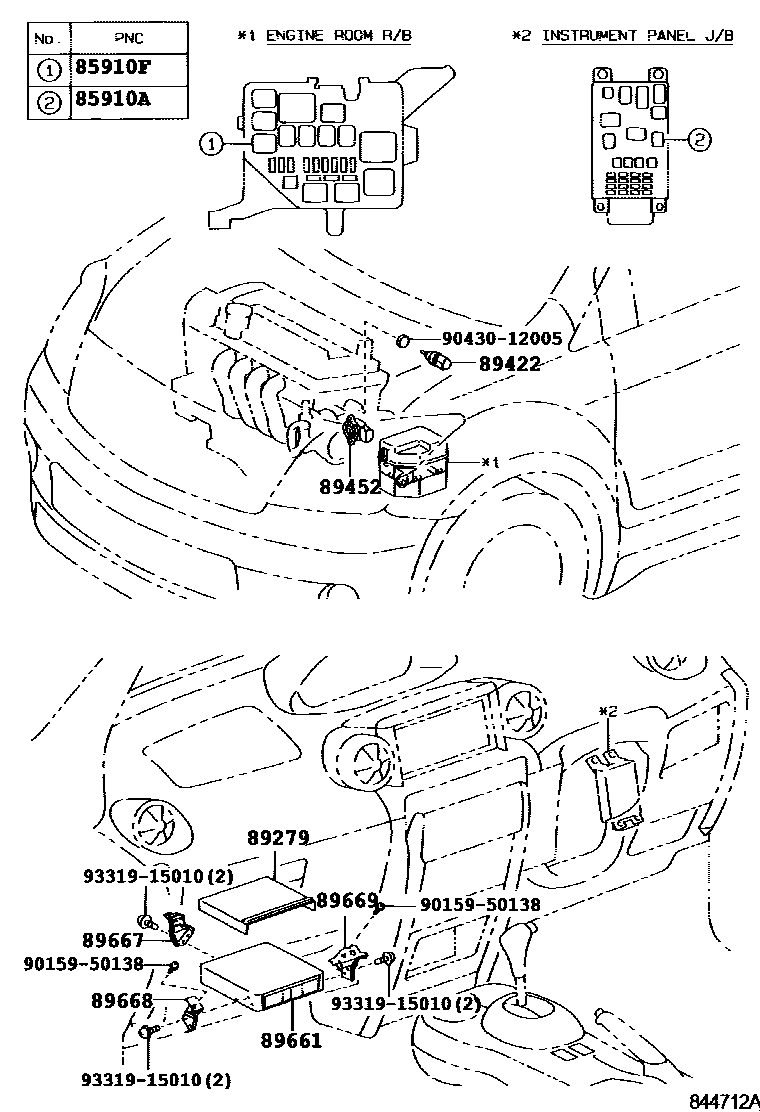

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iNCP6#200204-200212

main90987-02027iNCP6#200212-200707

85910FRELAY, COMPUTER (FOR EFI)

main90987-02022iNCP6#200204-200212

main90987-02027iNCP6#200212-200505

89279COVER, ENGINE CONTROL COMPUTER

main89279-52100iNCP6#200204-200505

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iNCP6#200204-200505

main89422-16010iNCP6#200505-200707

main89422-22030iNCP6#200204-200505

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iNCP6#200204-200707

89661COMPUTER, ENGINE CONTROL

main89661-52790iNCP60200204-200505

main89661-52840iNCP61..S200204-200304

main89661-52850iNCP65..F,S200204-200304

main89661-52C90iNCP60200505

main89661-5C100iNCP61200304-200505

main89666-52410iNCP65200304-200505

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52130iNCP6#200204-200505

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52140iNCP6#200204-200505

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52090iNCP6#200204-200505

9015950138

main90159-50138

9043012005

main90430-12005

9331915010

main93319-15010

12 parts on this diagram · 1 diagram in section
