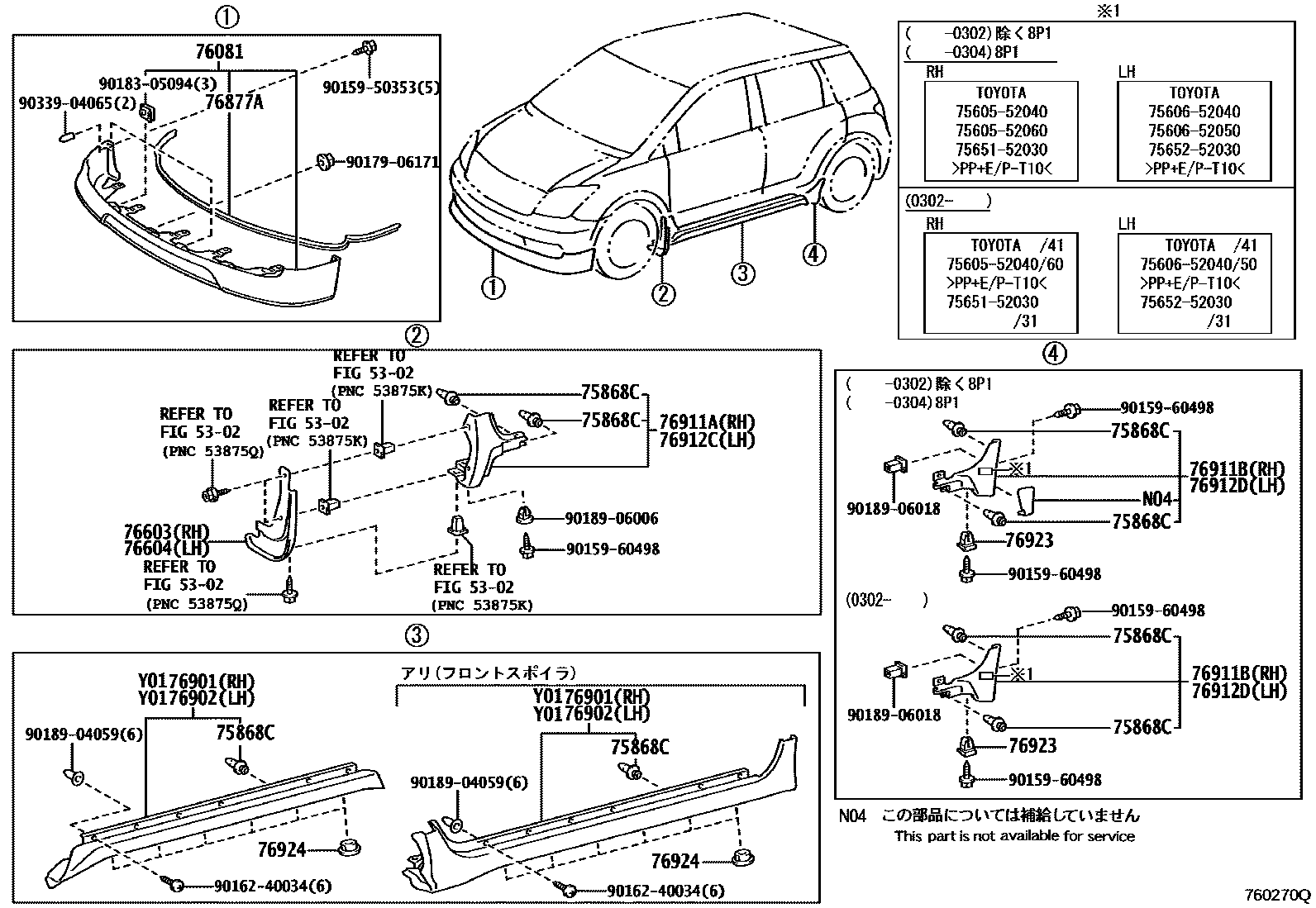

MUDGUARD & SPOILER
5302
75868CCLIP, REAR SPOILER, NO.2
76081SPOILER SUB-ASSY, FRONT
main76081-52050
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76877APROTECTOR, FRONT SPOILER
76901MUDGUARD SUB-ASSY, SIDE, RH
76902MUDGUARD SUB-ASSY, SIDE, LH
76911AMUDGUARD, FENDER PANEL, RH
WHITE PM.,057
WHITE,068
WHITE PEARL CS.,064
DK.GRAY MC.,1E0
SILVER M.M.,1E7
BLACK MC.,209
SUPER RED 5,3P0
DK. RED M.M.,3Q3
LT.OLIVE ME.,6U4
DK.BLUE M.M.,8P4
LT. BLUE M.M.,8S9
76911BMUDGUARD, SIDE, RH
WHITE,068
WHITE PM.,057
SILVER ME.,199
GRAY M.M.,1E3
SILVER M.M.,1E7
BLACK MC.,209
SUPER RED 5,3P0
BEIGE ME.,4R0
YELLOW PM.,595
LT. AQUA ME.OP,761
DK.BLUE M.M.,8P4
76912CMUDGUARD, FENDER PANEL, LH
76912DMUDGUARD, SIDE, LH
WHITE,068
WHITE PM.,057
SILVER ME.,199
GRAY M.M.,1E3
SILVER M.M.,1E7
BLACK MC.,209
SUPER RED 5,3P0
BEIGE ME.,4R0
YELLOW PM.,595
LT. AQUA ME.OP,761
DK.BLUE M.M.,8P4
76923RETAINER, SIDE MUDGUARD
76924RETAINER, SIDE MUDGUARD, NO.2
9015950353
main90159-50353
9015960498
main90159-60498
9016240034
main90162-40034
9017906171
main90179-06171
9018305094
main90183-05094
9018904059
main90189-04059
9018906006
main90189-06006
9018906018
main90189-06018
9033904065
main90339-04065
23 parts on this diagram · 3 diagrams in section
