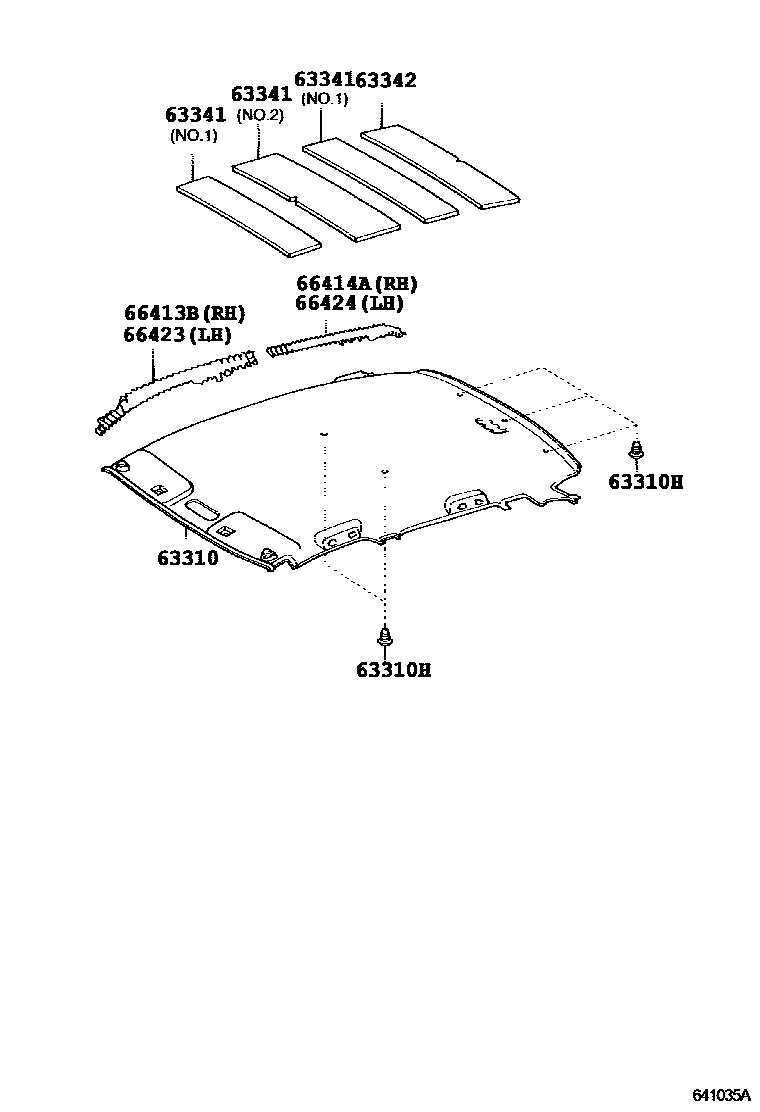

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63310HEADLINING ASSY, ROOF

main63310-52420-B0iNCP60,65..F200204-200304

LT. GRAY,TRIM1#

main63310-52420-B0iNCP60,65..F200204-200304

LT. GRAY,TRIM1#,9#

main63310-52800-B0iNCP60,65..F200304-200505

LT. GRAY,TRIM1#,9#

main63310-52800-B0iNCP60,65..F200304-200707

LT. GRAY,TRIM1#

63310HCLIP(FOR ROOF HEADLINING)

main90467-08213-B0iNCP60,65..F200204-200707

LT.GRAY,TRIM1#

main90467-08213-B0iNCP60,65..F200204-200505

LT.GRAY,TRIM1#,9#

63341PAD, ROOF SILENCER, NO.1

main63341-12160iNCP6#200204-200606

main63341-52210iNCP6#200606

main63343-12050iNCP6#200204-200606

main63343-52090iNCP6#200606

63342PAD, ROOF SILENCER, NO.2

main63342-52080iNCP6#200204-200606

main63342-52150iNCP6#200606

66413BSPACER, SIDE RAIL, FRONT RH

main66413-52090iNCP6#..F,S200204-200304

main66413-52130iNCP6#200304-200505

66414ASPACER, SIDE RAIL, REAR RH

main66414-52100iNCP6#..F,S200204-200304

sub66414-52101

main66414-52101iNCP6#200304-200505

66423SPACER, SIDE RAIL, FRONT LH

main66423-52080iNCP6#..F,S200204-200304

main66423-52150iNCP6#200304-200505

66424SPACER, SIDE RAIL, REAR LH

main66424-52060iNCP6#..F,S200204-200304

sub66424-52061

main66424-52061iNCP6#200304-200505

8 parts on this diagram · 2 diagrams in section
