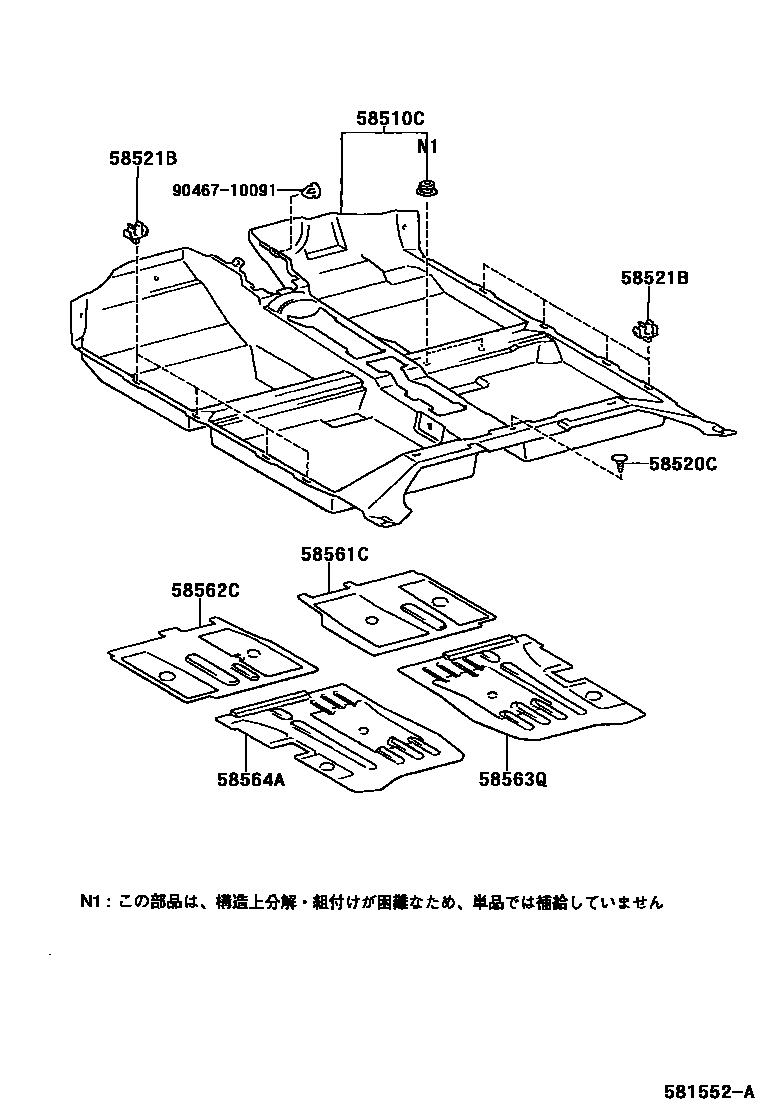

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-5C010-B0iNCP60200204-200505

LT.GLAY,TRIM9#

main58510-5C010-B1iNCP60,61200204-200707

GRAY,TRIM1#

main58510-5C020-B0iNCP60200204-200505

main58510-5C020-B1iNCP60,61200204-200707

main58510-5C030-B0iNCP65..F200204-200505

LT.GLAY,TRIM9#

main58510-5C030-B1iNCP65200204-200707

GRAY,TRIM1#

main58510-5C040-B0iNCP65..F200204-200505

main58510-5C040-B1iNCP65200204-200707

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-P2iNCP6#200204-200707

DK.GRAY,TRIM1#

sub90467-06016

sub90467-07049

main90467-06016-P3iNCP60,65..F200204-200505

LT.GRAY,TRIM9#

sub90467-06016

sub90467-07049

58521BHOOK, FLOOR CARPET

main58521-52010iNCP6#200204-200505

58561CSILENCER, FRONT FLOOR, NO.1

main58561-52070iNCP60,61200204-200505

sub58561-52071

main58561-52080iNCP65200204-200505

sub58561-52081

58562CSILENCER, FRONT FLOOR, NO.2

main58562-52020iNCP6#200204-200505

sub58562-52021

58563QSILENCER, FRONT FLOOR, NO.3

main58563-52010iNCP60,61200204-200505

sub58563-52011

main58563-52020iNCP65200204-200505

sub58563-52021

58564ASILENCER, FRONT FLOOR, NO.4

main58564-52010iNCP6#..F,S200204-200301

sub58564-52040

main58564-52040iNCP6#200301-200505

sub58564-52041

9046710091

main90467-10091

8 parts on this diagram · 1 diagram in section
