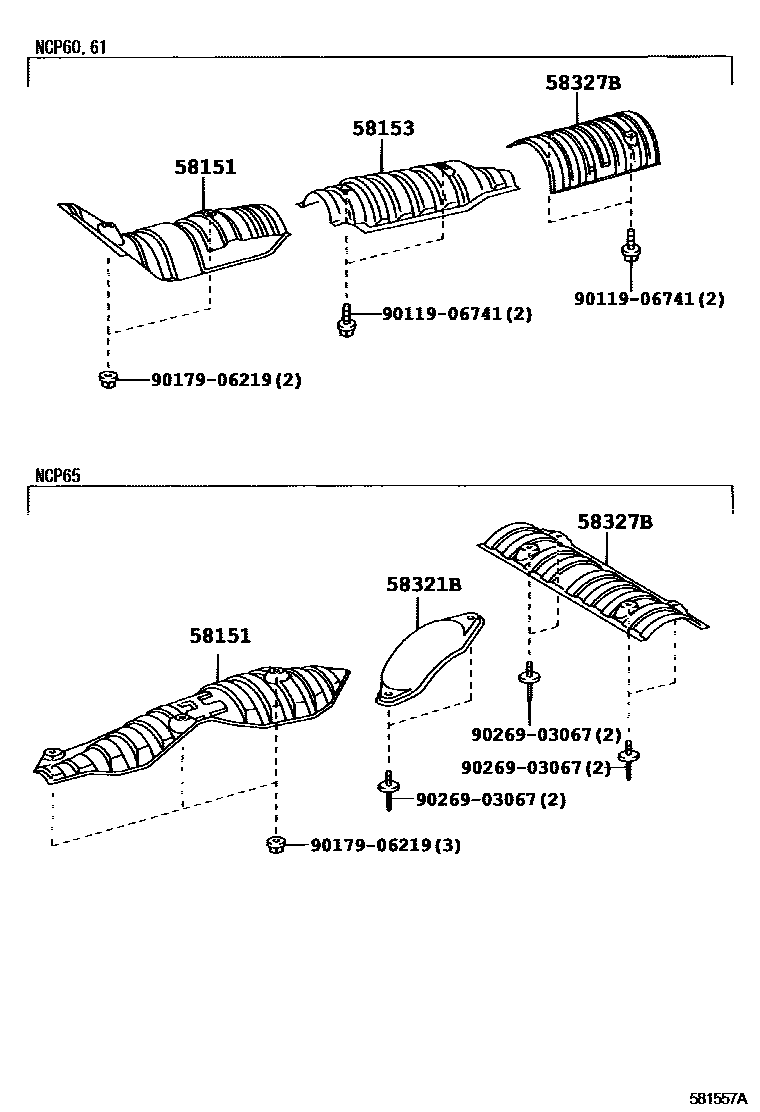

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-52020iNCP65200204-200505

sub58151-52021

main58151-52030iNCP60,61200204-200505

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-52011iNCP60,61200204-200505

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-10031iNCP65200204-200505

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52020iNCP65200204-200505

main58327-52050iNCP60,61200204-200505

9011906741

main90119-06741

9017906219

main90179-06219

9026903067

main90269-03067

7 parts on this diagram · 1 diagram in section
