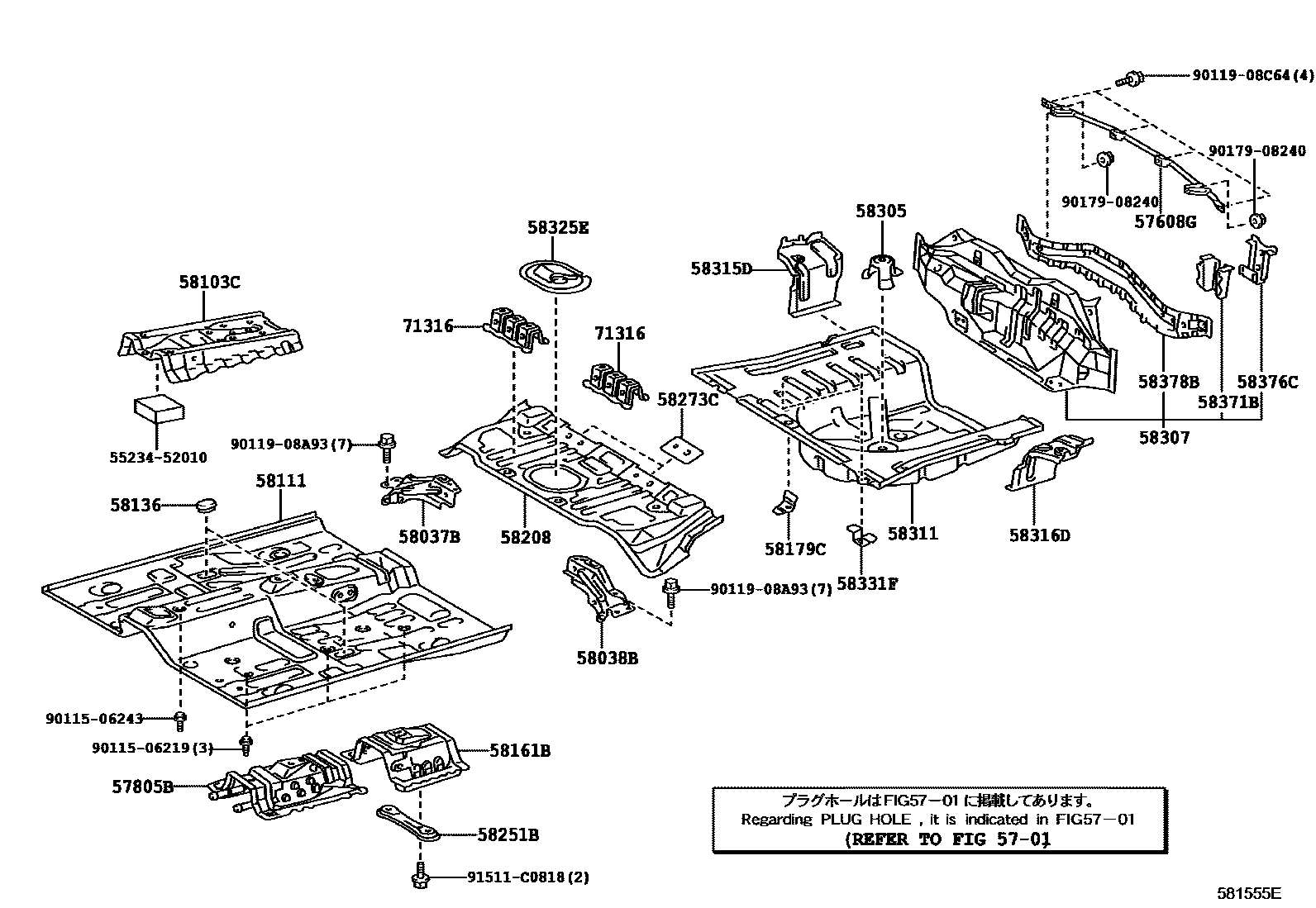

FLOOR PAN & LOWER BACK PANEL
5701
57608GBRACE SUB-ASSY, SIDE MEMBER TO FLOOR
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
58037BREINFORCE, CENTER PILLAR TO FLOOR, RH
58038BREINFORCE, CENTER PILLAR TO FLOOR, LH
58136COVER, FRONT FLOOR HOLE
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58179CBRACKET, CLAMP FLOOR
58208PAN, CENTER FLOOR
58251BBRACE, FLOOR PANEL, FRONT
58273CREINFORCEMENT, BELT ANCHOR TO CENTER FLOOR
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58371BPANEL, BODY LOWER BACK, OUTER
58376CBRACKET, LOWER BACK PANEL WEIGHT
58378BREINFORCEMENT, BODY LOWER BACK PANEL
71316BRACKET, REAR SEAT SUPPORT
5523452010SHEET, DASH PANEL INSULATOR, NO.2
main55234-52010
9011506219
main90115-06219
9011506243
main90115-06243
9011908A93
main90119-08A93
9011908C64
main90119-08C64
9017908240
main90179-08240
91511C0818
main91511-C0818
31 parts on this diagram · 2 diagrams in section
