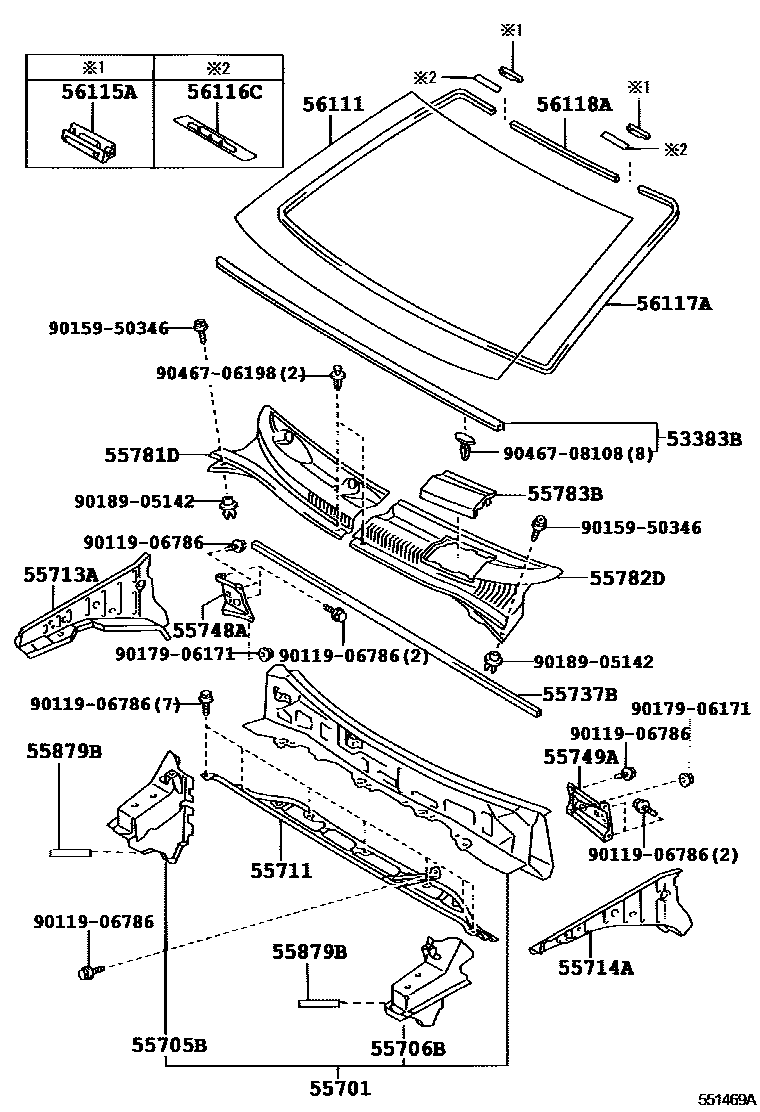

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52060iNCP6#200505

55701PANEL SUB-ASSY, COWL

main55700-52090iNCP6#200204-200505

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52050iNCP6#200204-200505

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52050iNCP6#200204-200505

55711PANEL, COWL TOP, OUTER

main55701-52090iNCP6#200204-200505

55713APANEL, COWL TOP SIDE, RH

main55713-52060iNCP6#200204-200505

55714APANEL, COWL TOP SIDE, LH

main55714-52060iNCP6#200204-200505

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52010iNCP6#200204-200505

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-52060iNCP6#200204-200505

55749ABRACE, COWL TOP INNER TO PILLAR, LH

main55749-52050iNCP6#200204-200505

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-52140supersedes 55781-52130iNCP6#200204-200505

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-52140supersedes 55782-52130iNCP6#200505

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52100iNCP6#200204-200505

55879BSEAL, COWL VENT

main55879-52030×2iNCP6#200308-200505

56111GLASS, WINDSHIELD

main56101-52140iNCP6#..F,S200204-200304

main56101-52141iNCP6#..F,S200304-200411

main56101-52142iNCP6#200412-200505

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iNCP6#200204-200505

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iNCP6#200204-200505

56117ADAM, WINDOW GLASS ADHESIVE

main56117-52010iNCP6#200204-200505

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-52040iNCP6#200204-200505

sub56117-74010

9011906786

main90119-06786

9015950346

main90159-50346

9017906171

main90179-06171

9018905142

main90189-05142

9046706198

main90467-06198

9046708108

main90467-08108

25 parts on this diagram · 1 diagram in section
