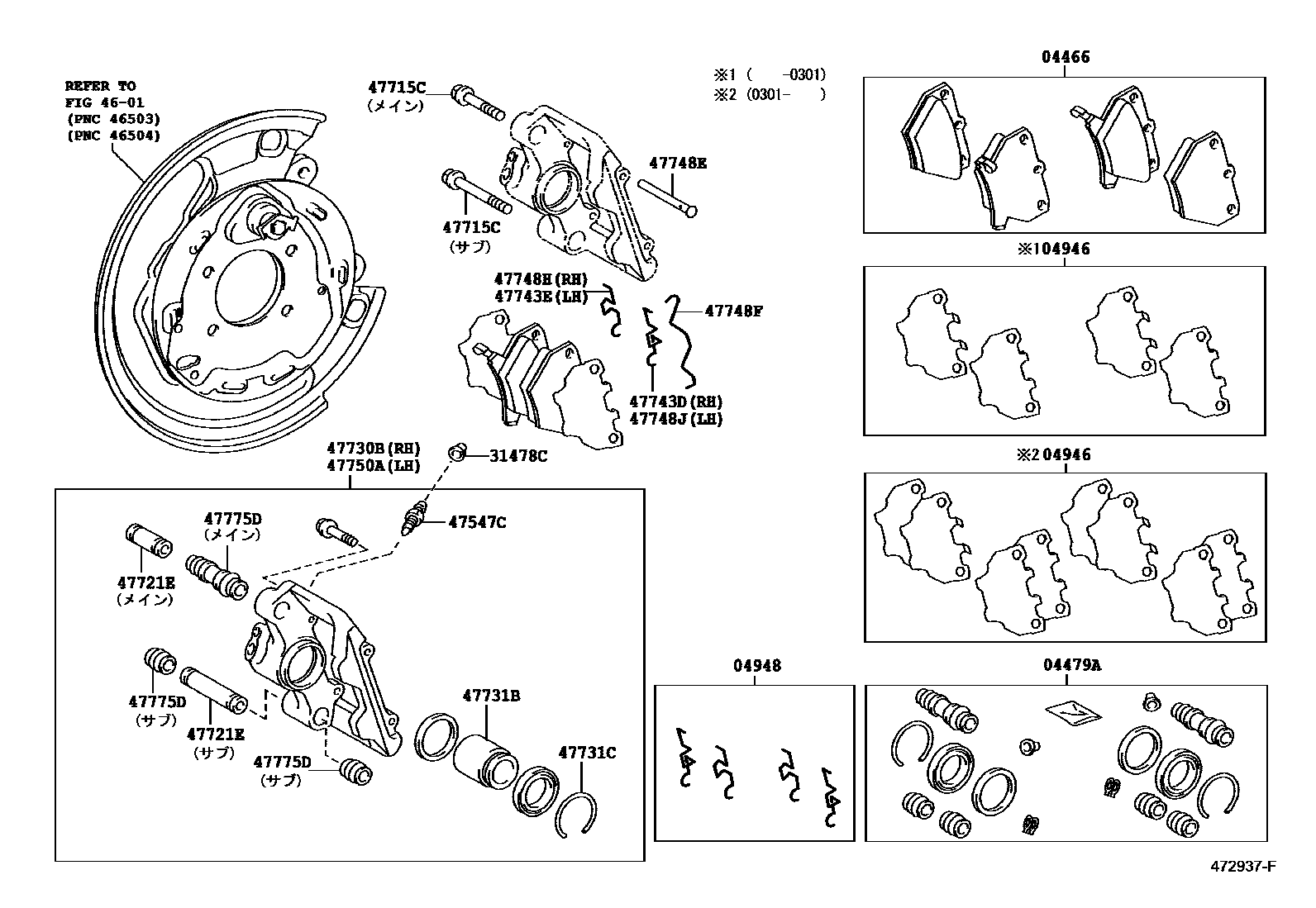

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52020iNCP61200204-200211

sub04466-52040

main04466-52040iNCP61200301-200409

main04466-52050iNCP61200211-200301

sub04466-52060

main04466-52090iNCP61200410-200505

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52010iNCP61200204-200505

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-20020iNCP61..S200204-200301

main04946-52010iNCP61200301-200505

04948FITTING KIT, DISC BRAKE, REAR

main04948-20010iNCP61200204-200505

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iNCP61200204-200505

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-35020iNCP61200204-200505

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-20030iNCP61200204-200505

main47715-20040iNCP61200204-200505

47721ECOLLAR(FOR REAR DISC BRAKE CYLINDER MOUNTING)

main90389-10053iNCP61200204-200505

main90389-10054iNCP61200204-200505

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-52040iNCP61..S200204-200301

main47730-52041iNCP61200301-200505

47731BPISTON, REAR DISC BRAKE

main47731-52020iNCP61200204-200505

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-37001iNCP61200204-200505

47743DSPRING, ANTI-RATTLE, NO.2 RH OUTER(FOR REAR DISC BRAKE)

main47743-20030iNCP61200204-200505

47743ESPRING, ANTI-RATTLE, NO.2 LH INNER(FOR REAR DISC BRAKE)

main47743-20030iNCP61200204-200505

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main90240-06021iNCP61200204-200505

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12025iNCP61200204-200505

47748HSPRING, ANTI-RATTLE, NO.1 RH INNER(FOR REAR DISC BRAKE)

main47748-20040iNCP61200204-200505

47748JSPRING, ANTI-RATTLE, NO.1 LH OUTER(FOR REAR DISC BRAKE)

main47748-20040iNCP61200204-200505

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-52040iNCP61..S200204-200301

main47750-52041iNCP61200301-200505

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22020iNCP61200204-200505

main47775-42010iNCP61200204-200505

20 parts on this diagram · 1 diagram in section
