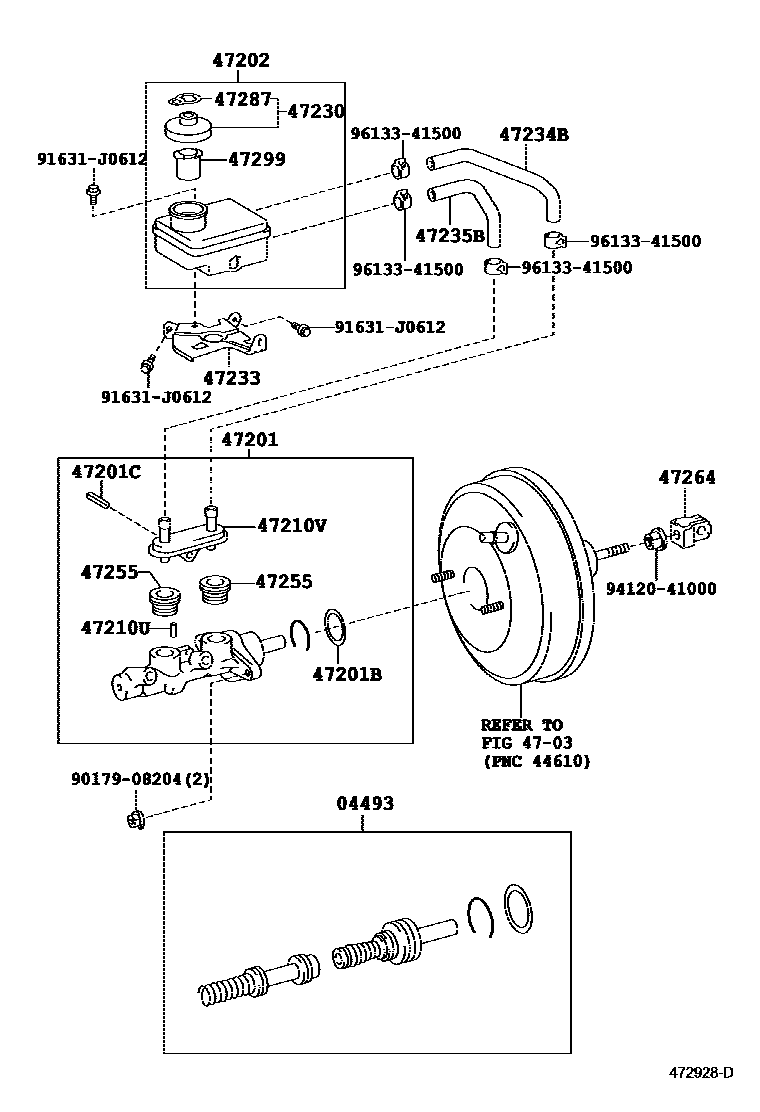

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-46010iNCP6#200305-200505

main04493-52020iNCP6#200204-200305

main04493-52050iNCP61200505

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-46040iNCP6#200305-200505

main47201-52180iNCP6#..F,S200204-200305

sub47201-46040

main47201-46020iNCP61200304-200505

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iNCP61200204-200305

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15804iNCP6#200204-200505

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52090iNCP6#200204-200505

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-14204iNCP6#200204-200505

47210VUNION(FOR BRAKE MASTER CYLINDER)

main90029-40407iNCP6#200204-200505

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28240iNCP6#200204-200505

47233BRACKET, RESERVOIR

main47233-52010iNCP6#200204-200505

47234BTUBE, RESERVOIR, NO.1

main47234-46010iNCP6#200505

main47234-52010iNCP6#200204-200505

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-46010iNCP6#200505

main47235-52010iNCP6#200204-200505

47255GROMMET, MASTER CYLINDER RESERVOIR

main31417-35010iNCP6#200204-200505

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-52010iNCP6#200204-200505

main47264-52040iNCP6#200505

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNCP6#200204-200505

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iNCP6#200204-200505

9017908204

main90179-08204

91631J0612

main91631-J0612

9412041000

main94120-41000

9613341500

main96133-41500

20 parts on this diagram · 1 diagram in section
