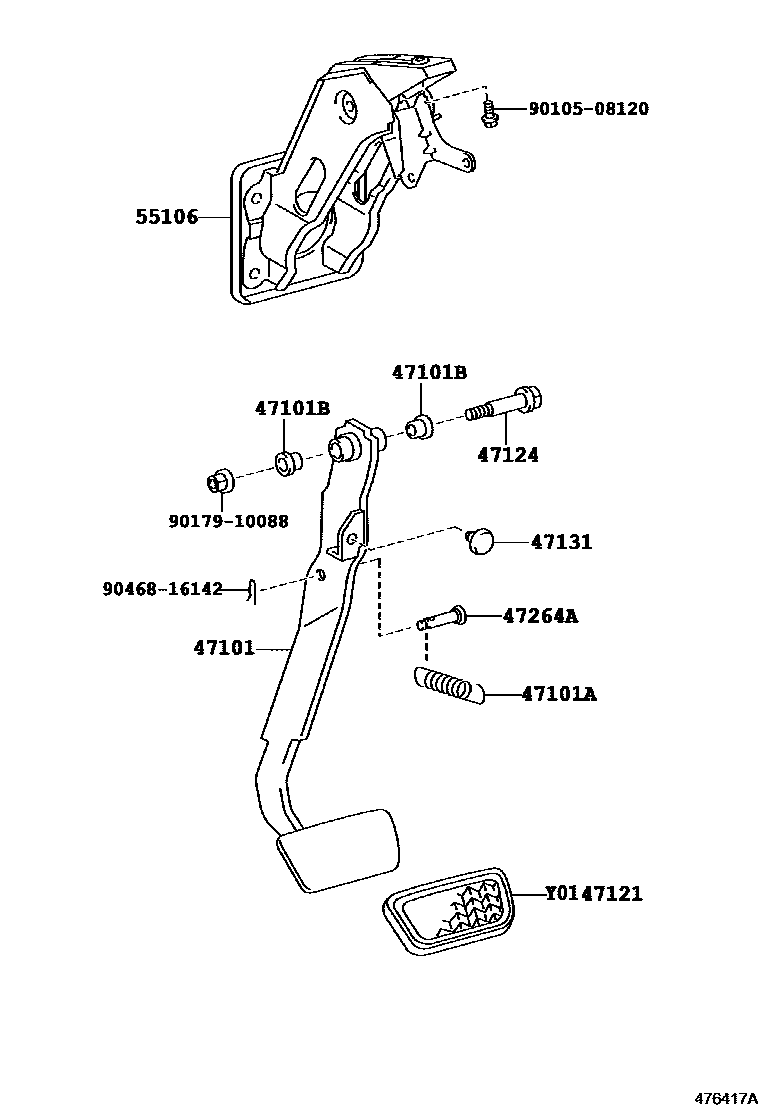

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52110iNCP6#200204-200505

main47101-52160iNCP6#200505

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCP6#200204-200505

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iNCP6#200204-200505

47121PAD, BRAKE PEDAL

main47121-52010iNCP6#200204-200505

47124SHAFT, BRAKE PEDAL

main90109-10167iNCP6#200204-200505

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iNCP6#200204-200505

47264APIN(FOR PUSH ROD)

main90249-08051iNCP6#200204-200505

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52090iNCP6#200204-200505

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

11 parts on this diagram · 1 diagram in section
