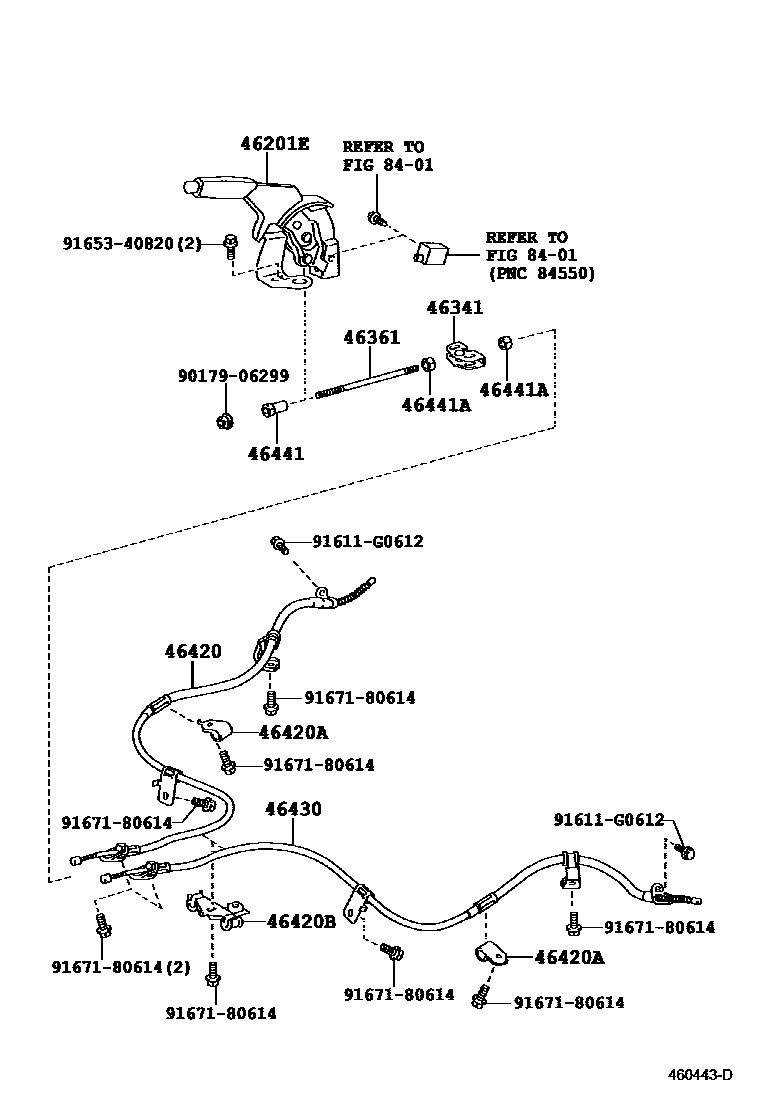

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1��(�� ����� �����)

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52050-B1iNCP60,65..F200204-200505

DK.GRAY,TRIM1#,9#

sub46201-52050

main46201-52050-B1iNCP61,65..S200204-200707

DK.GRAY,TRIM1#

sub46201-52050

46341EQUALIZER, PARKING BRAKE

main46341-52010iNCP6#200204-200505

46361ROD, PARKING BRAKE PULL

main46361-52010iNCP6#200204-200505

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52010iNCP60200204-200505

main46420-52030iNCP65..F,S200204-200302

sub46420-52031

main46420-52031iNCP65200302-200505

main46420-52080iNCP61200204-200505

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01B83iNCP65..F,S200204-200302

sub90949-01C31

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46451-52010iNCP65200204-200505

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52010iNCP60200204-200505

main46430-52030iNCP65..F,S200204-200302

sub46430-52031

main46430-52031iNCP65200302-200505

main46430-52080iNCP61200204-200505

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iNCP6#200204-200505

46441ANUT, WIRE ADJUSTING, NO.2

main90170-06014iNCP6#200204-200505

8401

9017906299

main90179-06299

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

14 parts on this diagram · 4 diagrams in section
