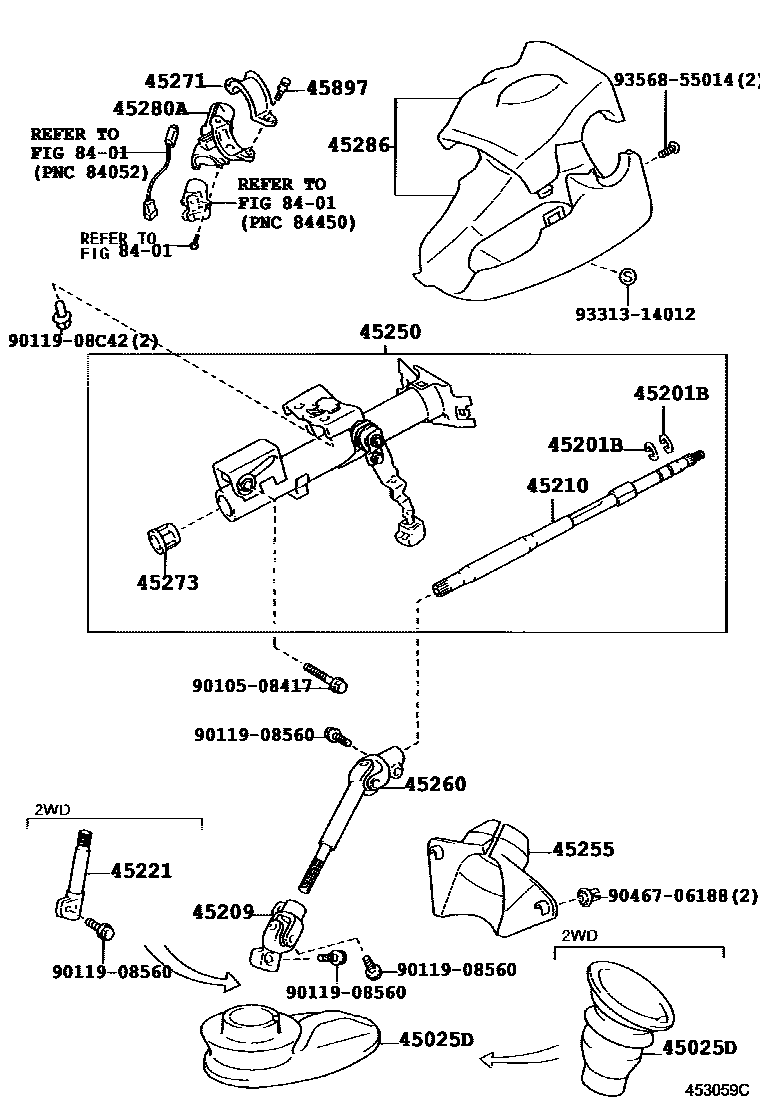

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52010iNCP60,61..F,S200204-200207

sub45025-52011

main45025-52011iNCP60,61200207-200505

main45025-52050iNCP65200204-200505

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iNCP6#200204-200505

main90520-17269iNCP6#200204-200505

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52020iNCP6#200204-200505

45210SHAFT ASSY, STEERING MAIN

main45210-52010iNCP6#200204-200505

45221SHAFT, STEERING INTERMEDIATE

main45297-52010iNCP60,61200204-200505

45250COLUMN ASSY, STEERING

main45250-52010iNCP6#200204-200505

45255PLATE, STEERING COLUMN HOLE COVER

main45255-52010iNCP60,61200204-200505

main45255-52030iNCP65200204-200505

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52010iNCP60,61200204-200505

main45260-52020iNCP65200204-200505

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iNCP6#200204-200505

45273BUSH, STEERING MAIN SHAFT

main45273-33030iNCP6#200204-200505

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-52030iNCP6#200204-200505

45286COVER, STEERING COLUMN

main45286-12967-B2iNCP6#200204-200505

DK.GRAY,TRIM1#,9#

sub45286-12967

main45286-12967-B2iNCP6#200204-200401

DK.GRAY,TRIM1#

sub45286-12967

45897BOLT, STEERING LOCK SET

main45897-12020iNCP6#200204-200505

8401

9010508417

main90105-08417

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

20 parts on this diagram · 1 diagram in section
