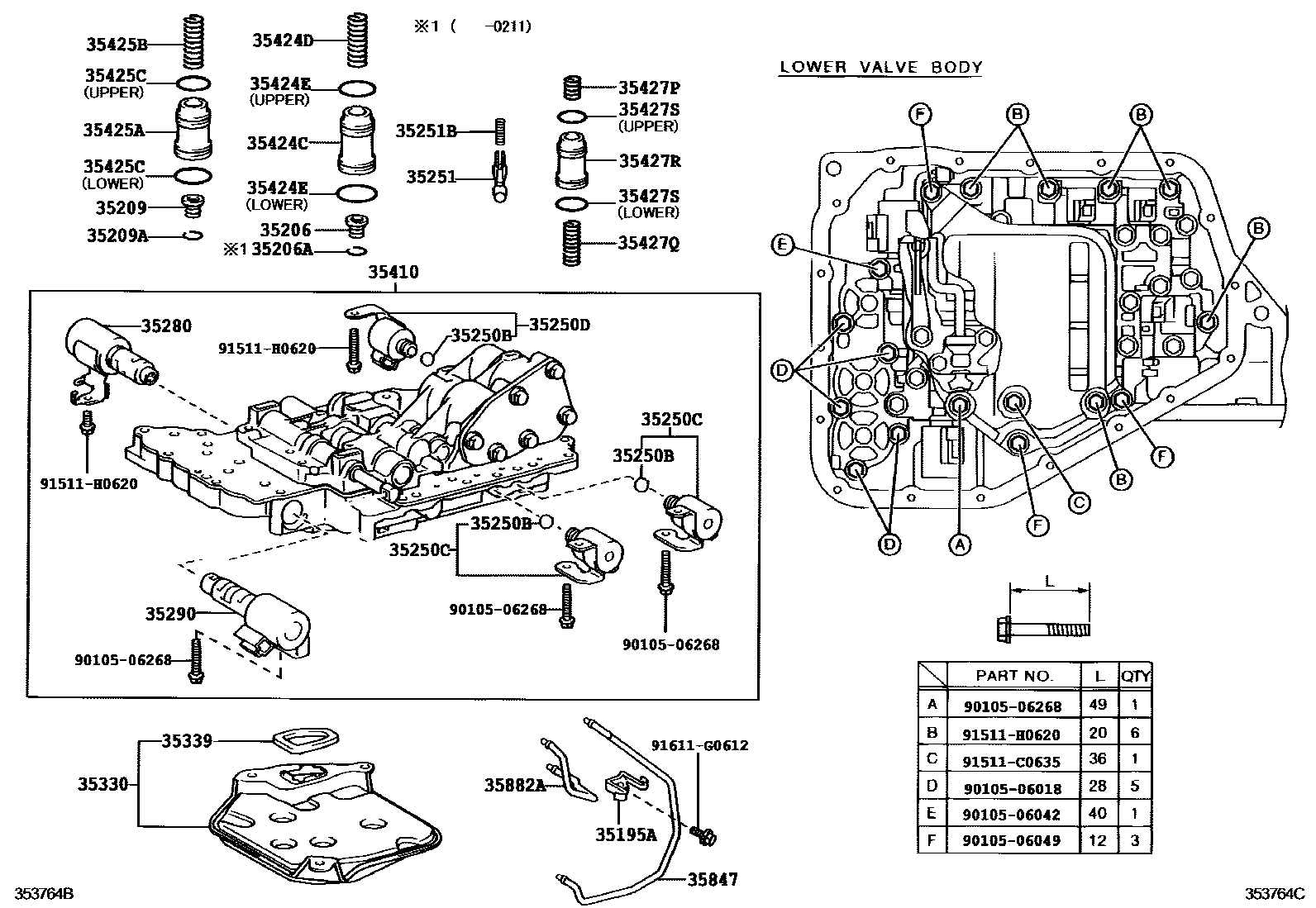

VALVE BODY & OIL STRAINER (ATM)

0001 1U441E 0002 1U340E,U340F 0003 1U441E,U340E,U340F

35195ACLAMP, TRANSAXLE APPLY TUBE, NO.1

main35195-52010iNCP60200505

35206SPRING SUB-ASSY, C-1 ACCUMULATOR

main35206-52010iNCP60..F200204-200211

main90905-01083iNCP60200211-200505

35206ARING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING)

main90521-22004iNCP60200204-200211

35209SPRING SUB-ASSY, C-2 ACCUMULATOR

main35209-52010iNCP60200204-200505

35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

main90521-22004iNCP60200204-200505

35250BRING, O NO.3(FOR TRANSMISSION SOLENOID)

main90301-06004×3iNCP60200204-200505

35250CSOLENOID ASSY, TRANSMISSION NO.1

main35250-52020×2iNCP60200204-200505

35250DSOLENOID ASSY, TRANSMISSION NO.2

main35250-52050iNCP60200204-200505

35251BODY, CHECK BALL

main35251-30020iNCP6#200204-200505

35251BSPRING, COMPRESSION(FOR CHECK BALL BODY)

main90501-03005iNCP60200204-200505

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-52010iNCP60200204-200505

main35280-52020iNCP61,65200204-200505

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-52010iNCP60200204-200505

35330STRAINER ASSY, VALVE BODY OIL

main35330-0W020iNCP61,65200204-200505

sub35330-0W021

main35330-52010iNCP60200204-200505

35339GASKET, OIL STRAINER

main35339-52010iNCP60200204-200505

main90301-32010iNCP61,65200204-200505

35410BODY ASSY, TRANSMISSION VALVE

main35410-52060iNCP61,65200204-200211

main35410-52061iNCP61,65200211-200303

main35410-52062iNCP61,65200505-200508

main35410-52090iNCP60200505

sub35410-52270

main35410-52190iNCP61,65200508

sub35410-52191

sub35330-0W021

35424CPISTON, C-1 ACCUMULATOR

main35424-52010iNCP60200204-200505

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-22046iNCP60200505

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-21011iNCP60200204-200505

main90301-29012iNCP60200204-200505

35425APISTON, C-2 ACCUMULATOR

main35405-52020iNCP61,65200204-200505

main35425-52010iNCP60200505

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-22042iNCP60200204-200505

main90501-24036iNCP61,65200505

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-21011iNCP60200505

main90301-22010iNCP61,65200505

main90301-29012iNCP60200204-200505

main90301-35004iNCP61,65200204-200505

35427PSPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON)

main90501-16165iNCP60200204-200505

35427QSPRING COMPRESSION, NO.2(FOR B1 ACCUMULATOR PISTON)

main90501-21029iNCP60200505

35427RPISTON B-1 ACCUMULATOR

main35427-52010iNCP60200204-200505

35427SRING, O(FOR B-1 ACCUMULATOR PISTON)

main90301-19016iNCP60200204-200505

main90301-29012iNCP60200204-200505

35847TUBE, TRANSMISSION LUBE APPLY

main35847-52010iNCP60200204-200505

35882ATUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-52010iNCP60200204-200505

9010506018

main90105-06018

9010506042

main90105-06042

9010506049

main90105-06049

9010506268

main90105-06268

91511C0635

main91511-C0635

91511H0620

main91511-H0620

91611G0612

main91611-G0612

34 parts on this diagram · 3 diagrams in section
