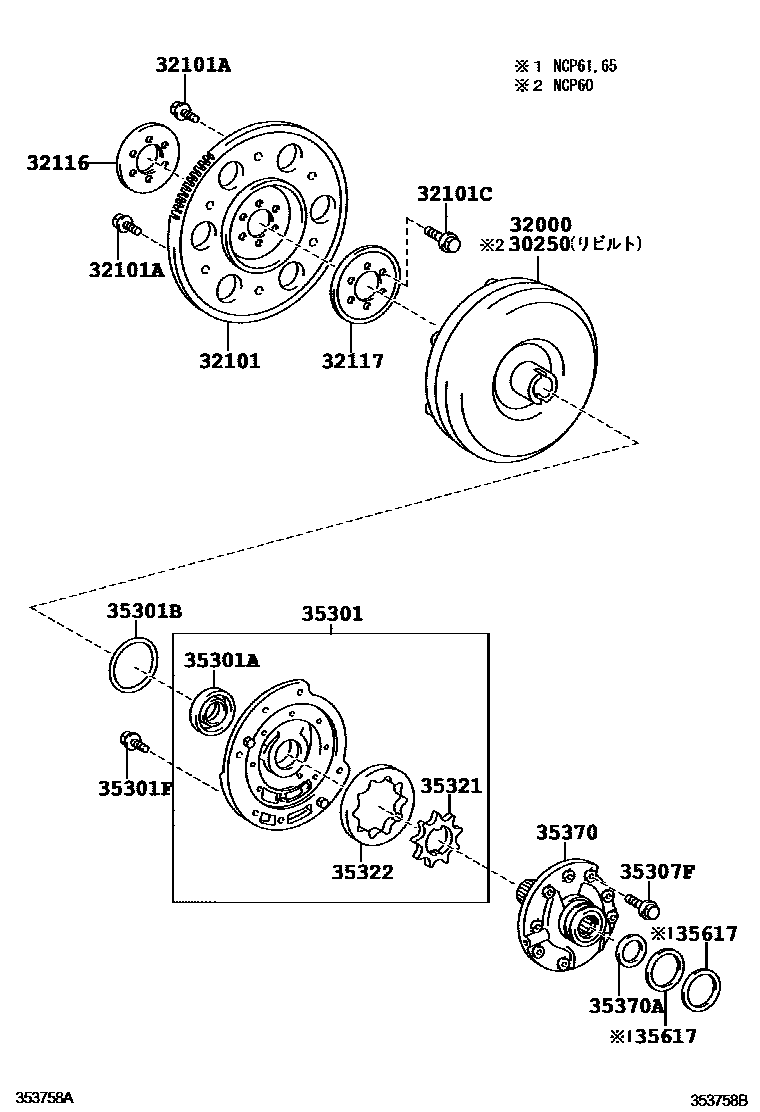

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-52020iNCP60..F200505-200602

main30250-52110iNCP60200602-200707

32000CONVERTER ASSY, TORQUE

main32000-52020iNCP60200505-200602

main32000-52040iNCP61,65200204-200505

main32000-52041iNCP61,65200612-200707

main32000-52110iNCP60200602-200707

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52020iNCP6#..F,S200204-200208

main32101-52021iNCP6#200208-200505

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iNCP6#..F,S200204-200404

main90109-08113iNCP6#200404-200505

main90119-08269×5iNCP6#..F,S200204-200404

main90119-08498×5iNCP6#200404-200505

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×6iNCP6#200204-200505

32116SPACER, DRIVE PLATE, FRONT

main32116-52030iNCP6#200204-200505

32117SPACER, DRIVE PLATE, REAR

main32117-52030iNCP6#200204-200505

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-52030iNCP60200204-200505

main35035-52040iNCP61,65200204-200505

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38064iNCP61,65200204-200505

main90311-38075iNCP60200204-200505

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99123iNCP60200505

main90301-99124iNCP61,65200204-200505

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08301×7iNCP61,65200204-200505

main90105-08376×6iNCP60200204-200505

35307FBOLT (FOR STATOR SHAFT)

main90119-06559×8iNCP60200204-200505

main90148-60027×10iNCP61,65200204-200505

35321GEAR, FRONT OIL PUMP DRIVE

main35321-52010iNCP60200505

main35321-52020iNCP60200505

main35321-52030iNCP60200505

main35321-52040iNCP60200204-200505

main35321-52050iNCP60200204-200505

main35321-52060iNCP61,65200204-200505

main35321-52070iNCP61,65200505

main35321-52080iNCP61,65200204-200505

main35321-52090iNCP61,65200204-200505

main35321-52100iNCP61,65200505

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-52010iNCP60200505

main35322-52020iNCP60200505

main35322-52030iNCP60200204-200505

main35322-52040iNCP60200505

main35322-52050iNCP60200204-200505

main35322-52060iNCP61,65200204-200505

main35322-52070iNCP61,65200204-200505

main35322-52080iNCP61,65200505

main35322-52090iNCP61,65200204-200505

main35322-52100iNCP61,65200204-200505

35370SHAFT ASSY, STATOR

main35370-52010iNCP60200204-200505

main35370-52030iNCP61,65200505-200512

main35370-52070iNCP61,65200601

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-26003iNCP61,65200204-200505

main90374-32007iNCP60200505

main90374-32008iNCP60200505

35617RING, CLUTCH DRUM OIL SEAL

main35613-52010×2iNCP61,65200204-200505

main35613-52020×2iNCP61,65200612

17 parts on this diagram · 1 diagram in section
