MANIFOLD

0001 1 0002 1

17111MANIFOLD, INTAKE

main17101-21020i2NZFE..NCP60200204-200301

sub17120-21010

main17101-21030i1NZFE..NCP61,65200204-200301

sub17120-21020

main17120-21010i2NZFE..NCP60200301-200505

main17120-21020i1NZFE..NCP61,65200301-200505

17141MANIFOLD, EXHAUST

main17141-21090i1NZFE..NCP61200204-200505

main17141-21100i2NZFE..NCP60200204-200505

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026i1NZFE,2NZFE..NCP6#200204-200505

main90126-08037i1NZFE,2NZFE..NCP6#200204-200505

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21060i1NZFE,2NZFE..NCP60,61200204-200505

main17167-21070i1NZFE..NCP65200204-200505

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21020i1NZFE,2NZFE..NCP6#200204-200505

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-21020i1NZFE,2NZFE..NCP6#200204-200505

sub17177-21030

2211

25591BRACKET, MANIFOLD SUPPORT

main25591-21020i1NZFE,2NZFE..NCP60,61200204-200505

main25591-21030i1NZFE..NCP65200204-200505

9017908228

main90179-08228

91631J0612

main91631-J0612

9164180835

main91641-80835

91641K0822

main91641-K0822

9167281025

main91672-81025

9415080801

main94150-80801

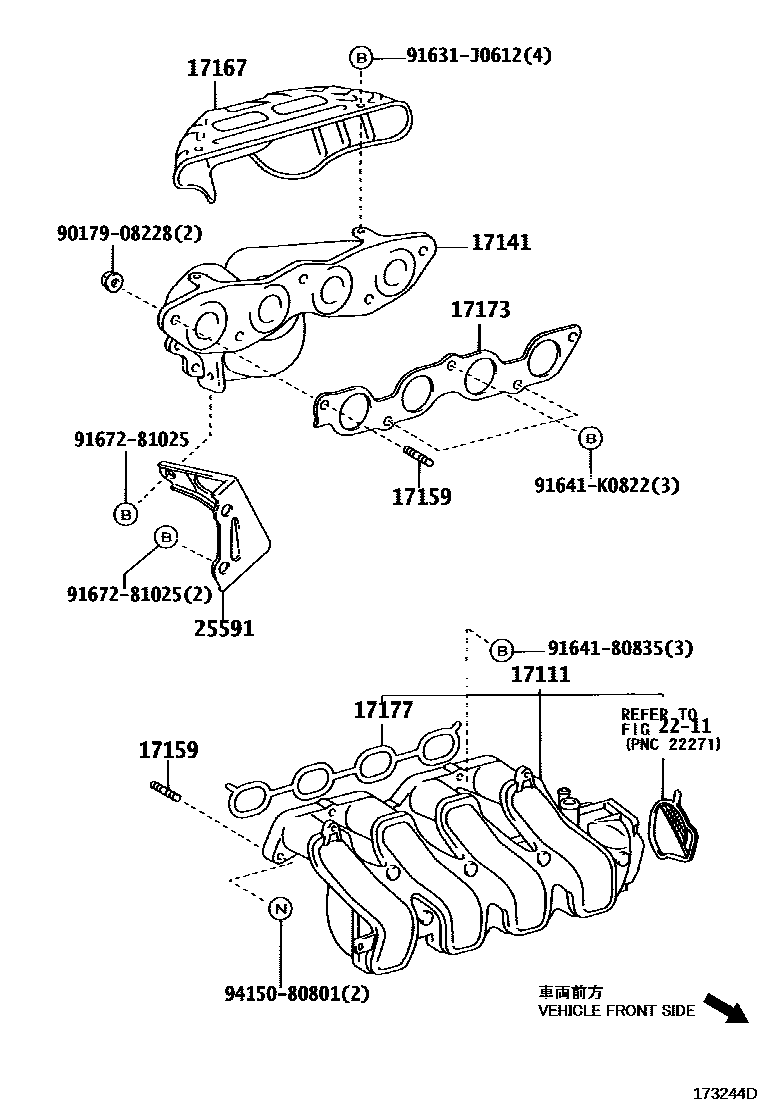

14 parts on this diagram · 2 diagrams in section
