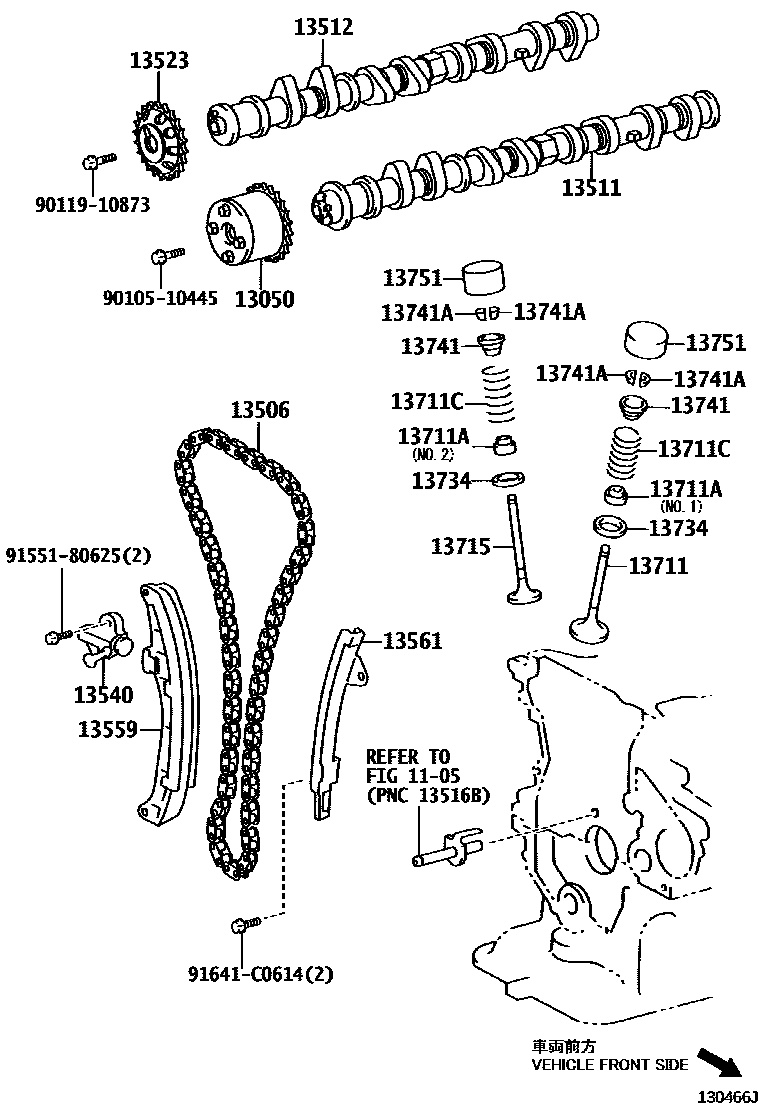

CAMSHAFT & VALVE

1105

13050GEAR ASSY, CAMSHAFT TIMING

main13050-21040i1NZFE,2NZFE..NCP6#200204-200602

sub13050-21041

main13050-21041i1NZFE,2NZFE..NCP6#200602

13506CHAIN SUB-ASSY

main13506-21020i1NZFE..NCP61,65200204-200505

sub13506-21050

sub13506-40010

main13506-21030i2NZFE..NCP60200204-200505

13511CAMSHAFT

main13501-21030i1NZFE,2NZFE..NCP6#200204-200505

13512CAMSHAFT, NO.2

main13502-21020i2NZFE..NCP60..F200204-200401

sub13502-21021

sub13523-22020

main13502-21021i2NZFE..NCP60200401-200505

main13502-21030i1NZFE..NCP61,65..F,S200204-200401

sub13502-21031

sub13523-22020

main13502-21031i1NZFE..NCP61,65200401-200505

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-21020i1NZFE,2NZFE..NCP6#..F,S200204-200401

main13523-22020i1NZFE,2NZFE..NCP6#200401-200505

13540TENSIONER ASSY, CHAIN, NO.1

main13540-21010i1NZFE,2NZFE..NCP6#..F,S200204-200308

sub13540-21020

main13540-21020i1NZFE,2NZFE..NCP6#200308-200505

13559SLIPPER, CHAIN TENSIONER

main13559-21010i1NZFE,2NZFE..NCP6#200204-200505

sub13559-21030

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-21010i1NZFE,2NZFE..NCP6#200204-200505

sub13561-21040

13711VALVE, INTAKE

main13711-21010i1NZFE,2NZFE..NCP6#200204-200505

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02092i1NZFE,2NZFE..NCP6#200204-200707

sub90913-02128

main90913-02093i1NZFE,2NZFE..NCP6#200204-200707

13711CSPRING, COMPRESSION(FOR OUTER)

main90905-01049i1NZFE,2NZFE..NCP6#200204-200505

sub90501-27040

13715VALVE, EXHAUST

main13715-21010i1NZFE,2NZFE..NCP6#200204-200505

13734SEAT, VALVE SPRING

main13734-74010i1NZFE,2NZFE..NCP6#200204-200505

13741RETAINER, VALVE SPRING

main13741-22021i1NZFE,2NZFE..NCP6#200204-200505

13741ALOCK, VALVE SPRING RETAINER

main90913-03031i1NZFE,2NZFE..NCP6#200204-200505

13751LIFTER, VALVE

main13751-46030i1NZFE,2NZFE..NCP6#200204-200505

main13751-46040i1NZFE,2NZFE..NCP6#200204-200505

main13751-46050i1NZFE,2NZFE..NCP6#200204-200505

main13751-46060i1NZFE,2NZFE..NCP6#200204-200505

main13751-46070i1NZFE,2NZFE..NCP6#200204-200505

main13751-46080i1NZFE,2NZFE..NCP6#200204-200505

main13751-46090i1NZFE,2NZFE..NCP6#200204-200505

main13751-46100i1NZFE,2NZFE..NCP6#200204-200505

main13751-46110i1NZFE,2NZFE..NCP6#200204-200505

main13751-46120i1NZFE,2NZFE..NCP6#200204-200505

main13751-46130i1NZFE,2NZFE..NCP6#200204-200505

main13751-46140i1NZFE,2NZFE..NCP6#200204-200505

main13751-46150i1NZFE,2NZFE..NCP6#200204-200505

main13751-46160i1NZFE,2NZFE..NCP6#200204-200505

main13751-46170i1NZFE,2NZFE..NCP6#200204-200505

main13751-46180i1NZFE,2NZFE..NCP6#200204-200505

main13751-46190i1NZFE,2NZFE..NCP6#200204-200505

main13751-46200i1NZFE,2NZFE..NCP6#200204-200505

main13751-46210i1NZFE,2NZFE..NCP6#200204-200505

main13751-46220i1NZFE,2NZFE..NCP6#200204-200505

main13751-46230i1NZFE,2NZFE..NCP6#200204-200505

main13751-46240i1NZFE,2NZFE..NCP6#200204-200505

main13751-46250i1NZFE,2NZFE..NCP6#200204-200505

main13751-46260i1NZFE,2NZFE..NCP6#200204-200505

main13751-46270i1NZFE,2NZFE..NCP6#200204-200505

main13751-46280i1NZFE,2NZFE..NCP6#200204-200505

main13751-46290i1NZFE,2NZFE..NCP6#200204-200505

main13751-46300i1NZFE,2NZFE..NCP6#200204-200505

main13751-46310i1NZFE,2NZFE..NCP6#200204-200505

main13751-46320i1NZFE,2NZFE..NCP6#200204-200505

main13751-46330i1NZFE,2NZFE..NCP6#200204-200505

main13751-46340i1NZFE,2NZFE..NCP6#200204-200505

main13751-46350i1NZFE,2NZFE..NCP6#200204-200505

main13751-46360i1NZFE,2NZFE..NCP6#200204-200505

main13751-46370i1NZFE,2NZFE..NCP6#200204-200505

9010510445

main90105-10445

9011910873

main90119-10873

9155180625

main91551-80625

91641C0614

main91641-C0614

21 parts on this diagram · 1 diagram in section
