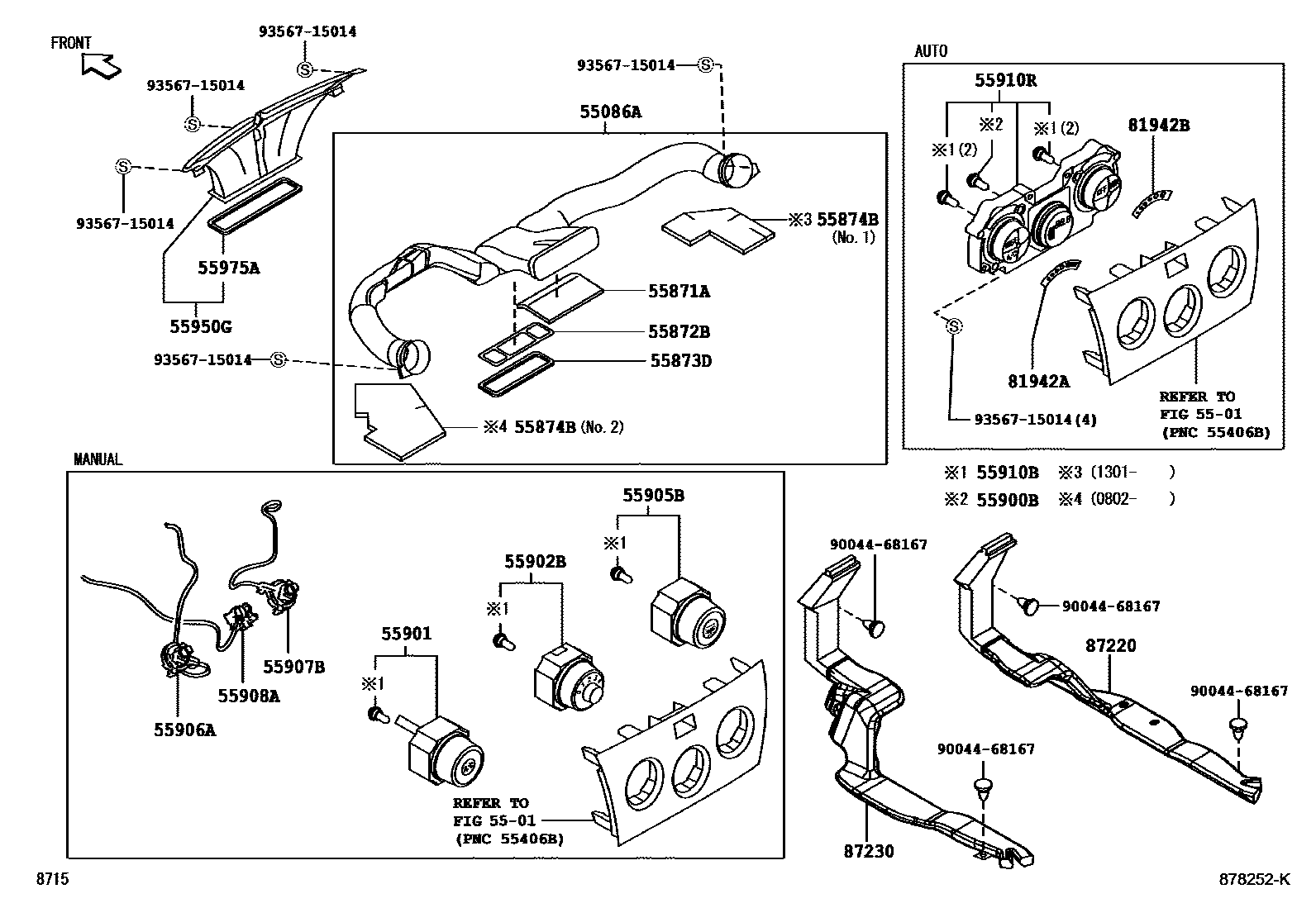

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501
55086ADUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55871ASEAL, AIR DUCT, NO.1
55872BSEAL, AIR DUCT,NO.2
55873DSEAL, AIR DUCT, CENTER
55900BBULB, AIR CONDITIONER CONTROL
55901BASE SUB-ASSY, HEATER CONTROL
55902BCONTROL SUB-ASSY, HEATER
55905BKNOB, HEATER CONTROL, NO.2
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55907BCABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55910BBULB, HEATER CONTROL
55910RCONTROL ASSY, HEATER
55950GNOZZLE ASSY, DEFROSTER
55975ASEAL, DEFROSTER NOZZLE, NO.1
81942ASHEET, HEATER CONTROL NAME, NO.1
81942BSHEET, HEATER CONTROL NAME, NO.2
87220DUCT ASSY, AIR
main87220-B1050
87230DUCT ASSY, AIR, HEATER
main87230-B1030
9004468167
main90044-68167
9356715014
main93567-15014
23 parts on this diagram · 2 diagrams in section
