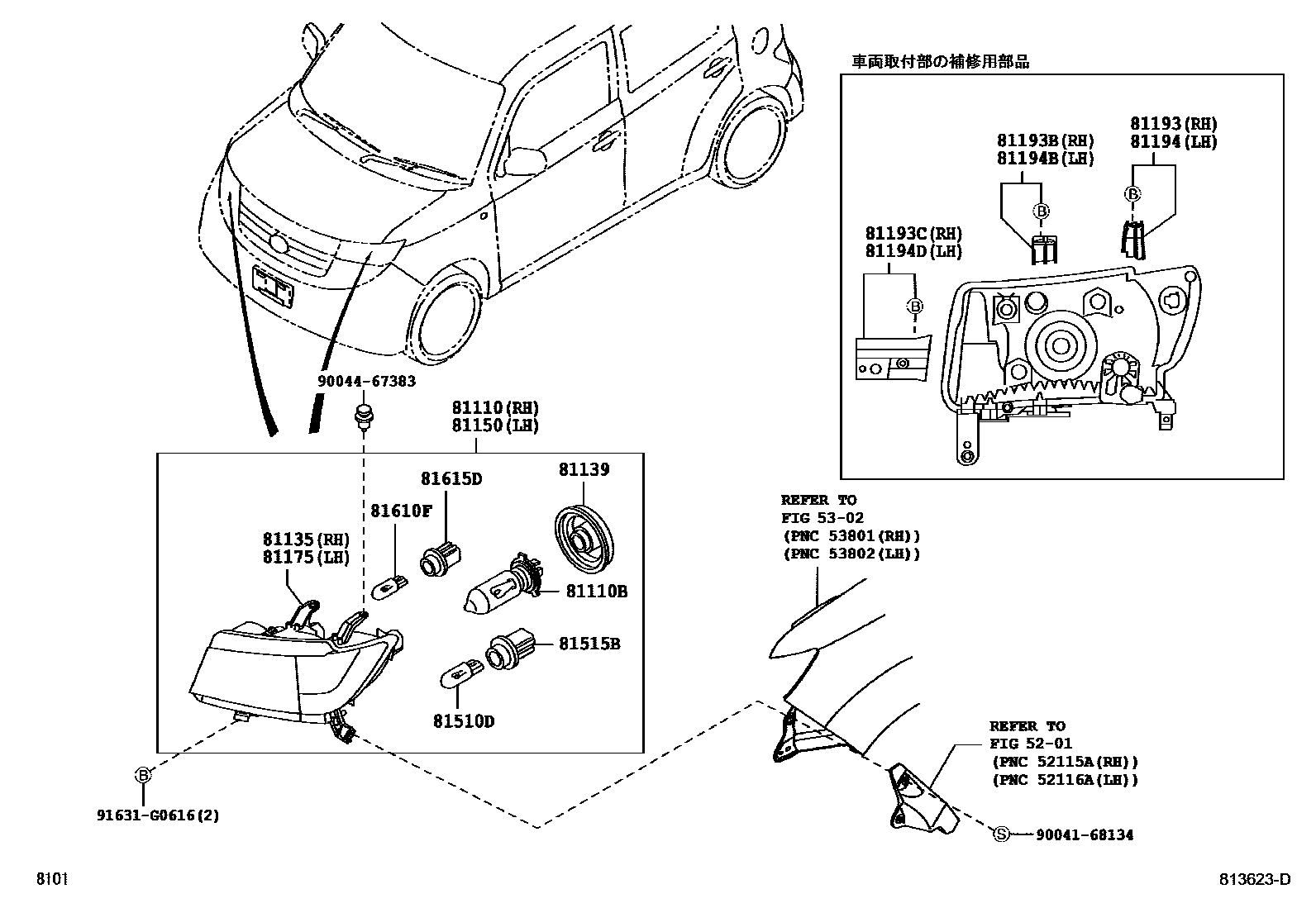

HEADLAMP
5201
5302
81110HEADLAMP ASSY, RH
81135UNIT ASSY, HEADLAMP, RH
81139COVER, HEADLAMP SOCKET
81150HEADLAMP ASSY, LH
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
sub99132-12050
81615DSOCKET, CLEARANCE LAMP
9004168134
main90041-68134
9004467383
main90044-67383
91631G0616
main91631-G0616
21 parts on this diagram · 3 diagrams in section
