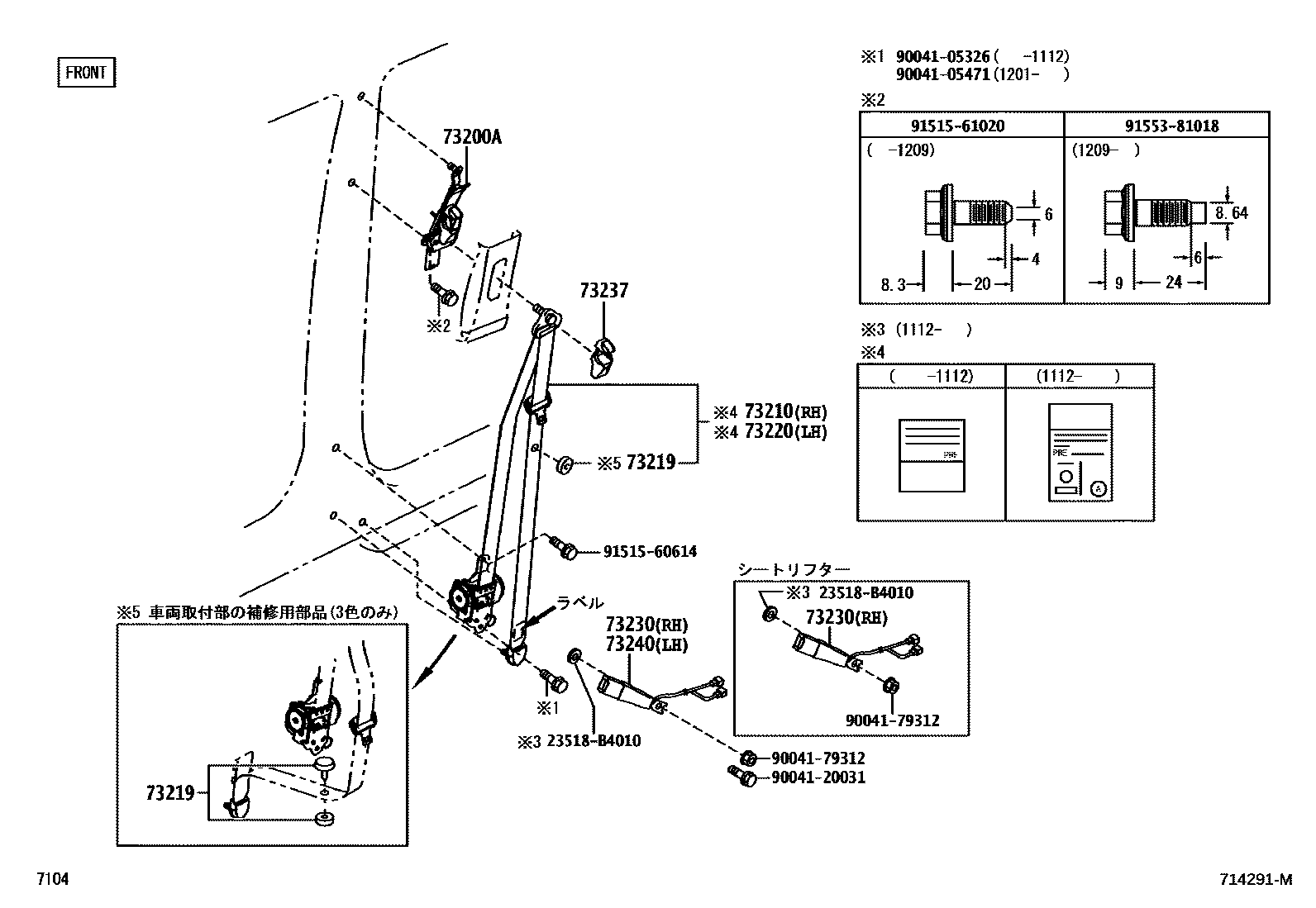

SEAT BELT & CHILD RESTRAINT SEAT
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
DK.GRAY,TRIM1#
73219STOPPER, TONGUE PLATE
73220BELT ASSY, FRONT SEAT OUTER, LH
DK.GRAY,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
73237COVER, SHOULDER BELT ANCHOR
73240BELT ASSY, FRONT SEAT INNER, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
23518B4010WASHER, WAVE(FOR ELASTIC FACE VALVE SET)
main23518-B4010
9004105326
main90041-05326
9004105471
main90041-05471
9004120031
main90041-20031
9004179312
main90041-79312
9151560614
main91515-60614
9151561020
main91515-61020
9155381018
main91553-81018
15 parts on this diagram · 2 diagrams in section
