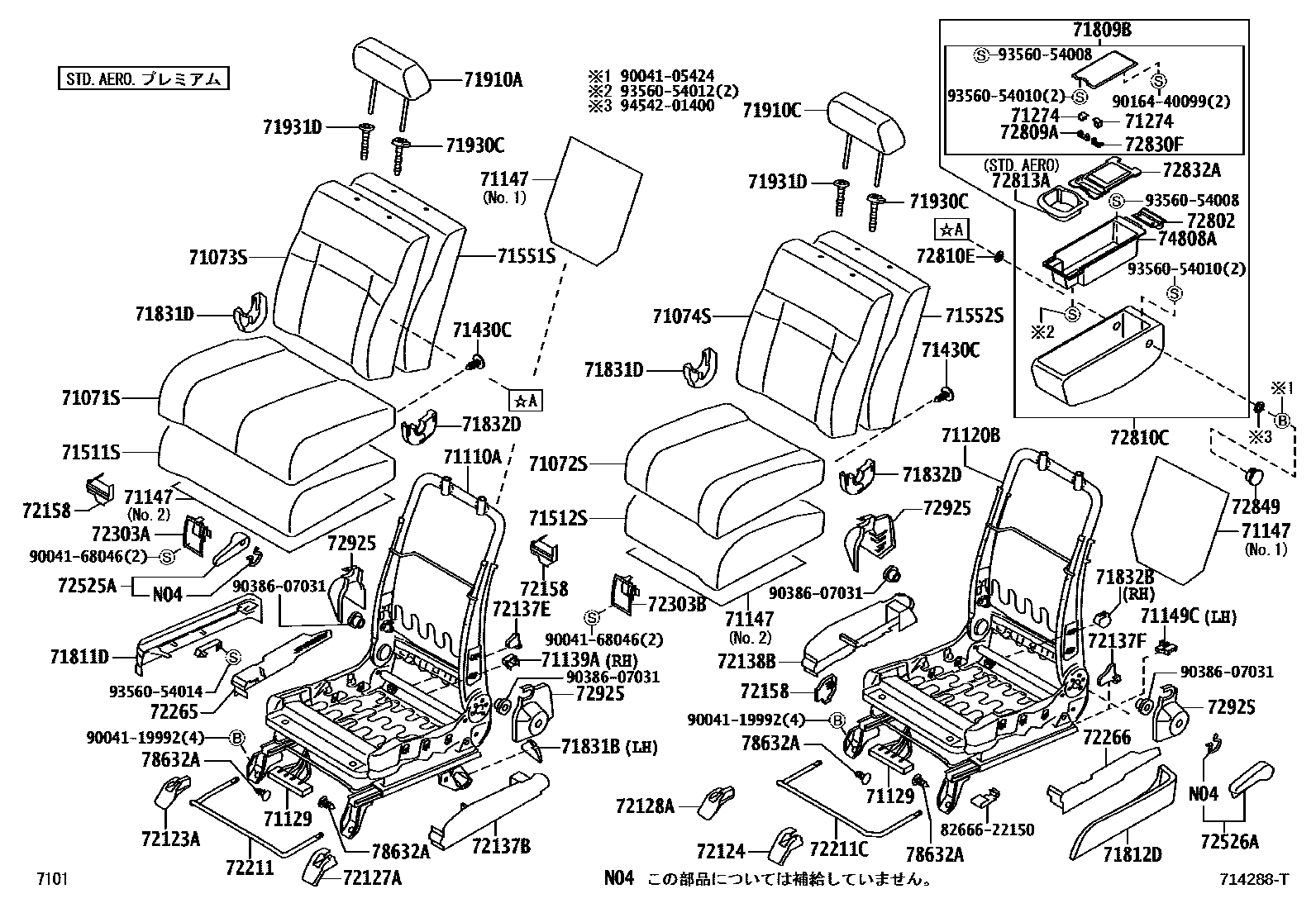

FRONT SEAT & SEAT TRACK

0001 1STD.AERO.PREMIUM 0002 1STD A/B.AERO A/B.PREMIUM A/B 0003 1������ 0004 1������ 0005 1������/������ 0006 1������� 0007 1������� 0008 1 0009 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-B1090-C1iQNC2#200601-200809

-,TRIM1#

main71071-B1360-B0iQNC2#200908-201302

OLIVEDRAB,TRIM11

main71071-B1360-C0iQNC2#200809-201607

-,TRIM1#

main71071-B1360-C0iQNC2#200908-201302

-,TRIM10

main71071-B1360-F0iQNC2#200809-201112

BEIGE,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-B1080-C1iQNC2#200601-200809

-,TRIM1#

main71072-B1340-B0iQNC2#200908-201302

OLIVEDRAB,TRIM11

main71072-B1340-C0iQNC2#200809-201607

-,TRIM1#

main71072-B1340-C0iQNC2#200908-201302

-,TRIM10

main71072-B1340-F0iQNC2#200809-201112

BEIGE,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-B1220-C1iQNC2#200601-200809

-,TRIM1#

sub71073-B1240¥26,500

main71073-B1860-B0iQNC2#200908-201302

OLIVEDRAB,TRIM11

sub71073-B1830¥19,100

main71073-B1860-C0iQNC2#200809-201607

-,TRIM1#

sub71073-B1830¥19,100

main71073-B1860-C0iQNC2#200908-201302

-,TRIM10

sub71073-B1830¥19,100

main71073-B1860-F0iQNC2#200809-201112

BEIGE,TRIM4#

sub71073-B1830¥19,100

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-B1320-C1iQNC2#200601-200809

-,TRIM1#

sub71074-B1340¥20,900

main71074-B1A80-B0iQNC2#200908-201302

OLIVEDRAB,TRIM11

sub71074-B1A50¥19,100

main71074-B1A80-C0iQNC2#200809-201607

-,TRIM1#

sub71074-B1A50¥19,100

main71074-B1A80-C0iQNC2#200908-201302

-,TRIM10

sub71074-B1A50¥19,100

main71074-B1A80-F0iQNC2#200809-201112

BEIGE,TRIM4#

sub71074-B1A50¥19,100

71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-B1050iQNC2#¥52,800200601-200704

sub71110-B1051¥52,800

sub71505-B1031¥7,600

main71110-B1051iQNC2#¥52,800200704-200809

sub71110-B1052¥76,600

main71110-B1061iQNC2#¥47,600200809-201406

sub71110-B1062¥54,800

main71110-B1062iQNC25¥54,800201407-201409

71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH

main71120-B1050iQNC2#¥52,800200601-200704

sub71120-B1051¥52,800

sub71506-B1051¥7,600

main71120-B1051iQNC2#¥52,800200704-200809

sub71120-B1052¥76,600

main71120-B1061iQNC25¥41,200200809-201409

71129PLATE, FRONT SEAT WIRE CONNECTING

main71129-B1010iQNC2#¥830200601-200809

71139ACOVER, FRONT SEAT LEG, NO.1

main71139-B1020-B0iQNC2#200601-200809

main71139-B1030-B0iQNC2#200809-201607

71147SILENCER, SEAT SPRING

main71147-B1010iQNC2#¥710200809

main71147-B1010iQNC2#¥710200601-200809

main71147-B1010iQNC2#¥710200809-201409

main71147-B1020iQNC20,21¥560200809-201409

main71147-B1070iQNC20,21;QNC25..Z¥710200601-200906

main71147-B1070iQNC2#¥710200704-200809

main71147-B1080iQNC2#¥650200601-200809

main71147-B1140iQNC25¥620200907-201409

71149CCOVER, FRONT SEAT LEG, LH (FOR LH SEAT)

main71149-B1020-B0iQNC2#200601-200809

main71149-B1030-B0iQNC2#200809-201607

71274KNOB, FRONT SEAT HINGE

main71274-B1010-A0iQNC2#200809-201112

IVORY,TRIM4#

main71274-B1010-B0iQNC2#200601-201607

DK.GRAY,TRIM1#

71430CCLIP

main90044-68028-B0iQNC2#200601-201607

DK.GRAY,TRIM1#

sub90044-68028¥200

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-B1070iQNC2#¥9,100200601-200809

main71501-B1080iQNC25¥8,400200809-201409

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-B1080iQNC2#¥6,100200601-200809

main71502-B1090iQNC25¥8,400200809-201409

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-B1030iQNC2#¥7,300200601-200704

main71505-B1031iQNC2#¥7,600200704-200809

main71505-B1051iQNC25¥8,400200809-201409

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71506-B1050iQNC2#¥7,300200601-200704

main71506-B1051iQNC2#¥7,600200704-200809

main71506-B1071iQNC25¥8,400200809-201409

71809BCOVER SUB-ASSY, FRONT SEAT ARMREST HOLDER

main71809-B1010-C0iQNC2#200601-200809

-,TRIM1#

main71809-B1100-B0iQNC2#200908-201302

OLIVEDRAB,TRIM11

main71809-B1100-C0iQNC2#200809-201607

-,TRIM1#

main71809-B1100-C0iQNC2#200908-201302

-,TRIM10

main71809-B1100-F0iQNC2#200809-201112

BEIGE,TRIM4#

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-B1030-A0iQNC2#200809-201112

IVORY,TRIM4#

sub71811-B1030¥2,420

main71811-B1030-B0iQNC2#200809-201607

DK.GRAY,TRIM1#

sub71811-B1030¥2,420

main71811-B1050-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-B1030-A0iQNC2#200809-201112

IVORY,TRIM4#

sub71812-B1030¥2,420

main71812-B1030-B0iQNC2#200809-201607

DK.GRAY,TRIM1#

sub71812-B1030¥2,420

main71812-B1070-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

71831BCOVER, FRONT SEAT HINGE, RH

main71831-B1030-B0iQNC2#200601-200809

main71831-B1041-B0iQNC2#200809-201607

71831DCOVER, FRONT SEAT HINGE, RH

main71831-B2010-B0iQNC2#200601-200704

DK.GRAY,TRIM1#

sub71831-B2010¥460

main71831-B2010-B1iQNC2#200704-200809

DK.GRAY,TRIM1#

sub71831-B2010¥460

main71831-B2010-B1iQNC2#200809-201607

DK.GRAY,TRIM1#,4#

sub71831-B2010¥460

71832BCOVER, FRONT SEAT HINGE, LH

main71832-B1030-B0iQNC2#200601-200809

main71832-B1041-B0iQNC2#200809-201607

71832DCOVER, FRONT SEAT HINGE, LH

main71832-B1050-B0iQNC2#200601-200704

DK.GRAY,TRIM1#

sub71832-B2010¥460

main71832-B2010-B1iQNC2#200809-201607

DK.GRAY,TRIM1#,4#

sub71832-B2010¥460

main71832-B2010-B1iQNC2#200704-200809

DK.GRAY,TRIM1#

sub71832-B2010¥460

71910AHEADREST ASSY, FRONT SEAT

main71910-B1080-C1iQNC2#200601-200809

-,TRIM1#

main71910-B1290-B0iQNC2#200908-201302

OLIVEDRAB,TRIM11

main71910-B1290-C0iQNC2#200809-201607

-,TRIM1#

main71910-B1290-C0iQNC2#200908-201302

-,TRIM10

main71910-B1290-F0iQNC2#200809-201112

BEIGE,TRIM4#

71910CHEADREST ASSY, FRONT SEAT

main71910-B1290-B0iQNC2#200908-201302

OLIVEDRAB,TRIM11

main71910-B1290-C0iQNC2#200809-201607

-,TRIM1#

main71910-B1290-C0iQNC2#200908-201302

-,TRIM10

main71910-B1290-F0iQNC2#200809-201112

BEIGE,TRIM4#

main71920-B1010-C1iQNC2#200601-200809

-,TRIM1#

71930CSUPPORT, FRONT SEAT HEADREST, LH

main71930-97202-A0iQNC2#200809-201112

IVORY,TRIM4#

sub71930-97202¥800

main71930-97202-C0iQNC2#200601-201607

BLACK,TRIM1#

sub71930-97202¥800

71931DSUPPORT, FRONT SEAT HEADREST, RH

main71931-97202-A0iQNC2#200809-201112

IVORY,TRIM4#

sub71931-97202¥540

main71931-97202-C0iQNC2#200601-201607

BLACK,TRIM1#

sub71931-97202¥540

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-B1010iQNC2#¥990200601-200809

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-B1010iQNC2#¥990200601-200809

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-B1010iQNC2#¥990200601-200809

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72128-B1010iQNC2#¥990200601-200809

72137BCOVER, SEAT TRACK, RH

main72137-97205iQNC25¥470200809-201409

main72137-B1010-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

72137ECOVER, SEAT TRACK, NO.1

main72265-B1020-B0iQNC2#200612-200809

72137FCOVER, SEAT TRACK, NO.2

main72265-B1020-B0iQNC2#200612-200809

72138BCOVER, SEAT TRACK, LH

main72138-B1010-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-B1020-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-B1020iQNC2#¥1,680200601-200809

main72211-B2040iQNC25¥1,860200809-201409

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-B1020iQNC2#¥1,680200601-200809

main72212-B2040iQNC20,21¥1,860200809-201409

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-B1010-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

72266COVER, SEAT TRACK UPPER RAIL, LH

main72266-B1010-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

72303ALEVER SUB-ASSY, SEAT TRACK LOCK, RH

main72303-B1010-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

72303BLEVER SUB-ASSY, SEAT TRACK LOCK, LH

main72303-B1020-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-B1010-A0iQNC2#200809-201112

IVORY,TRIM4#

sub72525-B1010¥660

main72525-B1010-B0iQNC2#200601-201607

DK.GRAY,TRIM1#

sub72525-B1010¥660

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-B1010-A0iQNC2#200809-201112

IVORY,TRIM4#

sub72526-B1010¥660

main72526-B1010-B0iQNC2#200601-200704

DK.GRAY

sub72526-B1010¥660

main72526-B1010-B0iQNC2#200704-201607

DK.GRAY,TRIM1#

sub72526-B1010¥660

72802HINGE SUB-ASSY, ARMREST CONSOLE

main72802-B1010iQNC2#¥1,080200601-201409

72809ALOCK SUB-ASSY, CENTER ARMREST

main72809-B1010iQNC2#¥1,330200601-201409

72810CARMREST ASSY, FRONT SEAT, CENTER

main72810-B1010-B0iQNC2#200601-200704

sub72810-B1011¥25,800

main72810-B1011-B0iQNC2#200704-200809

main72810-B1130-A0iQNC2#200809-201112

main72810-B1130-B0iQNC2#200908-201302

main72810-B1130-B0iQNC2#200809-201607

main72810-B1130-B1iQNC2#200908-201302

72810EBUSH, FRONT SEAT ARMREST, NO.1

main90043-86127iQNC2#¥500200601-201409

72813ABOX, FRONT SEAT CENTER ARMREST

main72813-B1010-A0iQNC2#200809-201112

IVORY,TRIM4#

main72813-B1010-B0iQNC2#200601-201607

DK.GRAY,TRIM1#

72830FLOCK SUB-ASSY, FRONT SEAT ARMREST

main72809-B1020iQNC2#¥1,330200601-201409

72832APLATE, NO.1 SEAT ARMREST

main72832-B1010-A0iQNC2#200809-201112

IVORY,TRIM4#

main72832-B1010-B0iQNC2#200601-201607

DK.GRAY,TRIM1#

72849CAP, SEAT ARMREST, NO.2

main72848-B2020-A0iQNC2#200809-201112

IVORY,TRIM4#

sub72848-B2020¥260

main72848-B2020-B2iQNC2#200601-201607

DK.GRAY,TRIM1#

sub72848-B2020¥260

72925COVER, FRONT SEAT CUSHION

main72925-B1010-B0iQNC2#200601-200809

main72925-B1020-B0iQNC2#200601-200809

main72926-B1010-B0iQNC2#200601-200809

main72926-B1020-B0iQNC2#200601-200809

74808ABOX SUB-ASSY, SEAT TRASH

main74808-B1010-A0iQNC2#200809-201112

IVORY,TRIM4#

main74808-B1010-B0iQNC2#200601-201607

DK.GRAY,TRIM1#

78632ACLIP, FRONT SEAT SIDE TABLE COVER

main90467-05020-P1iQNC2#200601-200809

DK.GRAY,TRIM1#

sub90467-05020¥100

sub90467-05027¥170

8266622150HOLDER, CONNECTOR

main82666-22150¥440

9004105424

main90041-05424¥250

9004119992

main90041-19992¥200

9004168046

main90041-68046¥220

9016440099

main90164-40099¥80

9038607031

main90386-07031¥190

9356054008

main93560-54008¥60

9356054010

main93560-54010¥70

9356054012

main93560-54012¥60

9356054014

main93560-54014¥60

9454201400

main94542-01400¥160

66 parts on this diagram · 9 diagrams in section
