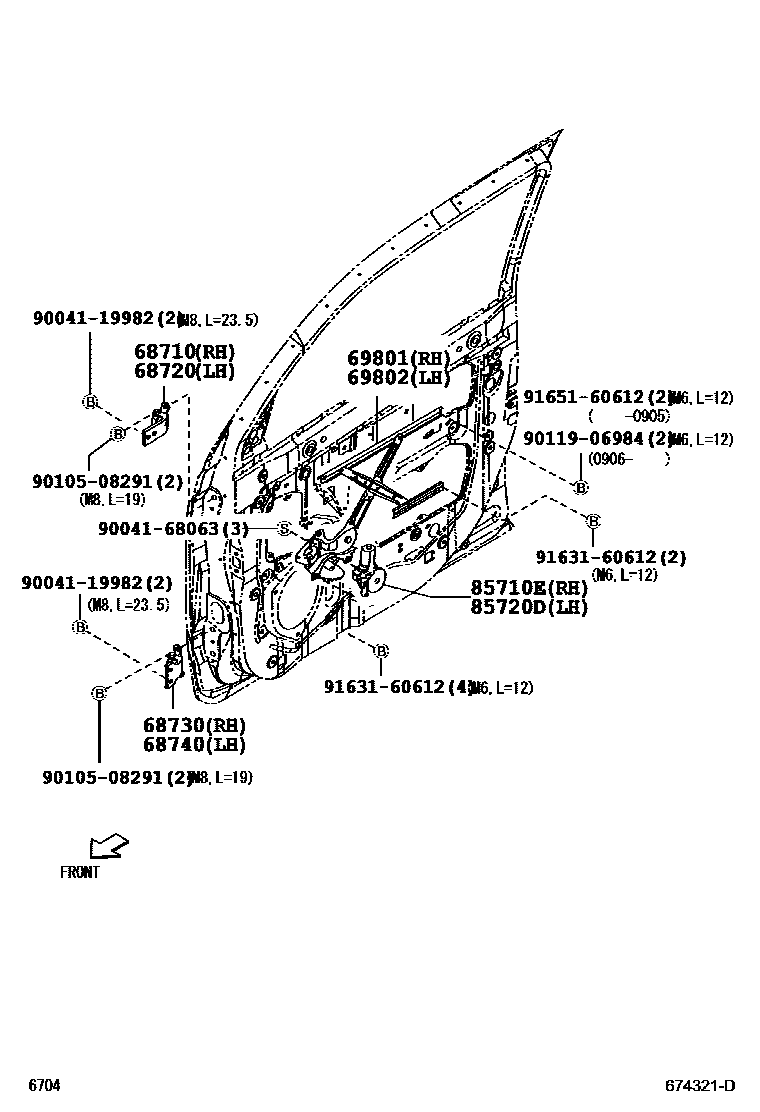

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iQNC2#200601-200609

main68710-12151iQNC2#200610-200809

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iQNC2#200601-200609

main68720-12151iQNC2#200610-200809

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68780-97204iQNC2#200601-200809

main68780-B1020iQNC2#200905-201607

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68770-97204iQNC2#200601-200809

main68770-B1020iQNC2#200905-201607

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69803-B2040iQNC2#200601-200809

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69804-B2040iQNC2#200601-200809

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-B1010iQNC2#200601-200809

main85710-B1011iQNC25201108-201409

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-B2020iQNC2#200601-200809

main85720-B2021iQNC25201111-201409

9004119982

main90041-19982

9004168063

main90041-68063

9010508291

main90105-08291

9011906984

main90119-06984

9163160612

main91631-60612

9165160612

main91651-60612

14 parts on this diagram · 1 diagram in section
