SIDE MEMBER
5202
6102
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH
61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH
61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH
61248BREINFORCEMENT, ROOF SIDE RAIL, INNER LH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
61433AREINFORCEMENT, ROCKER PANEL, OUTER RH
61434AREINFORCEMENT, ROCKER PANEL, OUTER LH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61617BPANEL, QUARTER INNER, LOWER RH
61618BPANEL, QUARTER, INNER LOWER LH
61623AEXTENSION, QUARTER PANEL, OUTER RH
61624AEXTENSION, QUARTER PANEL, OUTER LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61626GEXTENSION, QUARTER PANEL, REAR LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61637BREINFORCEMENT, REAR PILLAR, INNER UPPER RH
61638BREINFORCEMENT, REAR PILLAR, INNER UPPER LH
61645KGUSSET, QUARTER WHEEL HOUSE INNER, RH
61646FGUSSET, QUARTER WHEEL HOUSE INNER, LH
61715CBRACKET, ROOF SIDE, RH
61716CBRACKET, ROOF SIDE, LH
61725BOX, FUEL INLET
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
65638LINER, REAR WHEEL HOUSE, LH
65687ABRACKET, WHEEL HOUSE BRACE, RH
65688ABRACKET, WHEEL HOUSE BRACE, LH
9004467530
main90044-67530
9004467555
main90044-67555
9004468320
main90044-68320
9004871304
main90048-71304
9162160612
main91621-60612
91621B0816
main91621-B0816
91671A0614
main91671-A0614

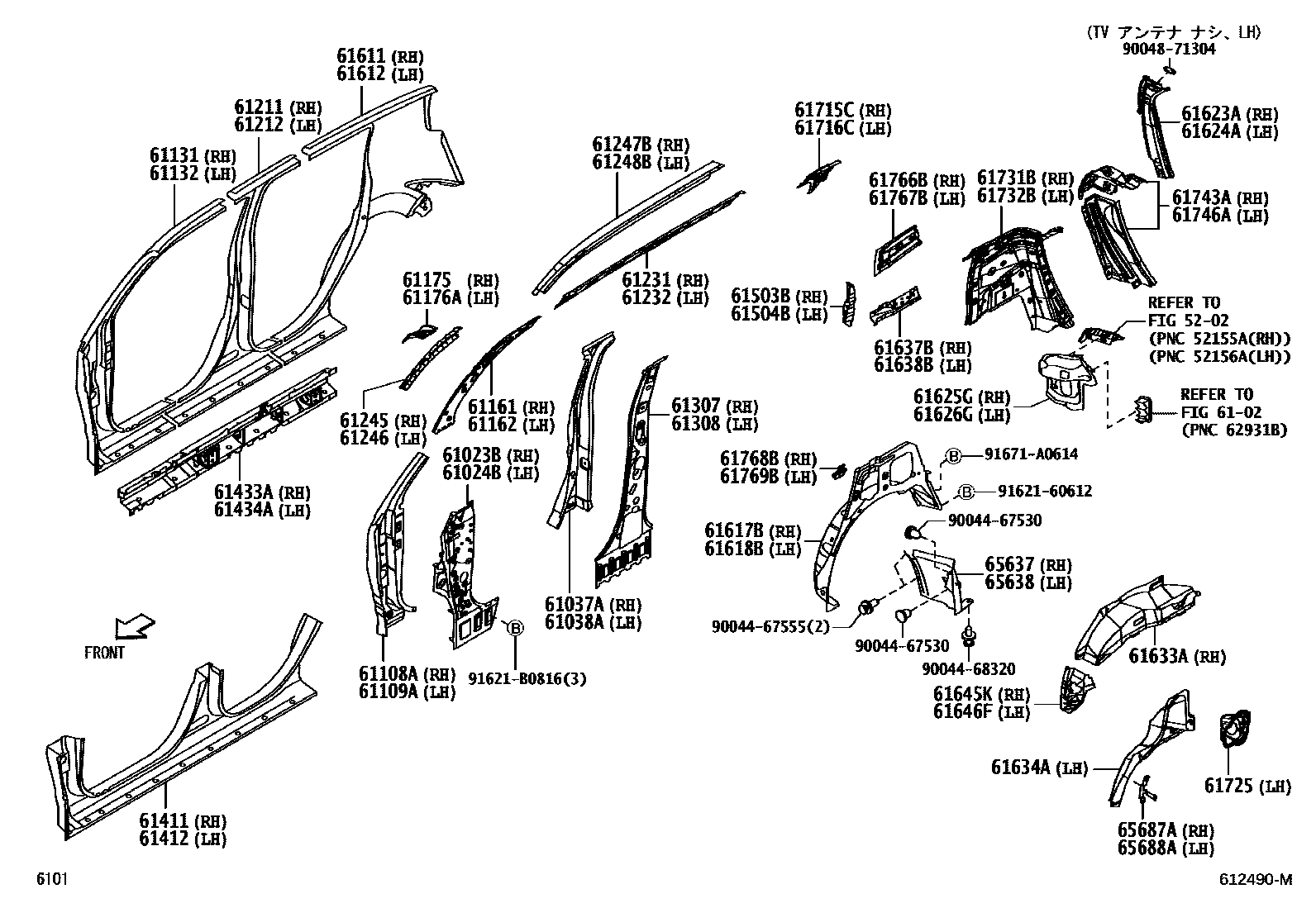

66 parts on this diagram · 3 diagrams in section
