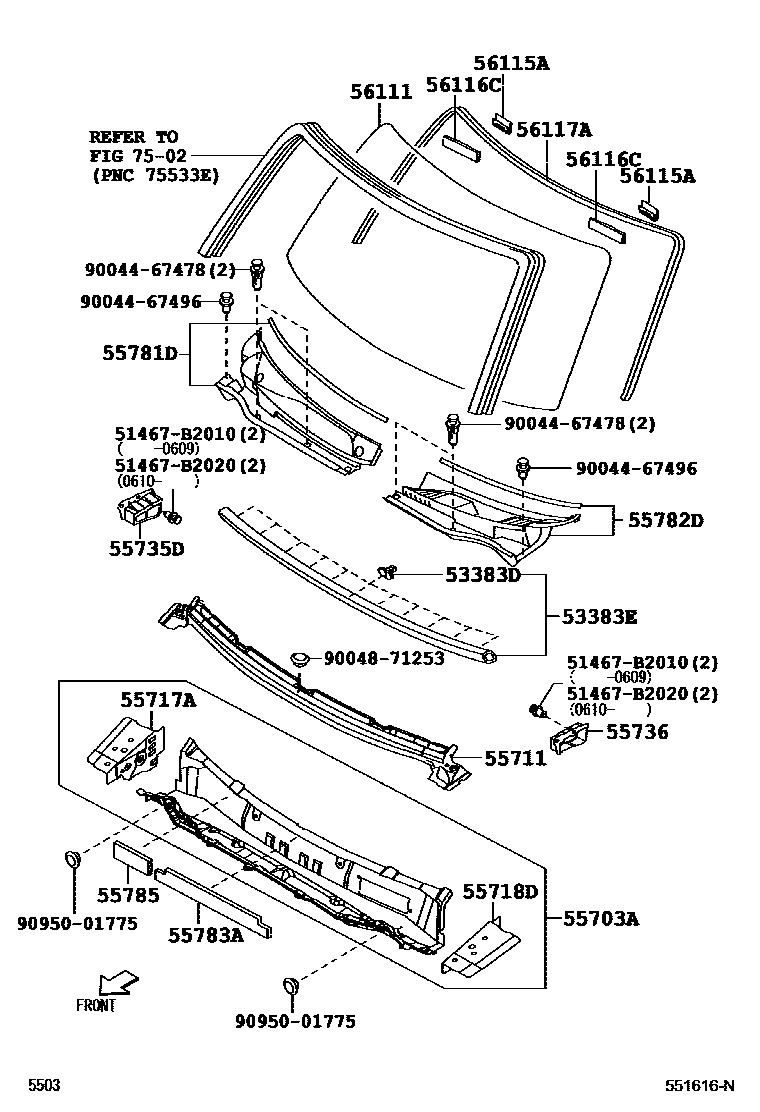

COWL PANEL & WINDSHIELD GLASS

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90044-67533iQNC2#¥200200601-201409

53383EWEATHERSTRIP, HOOD TO COWL TOP

main53383-B1020iQNC2#¥2,320200601-201409

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-B1050iQNC2#¥10,400200601-200602

sub55703-B1060¥14,000

main55703-B1060iQNC2#¥14,000200602-201607

55711PANEL, COWL TOP, OUTER

main55711-B1020iQNC2#¥7,500200601-201607

55717APANEL, COWL TOP SIDE, INNER RH

main55717-B1020iQNC20,21¥1,930200601-201409

55718DBRACKET, COWL TOP OUTER PANEL, NO.1

main55718-B1030iQNC2#¥1,930200601-201409

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-B1010iQNC2#¥1,030200601-201409

55736SEAL, WATER GUARD PLATE

main55736-B1010iQNC2#¥1,030200601-201409

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-B1030iQNC25¥5,000200901-201409

main55781-B1050iQNC2#¥3,710200601-200807

sub55781-B1051¥3,710

main55781-B1051iQNC2#¥3,710200808-200901

sub55708-B1030¥5,000

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-B1010iQNC25¥4,480200901-201409

main55782-B1050iQNC2#¥3,300200601-200807

sub55782-B1051¥3,300

main55782-B1051iQNC2#¥3,300200808-200901

sub55709-B1010¥4,480

55783APAD, COWL TOP SILENCER

main55783-B1010iQNC2#¥1,300200601-201409

55785PAD, COWL OUTER PANEL, NO.2

main55785-B1010iQNC2#¥660200601-201409

56111GLASS, WINDSHIELD

main56111-B1020iQNC2#¥0200601-201409

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-97402iQNC2#¥210200601-201409

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401iQNC2#¥210200601-201409

56117ADAM, WINDOW GLASS ADHESIVE

main56117-B1020iQNC2#¥1,580200601-201409

sub56117-B1010¥2,580

7502

51467B2010RETAINER, ENGINE UNDER COVER

main51467-B2010¥210

51467B2020RETAINER, ENGINE UNDER COVER

main51467-B2020¥210

9004467478

main90044-67478¥220

9004467496

main90044-67496¥200

9004871253

main90048-71253¥180

9095001775

main90950-01775¥130

23 parts on this diagram · 1 diagram in section
