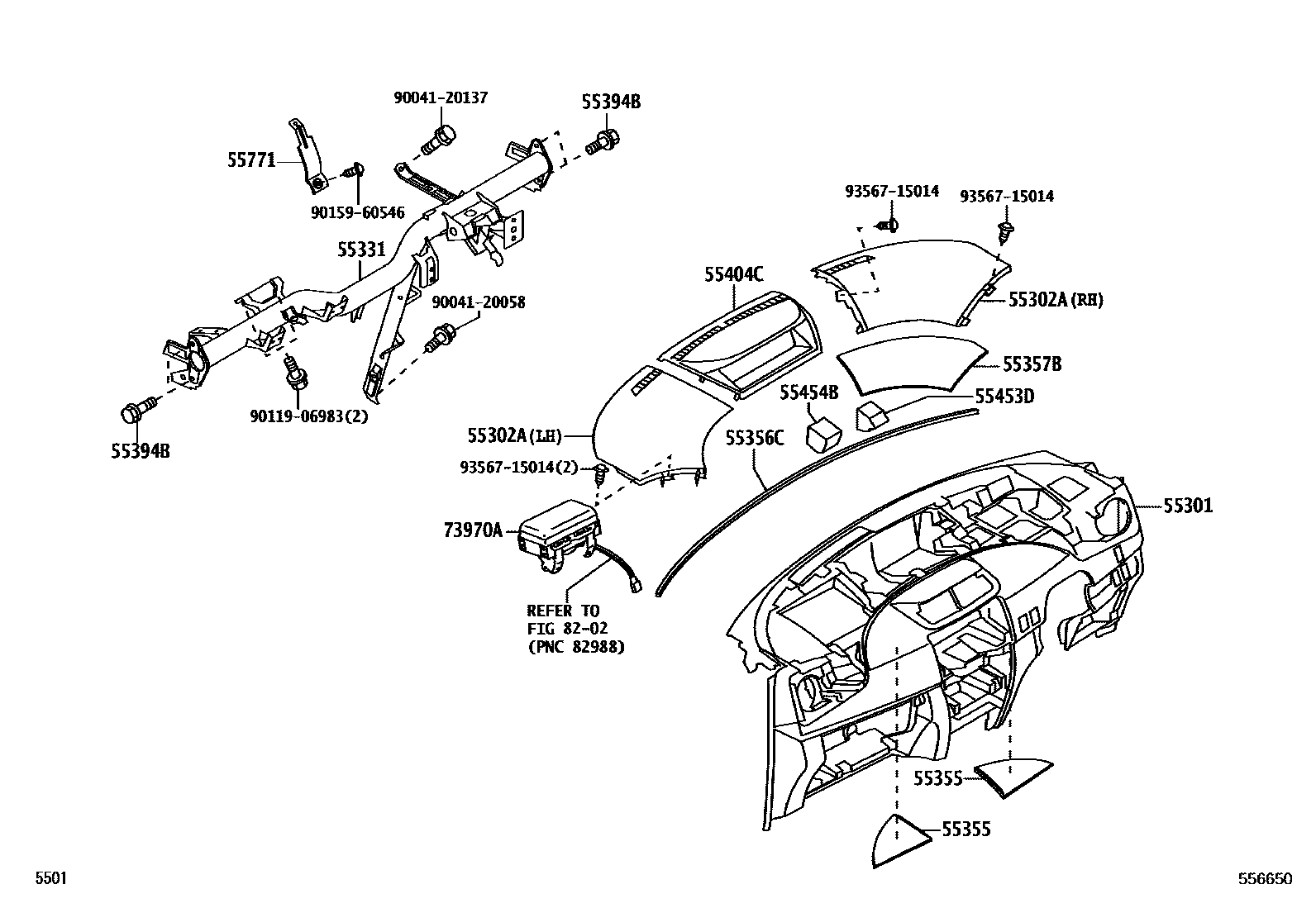

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1������������,��������� 0002 1�������� 0003 1�������� 0004 1��������

55301PANEL SUB-ASSY, INSTRUMENT

main55313-B1010-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

main55313-B1010-B0iQNC2#200809-201607

DK.GRAY,TRIM1#,4#

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-B1010-B0iQNC2#200809-201607

main55302-B1010-B0iQNC2#200601-200809

main55311-B1070-B0iQNC2#200601-200809

main55311-B1070-B0iQNC2#200809-201607

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-B1030iQNC25200601-201409

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-B1020iQNC25200601-201404

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55349-B1020iQNC20,21200601-201409

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-B1020iQNC2#200601-201409

55394BBOLT, INSTRUMENT PANEL

main55394-B1010iQNC2#200601-200808

main55394-B1020iQNC20,21200809-201409

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-B1030-B0iQNC2#200809-201607

DK.GRAY,TRIM1#,4#

main55404-B1030-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-B1030iQNC2#200601-201409

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-B1030iQNC2#200601-201409

55771BRACKET, INSTRUMENT PANEL, UPPER

main55771-B1040iQNC2#200601-201409

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-B1050iQNC2#200601-201409

8202

9004120058

main90041-20058

9004120137

main90041-20137

9011906983

main90119-06983

9015960546

main90159-60546

9356715014

main93567-15014

18 parts on this diagram · 4 diagrams in section
