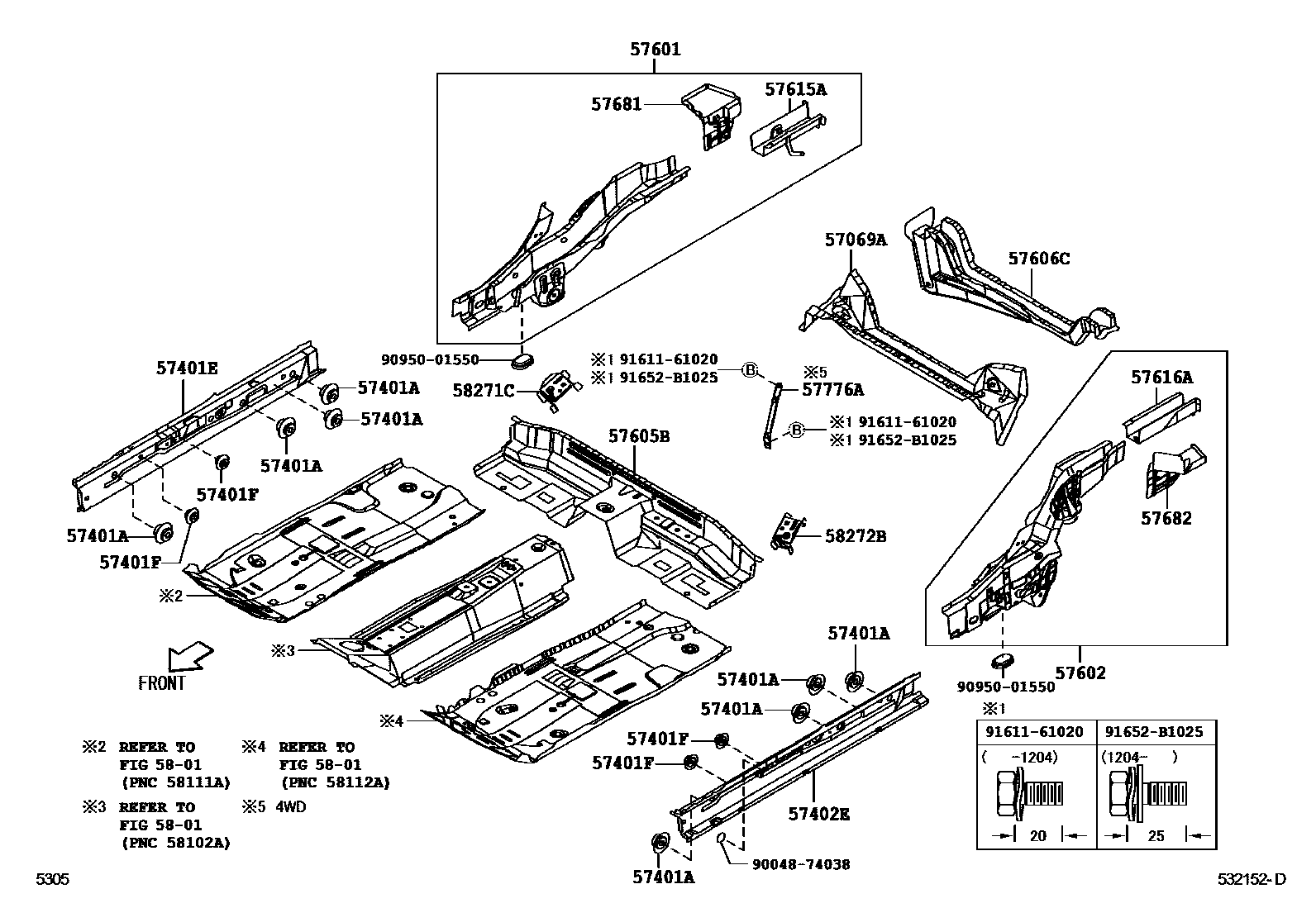

FLOOR SIDE MEMBER

57069AMEMBER, REAR FLOOR, CENTER

main57069-B1010iQNC20,21200601-200809

main57069-B1020iQNC25200601-201409

57401APLUG, HOLE(FOR MAIN FLOOR SIDE MEMBER)

main90048-71116iQNC20,21200601-201409

57401EMEMBER ASSY, FLOOR SIDE, RH

main57401-B1020iQNC2#200601-201409

57401FPLUG, HOLE

main90048-71292iQNC2#200601-201312

main90950-01955iQNC25201401-201409

57402EMEMBER ASSY, FLOOR SIDE, LH

main57402-B1020iQNC2#200601-201409

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-B1030iQNC20,21200601-200809

main57601-B1040iQNC25200601-201409

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-B1030iQNC20,21200601-200809

main57602-B1040iQNC25200601-201409

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-B1030iQNC20,21200601-201201

sub57605-B1031

main57605-B1031iQNC20,21201202

main57605-B1040iQNC25200601-201201

sub57605-B1041

main57605-B1041iQNC25201202-201409

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-B1011iQNC25200601-201409

main57606-B1021iQNC20,21200601-200809

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57033-B1010iQNC20,21200601-200809

main57033-B1030iQNC25200601-201409

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57034-B1020iQNC20,21200601-200809

main57034-B1030iQNC25200601-201409

57681BRACKET, REAR SHOCK ABSORBER, RH

main61063-B1010iQNC2#200601-201409

57682BRACKET, REAR SHOCK ABSORBER, LH

main61064-B1010iQNC2#200601-201409

57776ABRACE, REAR LOWER ARM BRACKET

main57776-B2010iQNC25200601-201409

5801

58271CREINFORCEMENT, BELT ANCHOR TO FROOR PAN, NO.3

main58298-B1010iQNC2#200601-201409

58272BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4

main58299-B1010iQNC2#200601-201409

9004874038

main90048-74038

9095001550

main90950-01550

9161161020

main91611-61020

91652B1025

main91652-B1025

21 parts on this diagram · 1 diagram in section
